Chapter 6: Maintaining the Ductless Enclosure
Product Service 1-800-522-7658
45
Figure 6-1
Light Replacement
Fluorescent Light Replacement
1. Disconnect the power.

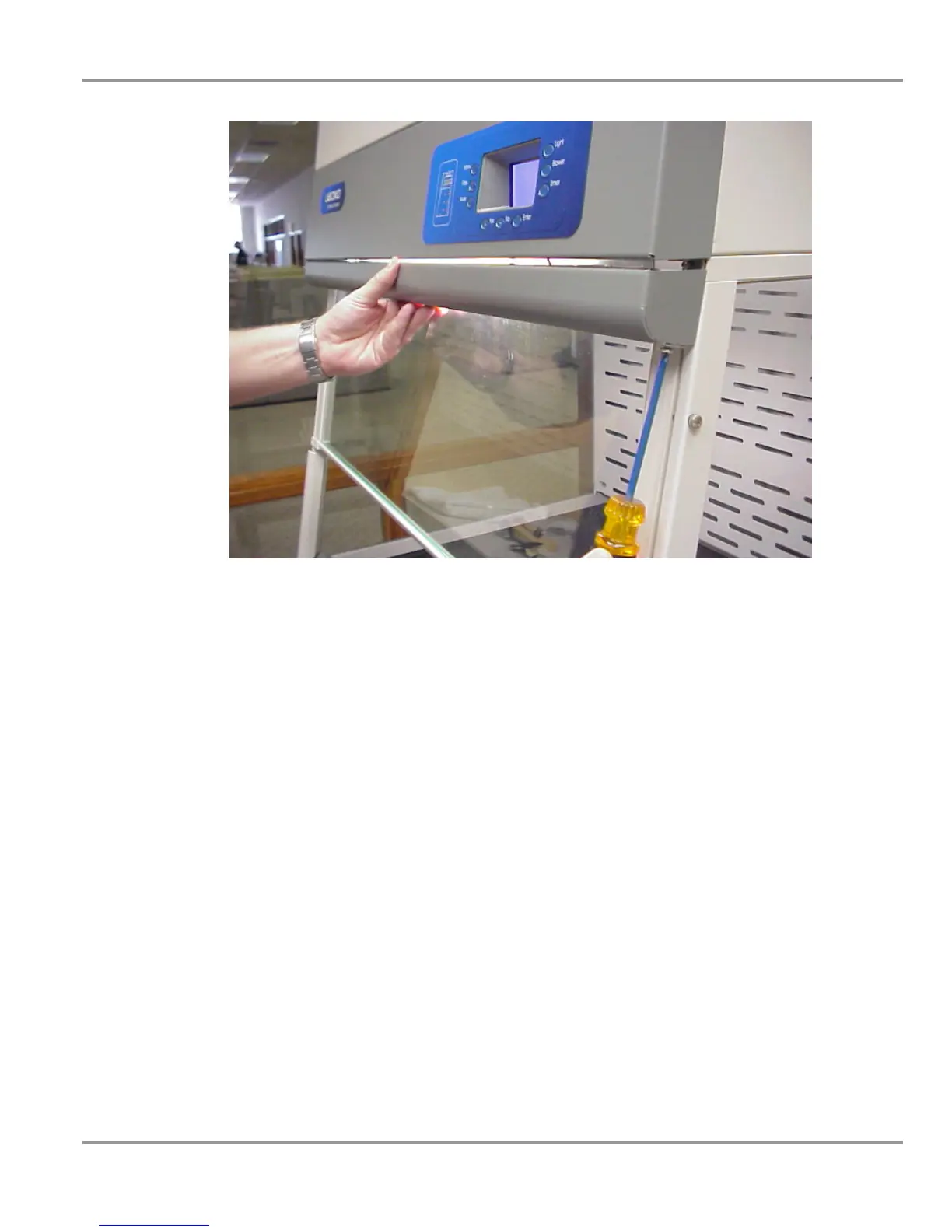

2. Locate the small light reflector located under the control panel shown
in Figure 6-1.
3. Remove the light reflector by removing two Phillips screws on the
bottom of the light reflector.
4. Remove the old fluorescent lamp from the light sockets and metal
support clips as shown in Figure 6-2.
5. Reinstall the new fluorescent lamp and light reflector in reverse order.
6. Power the unit up and try the new fluorescent lamp.
To Next Page
