Puridest Mono Distillation Apparatus
6 Water Connections
All water connections of the Distillation Apparatus, with the exception of the distillate withdrawal at the front, are located
at the right-hand side of the unit. Hoses for water inlet and outlet are not included in the standard scope of supply.

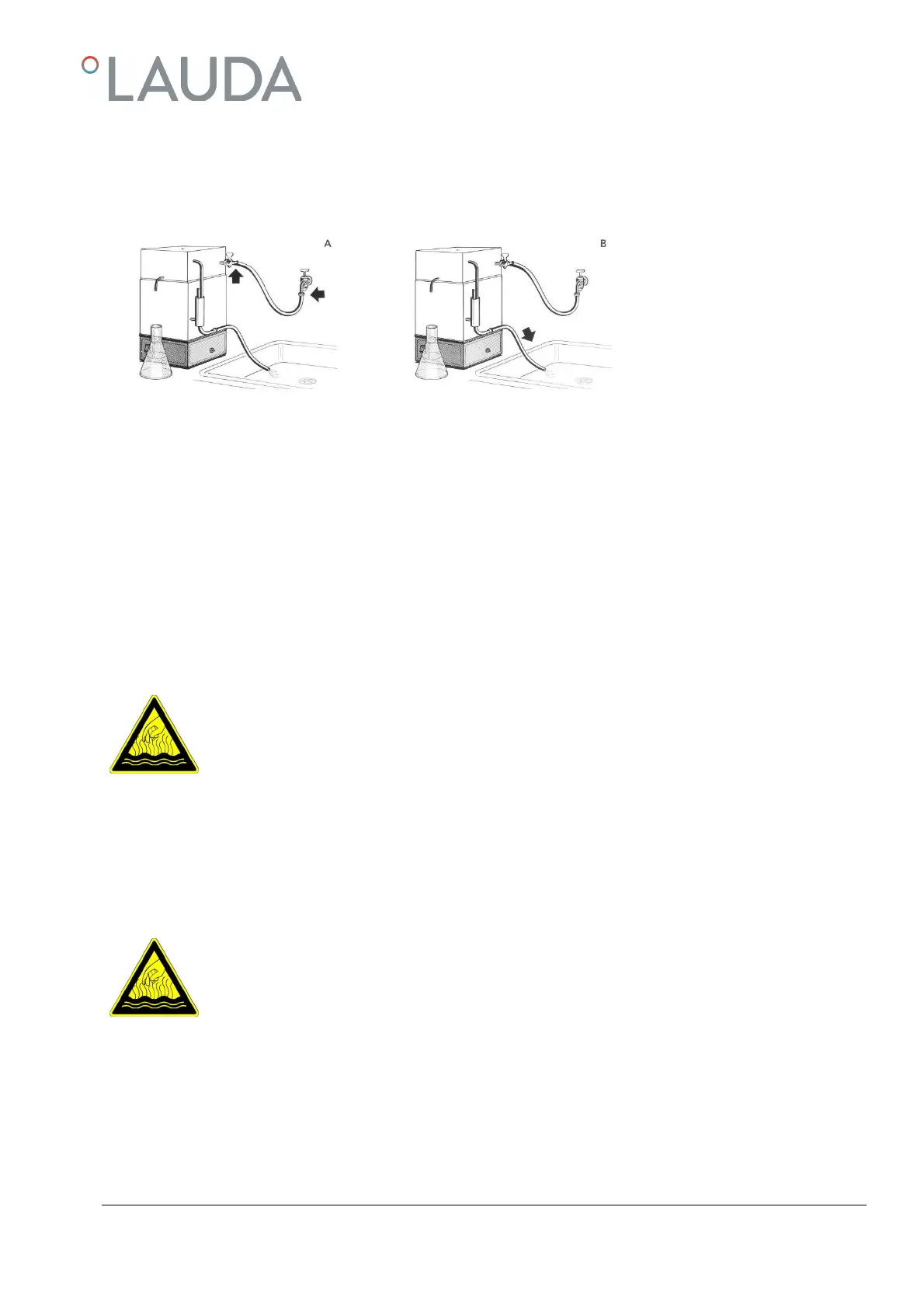

Tap water inlet (ill. A)
6.1
Water is fed to the Distillation Apparatus through the tap water inlet. Connect a ½" pressure hose between the tap for
cooling water inlet and an on-site manual stop valve of the mains water supply. Make sure to secure both hose connections
with hose clips!
Cooling water outlet (ill. B)
6.2
Connect a ½" temperature-resistant hose with a maximum length of 1.5 m to the cooling water outlet. The hose must
lead into a drain on a lower level and must have a slope on its complete length. Make sure the cooling water can drain with-
out back draughts.
Caution:
The cooling water leaves the Distillation Apparatus with a temperature up to 70 °C.
Danger of scaldings!
Destillate Outlet
6.3
Use a temperature-resistant hose (not depicted) to connect the distillate outlet tube on the front of the condenser with a
storage tank (to be provided on-site). When choosing the storage tank, observe the special storage conditions for distilled
water according to your requirements as well as the high temperature of freshly produced distillate.
Caution:
Distilled water leaves the Distillation Apparatus with a temperature up to 100 °C.
Danger of scaldings!
