KNOW YOUR GRASS TRIMMER
The safe use of this product requires an understanding of the information on the product and in this
Operator’s Manual as well as knowledge of the project you are attempting. Before use of this
product, familiarize yourself with all operating features and safety rules.
Components
1. Primer Bulb
2. Air Filter Knob
3. Choke Lever
4. Spark Plug Cover
5. Fuel Tank Cap
6. Fuel Tank
7. Main Handle
8. Stop Switch
9. Battery Release Button
10. Battery Slot
11. Shaft
12. Debris Guard
13. Trimming Line Cutting Blade
14. Trimmer Head W / Line Spool
15. Trimming Line
16. Trimmer Head Cover
17. Gear Box Housing
18. Debris Guard Mounting Bracket
19. Assist Handle
20. Start Button
21. Battery Indicator
22. Throttle Safety
23. Engine Housing
24. Start Button Cover
25. Assist Handle Anti-vibration Ball
26. Assist Handle Cam Lock
27. Throttle Lever
28. Muffler
29. Rear Cover Housing
30. Charging Port

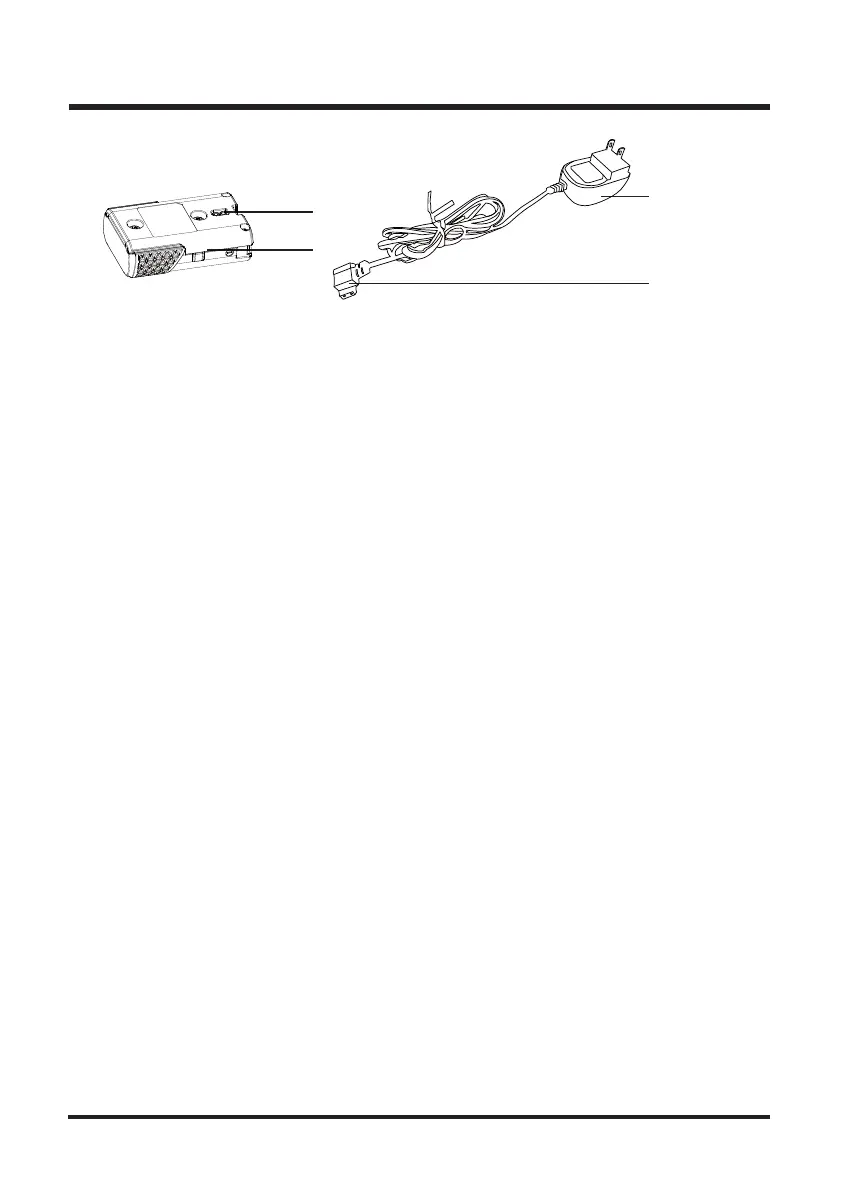

31. Battery Pack
32. Charger
33. Charging Connector
30
31
32
33
10
