Leica APO-TELEVID 82 User Manual

EN
13
DESIGNATION OF PARTS
1. Eyepiece with
a.Rotating eyepiece cup
b.Index for attaching
c. Bayonet
2. Bayonet with
a.Index for attaching
b.Locking catch
c.Thread for photo adapter
3. Eyepiece release button
4. Dual focusing roller for
a.Rough focusing
b.Fine adjustment
5. Tripod plate with
a. Rotating collar
b. Fixing screw
c. 1/4“ thread
6. Extendable lens hood with
a. Sight
7. Lens

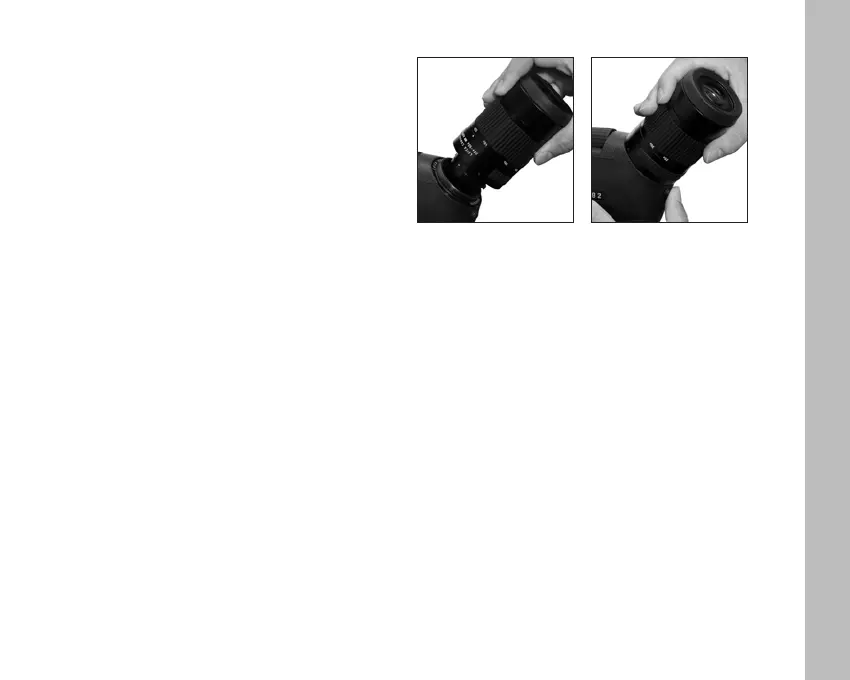

ATTACHING / REMOVING THE EYEPIECE
A Leica Apo-Televid consists of the spotting scope body
and an eyepiece. To attach one of these eyepieces to
the spotting scope, the red mark (1b) on the bayonet
side of the eyepiece must first be aligned opposite the
point (2a) on the spotting scope bayonet (2). In this
position, the eyepiece is then inserted straight and
pressed down. A short turn to the right (clockwise) lets
the eyepiece engage and lock. To remove it, press
the release button (3) on the underside of the spotting
scope body. The eyepiece can then be turned to the left
(anticlockwise) and pulled straight out.
