General
The 13ACD air conditioner, which will also be referred
to in this instruction as the outdoor unit, uses HCFC-22
refrigerant. This outdoor unit is intended as a replacement
outdoor component for use in residential systems which
include an existing indoor coil which is functioning properly.
It is NOT intended for new installations.
This outdoor unit is:
• shipped from the factory with nitrogen holding charge
that must be purged from the unit;
SUCTION AND LIQUID LINE
CONNECTIONS
SIDE VIEW
OUTDOOR COIL FAN
A
B
A
OPTIONAL UNIT STAND‐OFF KIT
(4) (FIELD-INSTALLED)
Discharge Air
SIDE VIEW
COMPRESSOR
• designed for use with HCFC-22 refrigerant only;
• designed for use in systems that use either a RFC
device (orice) included with outdoor unit or thermal
expansion valve (TXV). See the 13ACD product
specication sheet for approved xed orice sizes and
expansion valve kit match ups.
Important — The air conditioning unit must have properly
matched system components including indoor unit and
refrigerant metering device. Mismatched equipment may
have an impact on the operation, performance, reliability,
and warranty of the air conditioning unit.
Model A B
13ACD-018-230 24-1/4 (616) 25-1/4 (641)
13ACD-024-230 24-1/4 (616) 25-1/4 (641)
13ACD-030-230 24-1/4 (616) 33-1/4 (845)
13ACD-036-230 24-1/4 (616) 33-1/4 (845)
13ACD-042-230 28-1/4 (718) 29-1/4 (743)
13ACD-048-230 28-1/4 (718) 37-1/4 (946)
13ACD-060-230 28-1/4 (718) 33-1/4 (845)
Unit Dimensions - inches (mm)

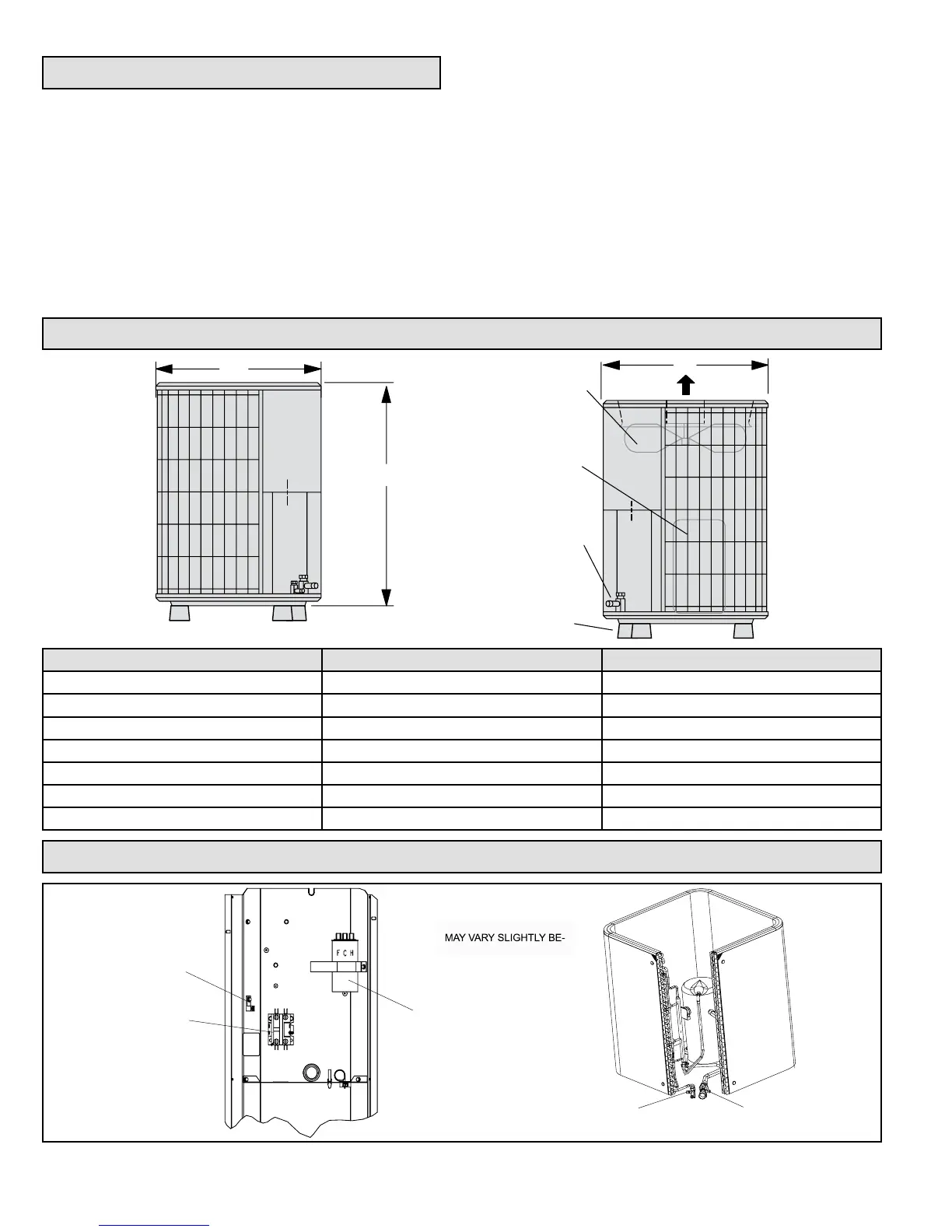

Parts Arrangement
GROUND LUG
CONTROL BOX
SINGLE -POLE
CONTACTOR (K1)
LIQUID LINE
SERVICE VALVE
SUCTION LINE
SERVICE VALVE
DUAL RUN
CAPACITOR (C12)
NOTE: PLUMBING LAYOUT
TWEEN MODEL SIZES.
Figure 1. Typical Unit Parts Arrangement
