• 9 •
5 m
BALTIC-IOM-0412-E / Installation manual

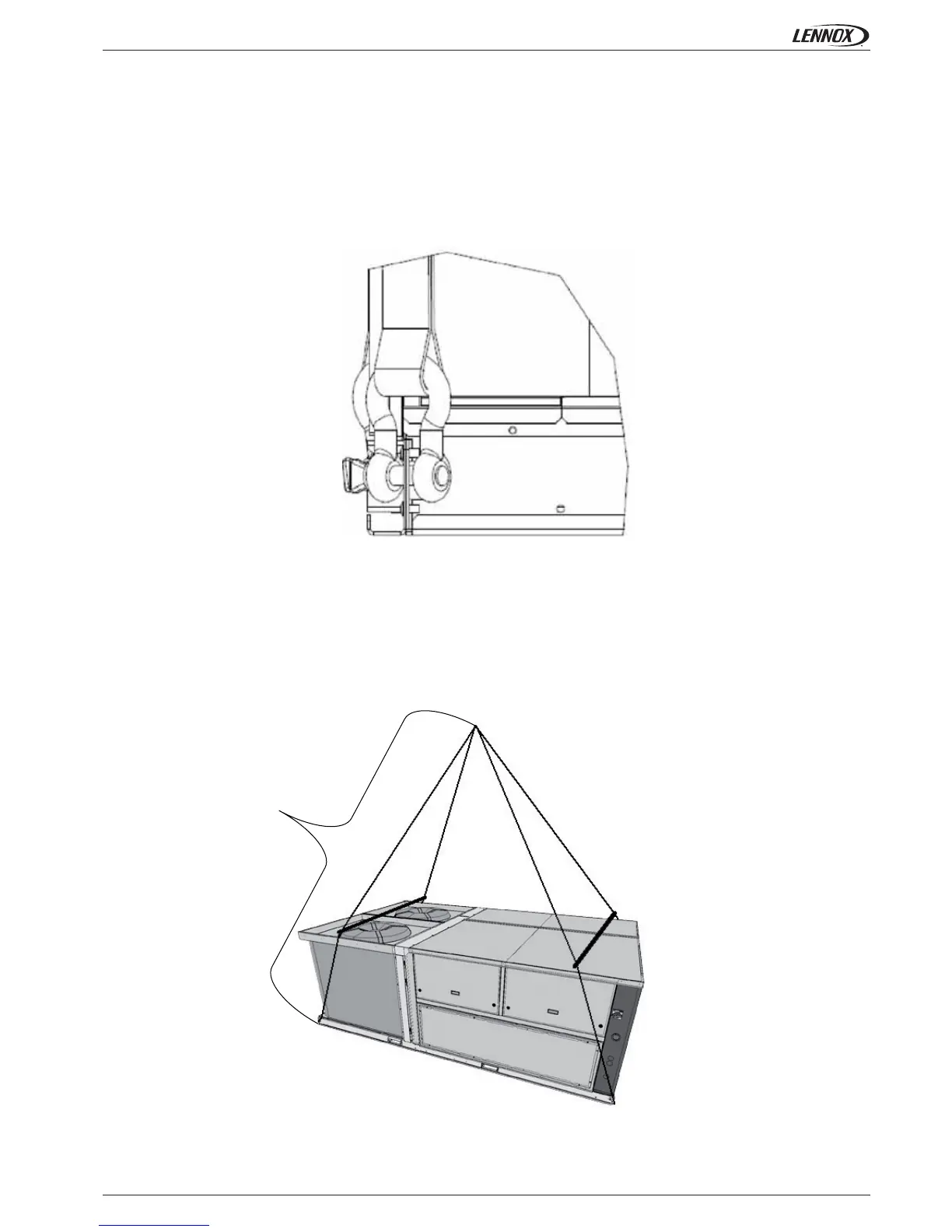

LIFTING THE UNITS
Lifting the unit with a crane
Lifting lug dimensions
Use lifting shackles located on each angle of the unit. Maximum diameter of the ring shaft = 20 mm.
Lifting belts length
The unit must be lifted using spacing beams to avoid the belts damages to the casing.
Spacing beams must have a length equal to the machine width – i.e 2250 mm.
