Page 65
CBX32MV
J48 5 Pin Line V
oltage Connector
J49 4 Pin Control Connector
P48 5 Pin
P49 4 Pin
P48 (5-PIN)
P49 (4-PIN)
CONTROL MODULE
MOTOR

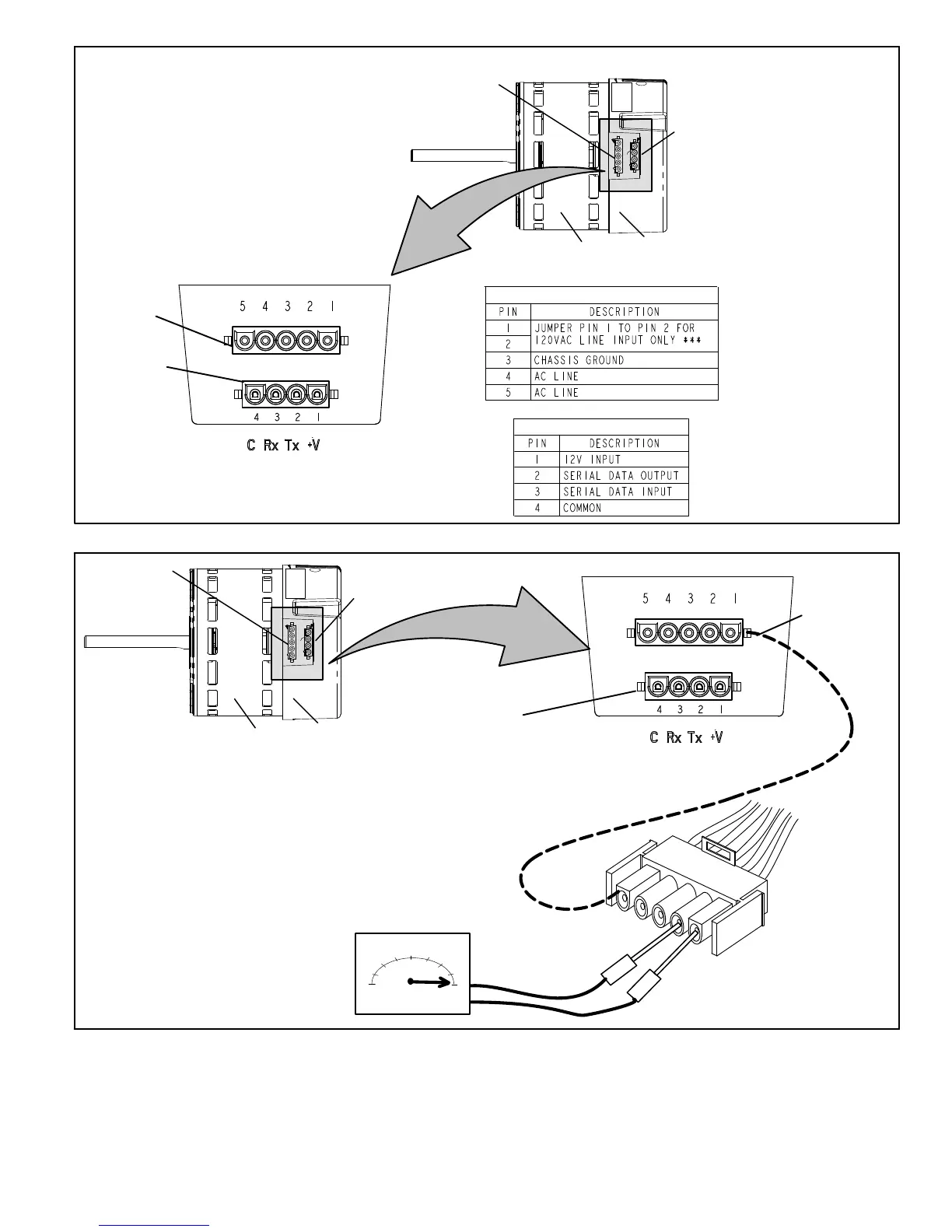

Figure 35. Indoor Blower Motor (B3) Control Connections (Emerson)
P49 4 Pin
P48 (5-PIN)
HARNESS
P49 (4-PIN) HARNESS
CONTROL MODULE
MOTOR
120v
0
230v
5
4
3
2
1
J48 Connector
P48 (5-PIN)
HARNESS
Figure 36. J48 T
est (Emerson)
64
66
