Page 2
ELECTRICAL INLETS
SIDE VIEW
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
4-1/2”
(108)
4-3/4”
(121)
TOP VIEW
A
B
C
Model
EL17XC1 Dimensions – in. (mm)
A B C D E F G H J K
EL17XC1-018-230A 31 (787) 30.5 (775) 35 (889) 13.88 (352) 7.75 (197) 3.25 (83) 27.13 (689) 3.63 (92) 4.5 (114) 20.63 (524)
EL17XC1-024-230A 39 (991) 30.5 (775) 35 (889) 13.88 (352) 7.75 (197) 3.25 (83) 27.13 (689) 3.63 (92) 4.5 (114) 20.63 (524)
EL17XC1-030-230A 31 (787) 30.5 (775) 35 (889) 13.88 (352) 7.75 (197) 3.25 (83) 27.13 (689) 3.63 (92) 4.5 (114) 20.63 (524)
EL17XC1-036-230A 39 (991) 30.5 (775) 35 (889) 13.88 (352) 7.75 (197) 3.25 (83) 27.13 (689) 3.63 (92) 4.5 (114) 20.63 (524)
EL17XC1-041-230A 35 (889) 35.5 (902) 39.5 (1003) 16.88 (429) 8.75 (222) 3.13 (79) 30.75 (781) 4.63 (117) 3.75 (95) 26.88 (683)
EL17XC1-042-230A 35 (889) 35.5 (902) 39.5 (1003) 16.88 (429) 8.75 (222) 3.13 (79) 30.75 (781) 4.63 (117) 3.75 (95) 26.88 (683)
EL17XC1-047-230A 35 (889) 35.5 (902) 39.5 (1003) 16.88 (429) 8.75 (222) 3.13 (79) 30.75 (781) 4.63 (117) 3.75 (95) 26.88 (683)
EL17XC1-048-230A 45 (1143) 30.5 (775) 35 (889) 13.88 (352) 7.75 (197) 3.25 (83) 27.13 (689) 3.63 (92) 4.5 (114) 20.63 (524)
EL17XC1-060-230A 45 (1143) 35.5 (902) 39.5 (1003) 16.88 (429) 8.75 (222) 3.13 (79) 30.75 (781) 4.63 (117) 3.75 (95) 26.88 (683)
D
G
K
J
E
F
UNIT SUPPORT
FEET
H

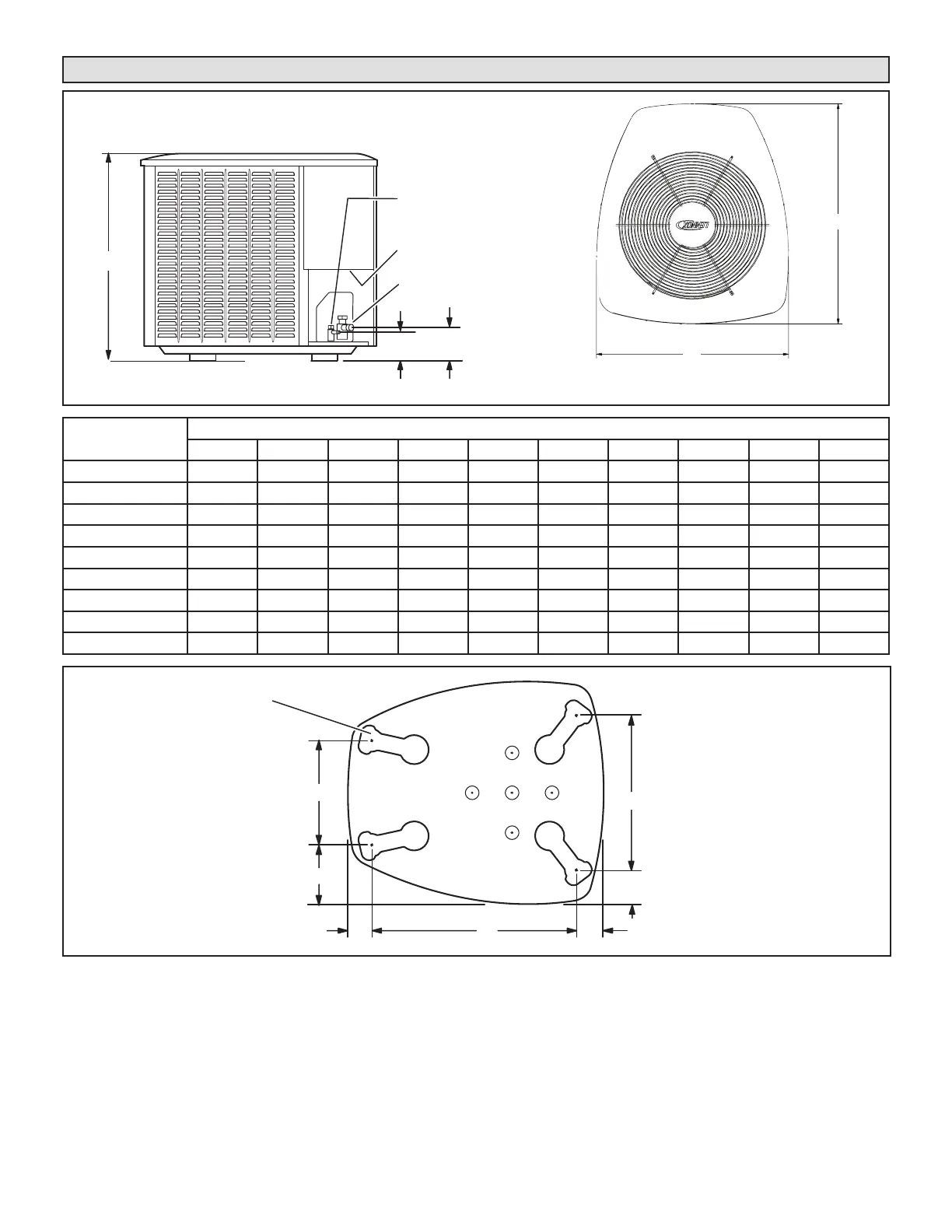

UNIT DIMENSIONS – INCHES (MM)
