Lennox Elite series User Manual

31
36
38
39
40
41
43
44
45
46
47
48
49
50
51
52
57
35
33
34
53
54
55
56
42
37

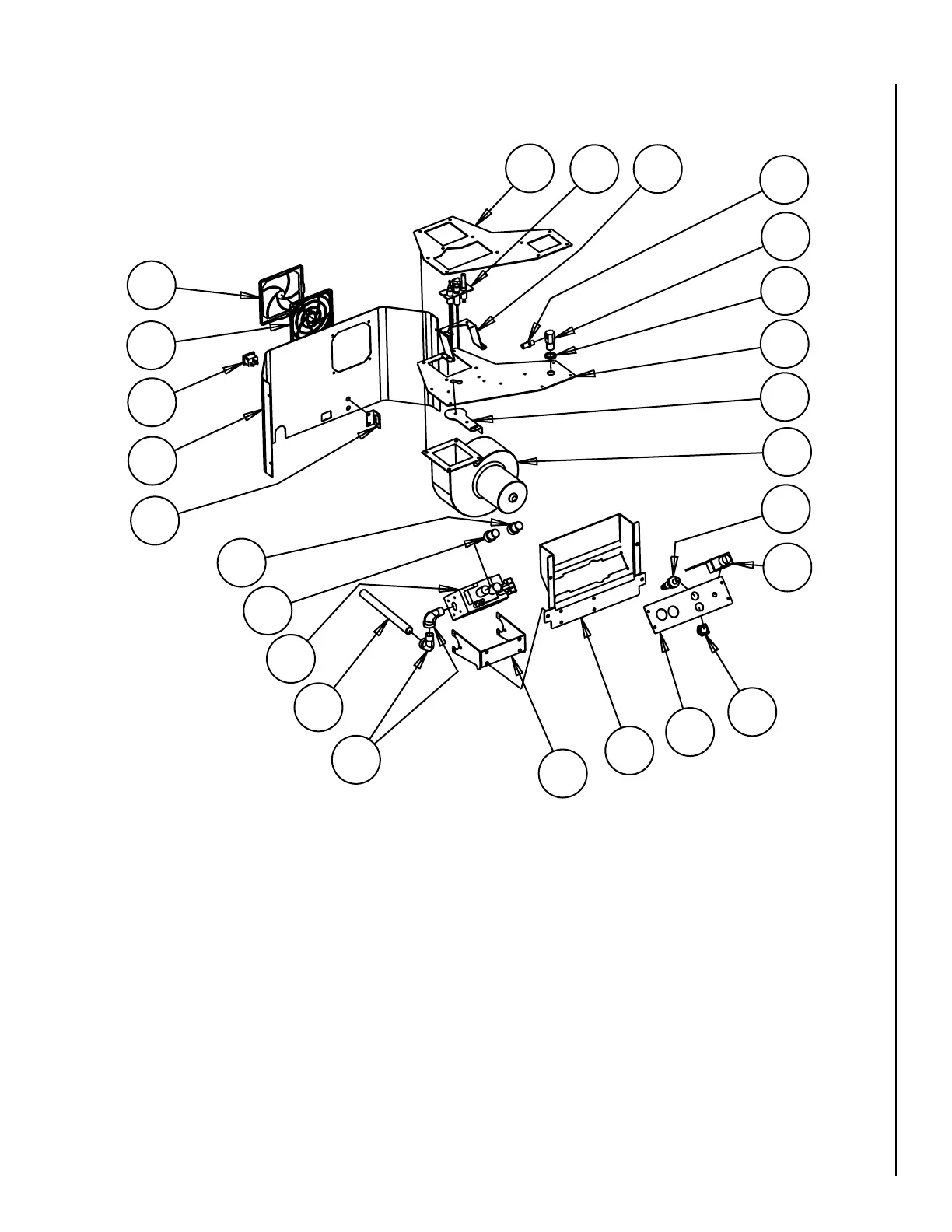

NO. DESCRIPTION
33 FLAME CONTROL EXTENSION
34 PILOT CONTROL EXTENSION
35 VALVE ASSY.
36 BLACK IRON PIPE
37 STREET ELBOW
38 BRACKET, VALVE
39 CONTROL PANEL
40 DASHBOARD
41 ON/OFF SWITCH
42 RHEOSTAT
43 PIEZO IGNITER
NO. DESCRIPTION
44 BLOWER
45 SLIDER WASHER
46 CASSETTE PLATE
47 BULKHEAD SPACER
48 FITTING BULKHEAD
49 ORIFICE
50 PILOT ASSEMBLY BRACKET
51 PILOT ASSEMBLY
52 CASSETTE GASKET
53 FAN GRILL COVER
54 FAN GRILL MOUNT
NO. DESCRIPTION
55 AC POWER PLUG
56 PEDESTAL BACK
57 THERMO. OUTLET BRACKET
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
