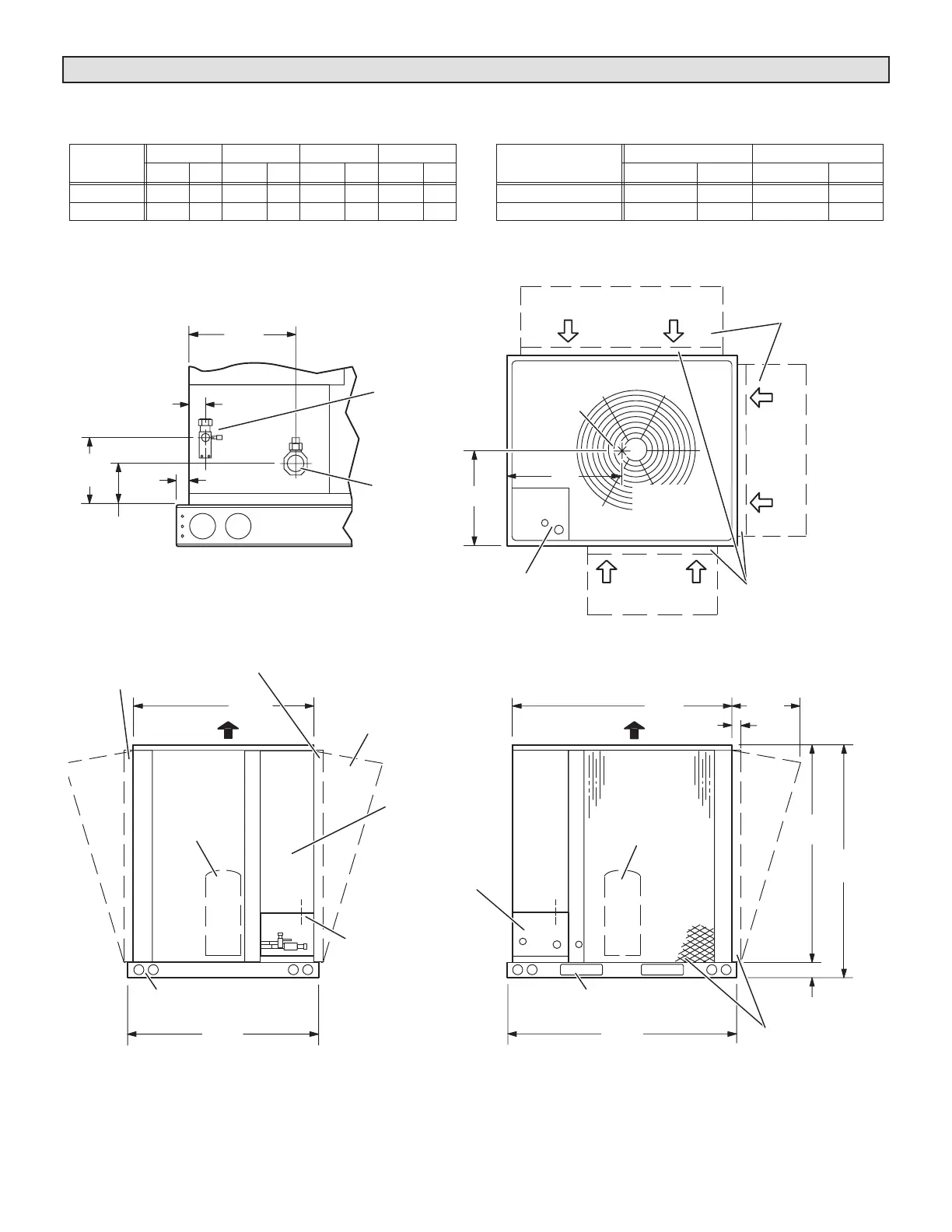

Unit Dimensions, Corner Weights and Centers of Gravity
ELS072S4S AND ELS090S4S
Corner Weights
Model No.
AA BB CC DD
lbs. kg lbs. kg lbs. kg lbs. kg
ELS072S4S
66
30 73 33 97 44 82 37
ELS090S4S 75 34 89 40 112 51 88 40
Centers of Gravity
Model No.
EE FF
inch mm inch mm
ELS072S4S 23.2 589.3 19.2 487.7
ELS090S4S 25 635 20.3 515.6
INCHES (MM)
(Not used with Hail Guard)
OPTIONAL COIL GUARD
(Field Installed All Coil Sides)
(Not used with Hail Guard)
DISCHARGE
AIR
48−3/8
(1229)
46−1/8
(1172)
39−7/8
(1013)
9−1/8
(232)
1−1/8
(29)
2−1/8
(54)
SUCTION
LINE
LIQUID
LINE
BBAA
CC
DD
37−5/8
(956)
48−3/4
(1238)
3−1/2
(89)
45−1/4
(1149)
REFRIGERANT
LINE CONNECTIONS
SEE DETAIL
REFRIGERANT LINE
CONNECTIONS DETAIL
EE
FF
CONTROL
BOX ACCESS
COMPRESSOR
COMPRESSOR
CENTER OF
GRAVITY
INLET AIR
INLET AIR
DISCHARGE
AIR
BASE
LIFTING HOLES
(For Rigging)
FORKLIFT SLOTS
(Both Sides)
TOP VIEW
WEIVEDISWEIVTNORF
OUTDOOR
FAN GUARD
1−1/8
(29)
BASE
ELECTRICAL
INLETS (Above
Refrigerant Lines)
INLET AIR
5
(127)
ELECTRICAL
INLETS (Above
Refrigerant Lines)
11−1/4
(286)
2 (51)
OPTIONAL HAIL GUARD
(Field Installed All Coil Sides)
(Not used with Coil Guard)
OPTIONAL
HAIL GUARD
(Field Installed
All Coil Sides)
(Not used with
Coil Guard)
OPTIONAL
COIL GUARD
(Field Installed All Coil Sides)
OPTIONAL
COIL GUARD
(Field Installed All Coil Sides)
(Not used with Hail Guard)
