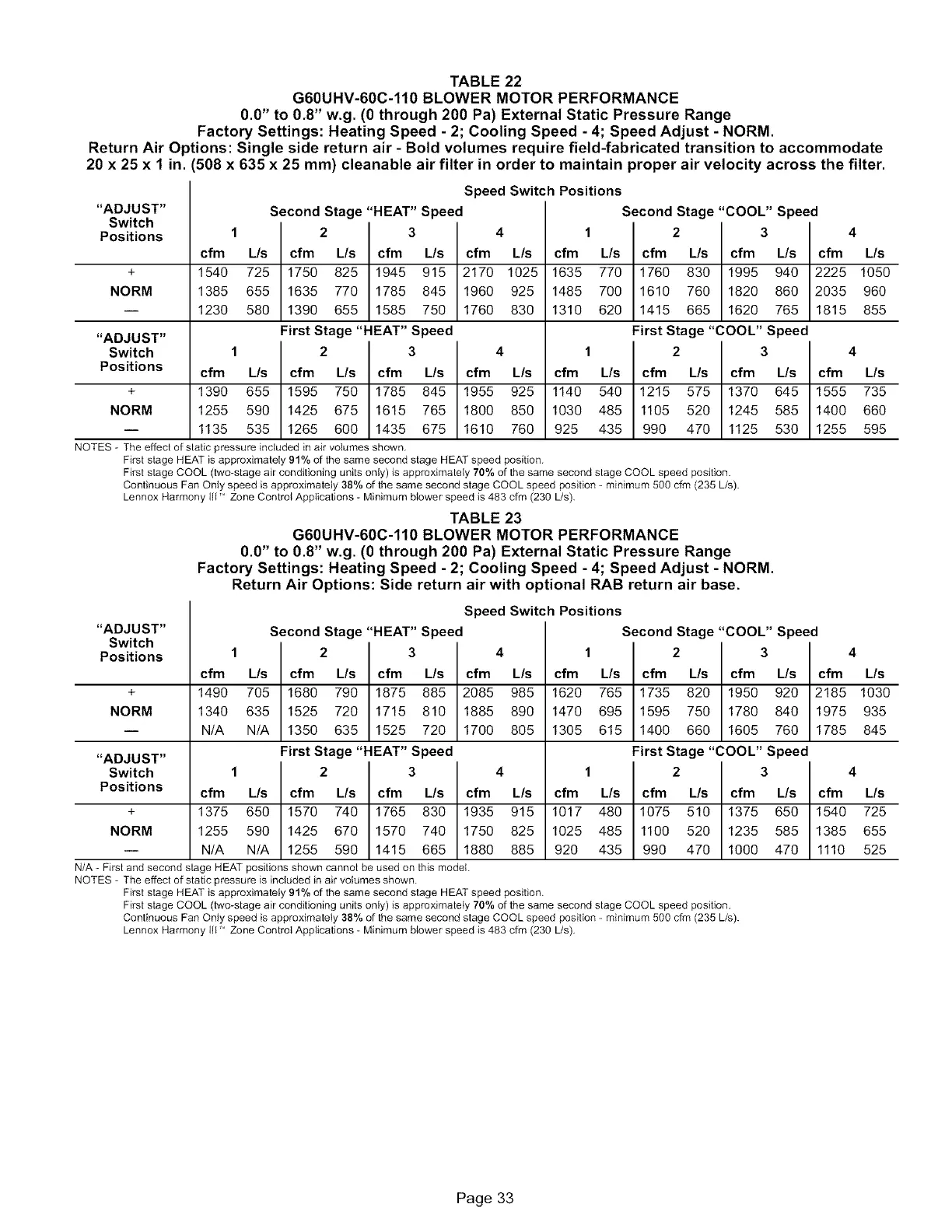

TABLE 22
G60UHV-60C-110 BLOWER MOTOR PERFORMANCE
0.0" to 0.8" w.g. (0 through 200 Pa) External Static Pressure Range
Factory Settings: Heating Speed - 2; Cooling Speed - 4; Speed Adjust - NORM.
Return Air O _tions: Single side return air - Bold volumes require field-fabricated transition to accommodate
20 x 25 x 1 in. 508 x 635 x 25 mm) cleanable air filter in order to maintain proper air velocity across the filter.
Speed Switch Positions
"ADJUST" Second Stage "HEAT" Speed Second Stage "COOL" Speed
Switch
Positions 1 2 3 4 1 2 3
cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s
+ 1540 725 1750 825 1945 915 2170 1025 1635 770 1760 830 1995 940
NORM 1385 655 1635 770 1785 845 1960 925 1485 700 1610 760 1820 860
i 1230 580 1390 655 1585 750 1760 830 1310 620 1415 665 1620 765
"ADJUST" First Stage "HEAT" Speed First Stage "COOL" Speed
Switch 1 2 3 4 1 2 3 4
Positions cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s
+ 1390 655 1595 750 1785 845 1955 925 1140 540 1215 575 1370 645 1555 735
NORM 1255 590 1425 675 1615 765 1800 850 1030 485 1105 520 1245 585 1400 660
i 1135 535 1265 600 1435 675 1610 760 925 435 990 470 1125 530 1255 595
NOTES - The effect of static pressure included in air volumes shown.
First stage HEAT is approximately 91% of the same second stage HEAT speed position.
First stage COOL (two-stage air conditioning units only) is approximately 70% of the same second stage COOL speed position.
Continuous Fan Only speed is approximately 38% of the same second stage COOL speed position - minimum 500 cfm (235 L/s).
Lennox Harmony Ill" Zone Control Applications - Minimum blower speed is 483 cfm (230 L/s).
TABLE 23
G60UHV-60C-110 BLOWER MOTOR PERFORMANCE
0.0" to 0.8" w.g. (0 through 200 Pa) External Static Pressure Range
Factory Settings: Heating Speed - 2; Cooling Speed - 4; Speed Adjust - NORM.
Return Air Options: Side return air with optional RAB return air base.
4
cfm L/s
2225 1050
2035 960
1815 855
"ADJUST"
Switch
Positions
Speed Switch Positions
Second Stage "HEAT" Speed Second Stage "COOL" Speed
1 2 3 4 1 2 3 4
cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s
+ 1490 705 1680 790 1875 885 2085 985 1620 765 1735 820 1950 920 2185 1030
NORM 1340 635 1525 720 1715 810 1885 890 1470 695 1595 750 1780 840 1975 935
i N/A N/A 1350 635 1525 720 1700 805 1305 615 1400 660 1605 760 1785 845
"ADJUST" First Stage "HEAT" Speed First Stage "COOL" Speed
Switch 1 2 3 4 1 2 3 4
Positions cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s
+ 1375 650 1570 740 1765 830 1935 915 1017 480 1075 510 1375 650 1540 725
NORM 1255 590 1425 870 1570 740 1750 825 1025 485 1100 520 1235 585 1385 855
-- N/A N/A 1255 590 1415 665 1880 885 920 435 990 470 1000 470 1110 525
N/A - First and second stage HEAT positions shown cannot be used on this model.
NOTES - The effect of static pressure is included in air volumes shown.
First stage HEAT is approximately 91% of the same second stage HEAT speed position.
First stage COOL (two-stage air conditioning units only) is approximately 70% of the same second stage COOL speed position.
Continuous Fan Only speed is approximately 38% of the same second stage COOL speed position - minimum 500 cfm (235 L/s).
Lennox Harmony Ill ' Zone Control Applications - Minimum blower speed is 483 cfm (230 L!s).
