G61MPVT − 50hz / Page 11
OPTIONAL ACCESSORY DIMENSIONS − MM

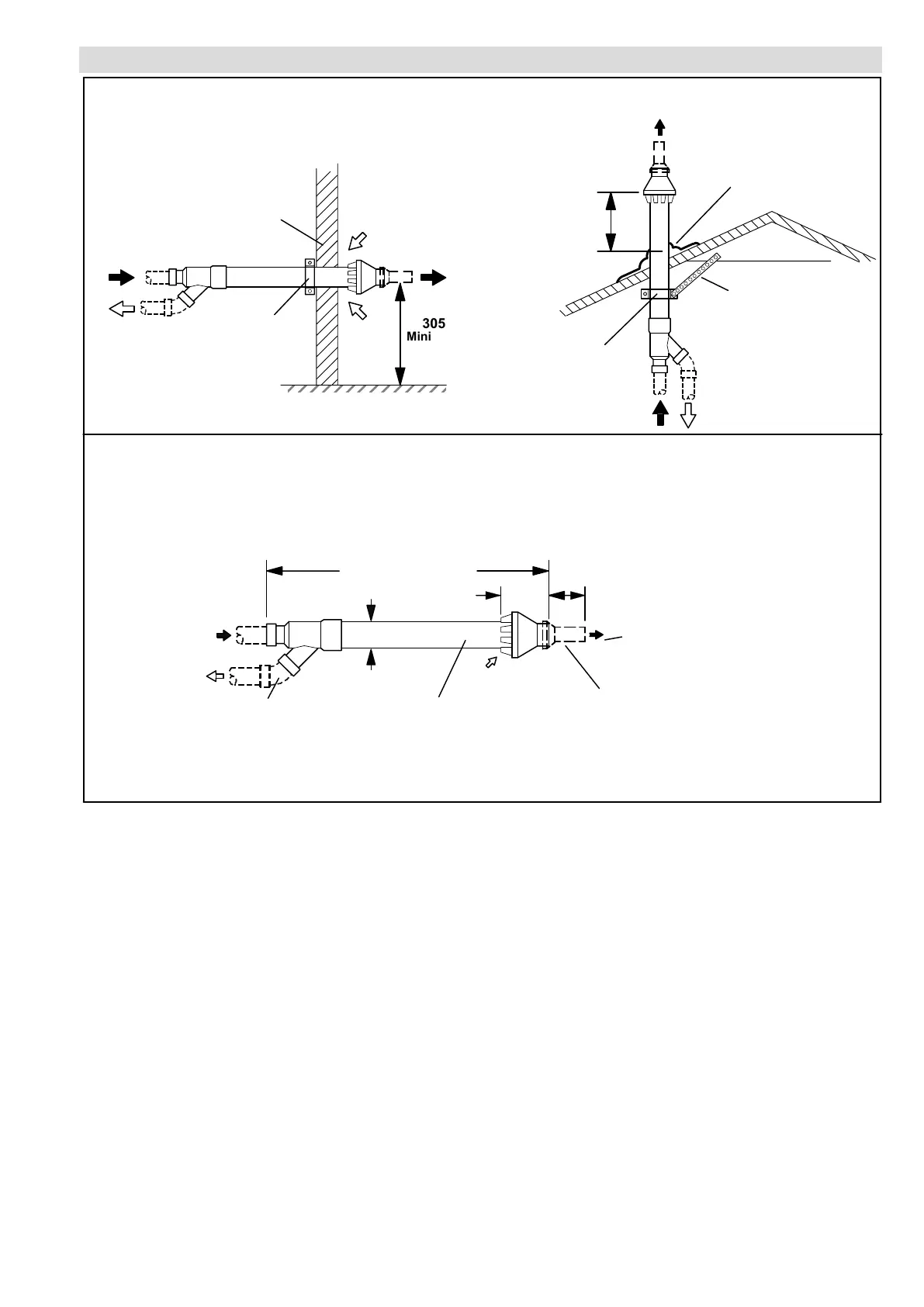

CONCENTRIC WALL
TERMINATION APPLICATIONS
INTAKE
AIR
EXHAUST
AIR
INTAKE
AIR
INTAKE
AIR
EXHAUST
AIR
OUTSIDE
WALL
305
Minimum
Above
Grade
305
Minimum
Above Average
Snow
Accumulation
SHEET METAL STRAP
(Clamp and sheet metal strap
must be field installed to support
the weight of the termination kit.)
FLASHING
(Not Furnished)
CLAMP
GRADE
(Field Supplied)
ELBOW
INTAKE AIR
EXHAUST
AIR
TERMINATION
ASSEMBLY
(Furnished)
71M80/69M29 − 2 inch
60L46 3 inch
See Installation Instructions for specific usage.
CONCENTRIC ROOF
TERMINATION APPLICATIONS
CLAMP
(Not Furnished)
848 − 71M80/69M29
987 − 60L46
89 − 71M80/69M29
114 − 60L46
Outdoor Exhaust Accelerator
included with 71M80
(Required with −070 models)
152
165
