TOP VIEW
SUPPLY
AIR
OPENING
SIDE VIEW
DOWN-FLOW
COMBUSTIBLE
FLOOR BASE
DOWN
FLOW
FURNACE
A
B
692
503
38
21-13/16
FLOOR
OPENING
38
(1-1/2)
38
38
Front Of Furnace
559
C

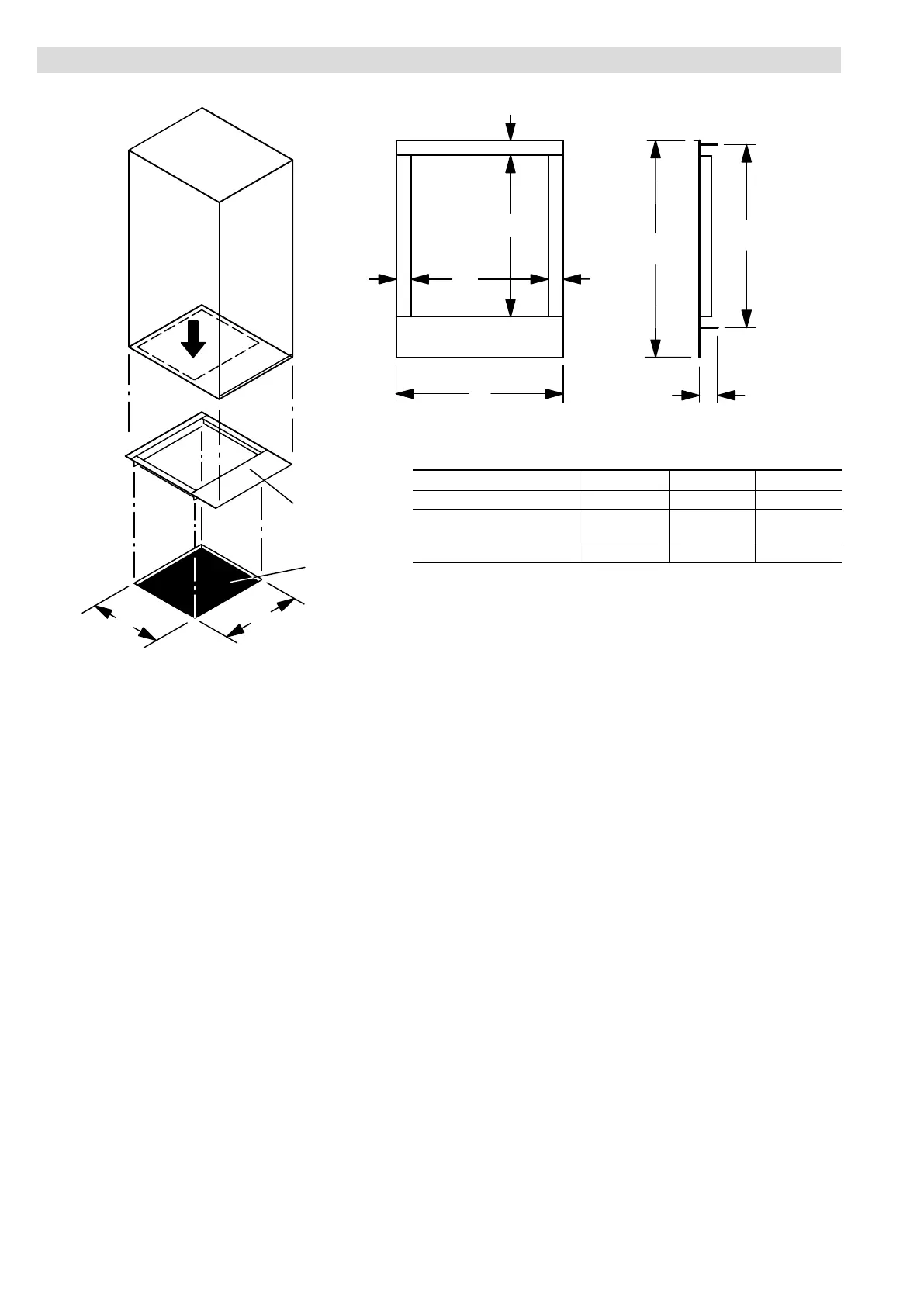

DOWN-FLOW COMBUSTIBLE FLOOR BASE
G61MPVT − 50hz / Page 10
OPTIONAL ACCESSORY DIMENSIONS − MM
Model No. A B C
G61MPVT−36B−070 497 421 476
G61MPVT−60C−090
G61MPVT−60C−110
586 510 565
G61MPVT−60D−135 675 598 654
