Application Guide INNOV@-0907- Page 51
SUPPLY LIMIT
DX UNIT (1 COMPRESSOR)

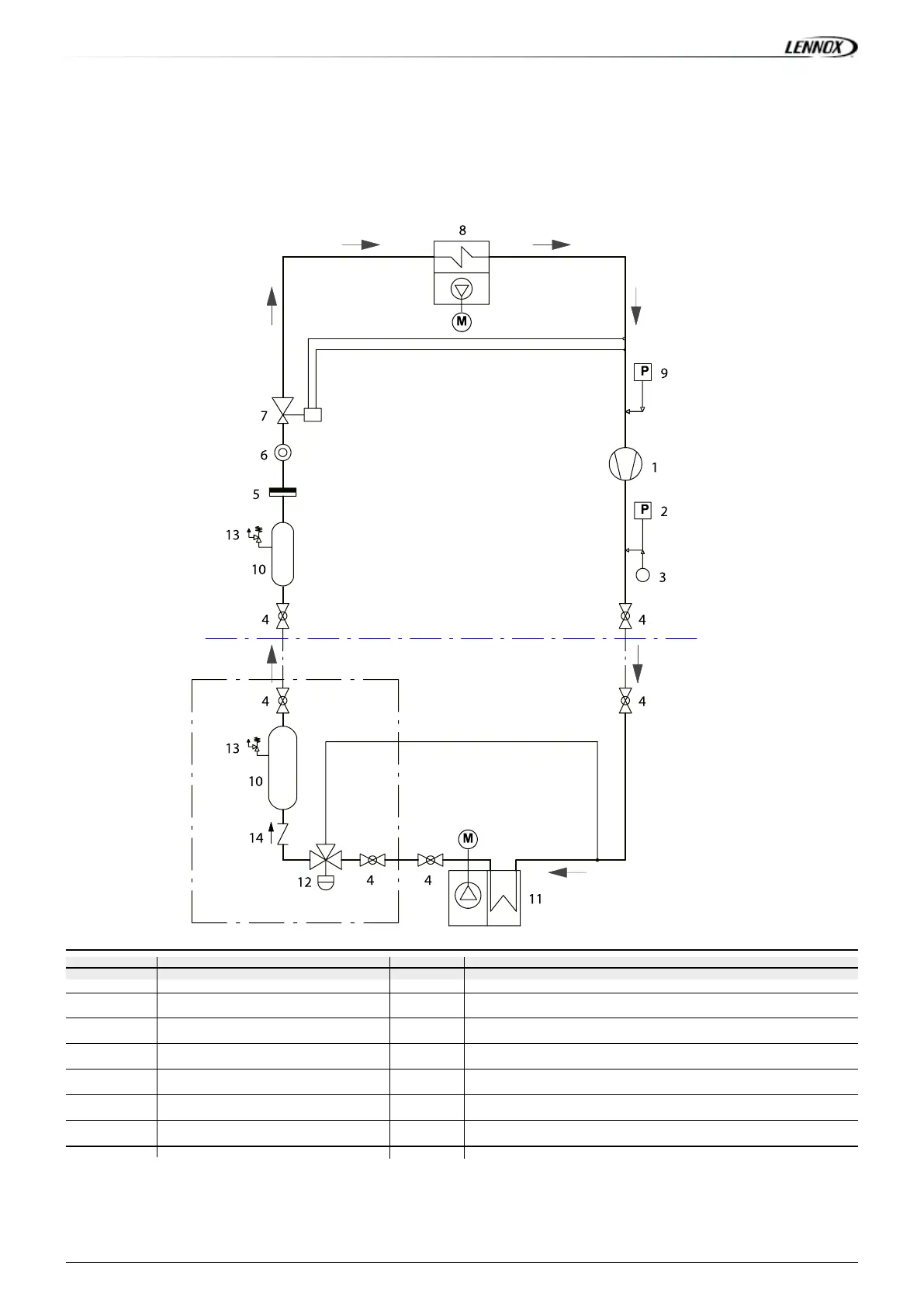

REFRIGERATION DIAGRAM
OPTIONAL
REF DESCRIPTION REF DESCRIPTION
1 Compressor 8 Evaporator
2 High pressure switch [HP] 9 Low pressure switch [LP]
3 Pressure probe [Opt.] 10 Liquid receiver
4 Ball valve 11 Condenser
5 Filter dryer 12 Flooding valve
6 Sight glass 13 Safety valve
7 Thermostatic valve 14 Check valve
