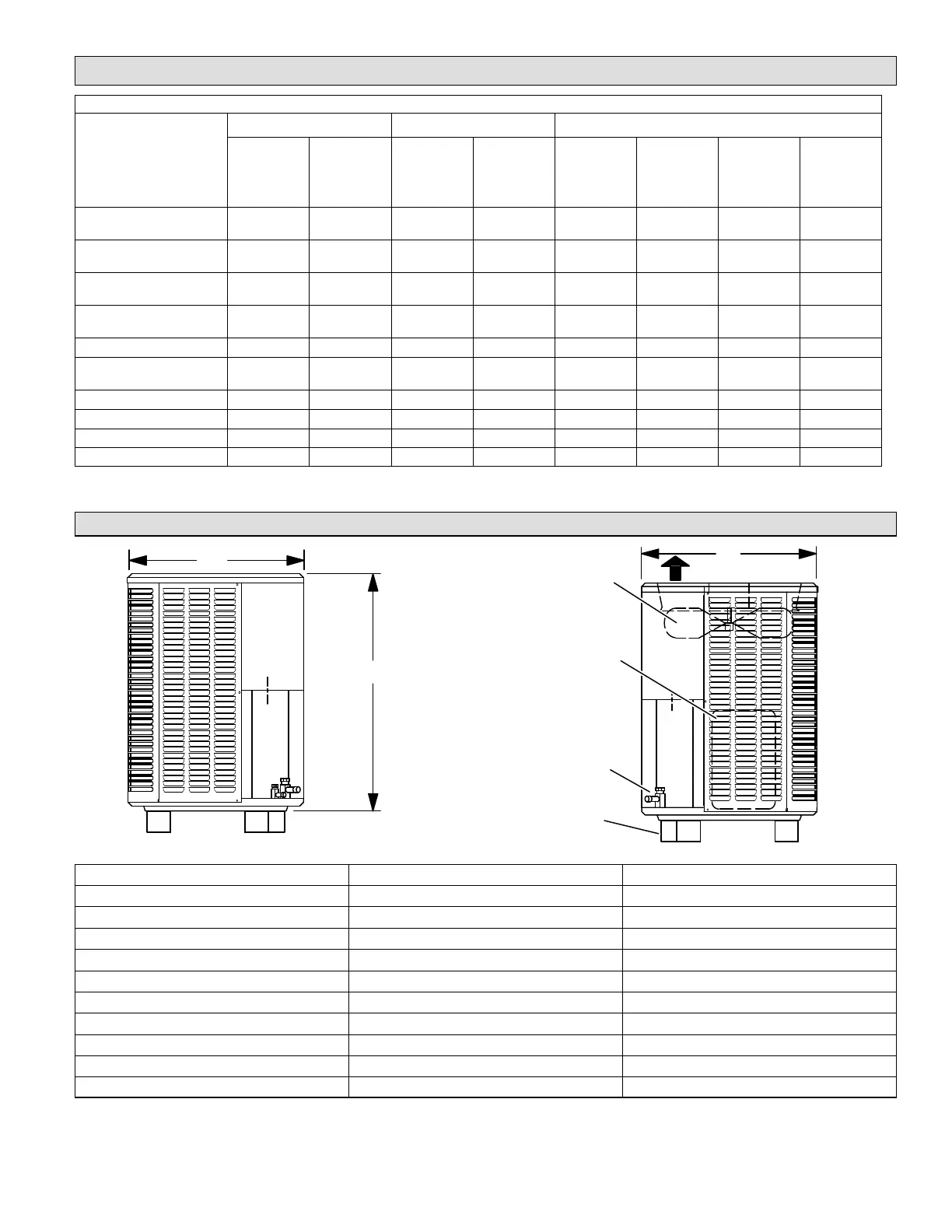

ML14XC1 SERIES
Electrical Data
208/230V - 60 Hz - 1ph
Model Numbers
Unit Compressor Condenser Fan
Maximum
Over-
current
Protection
(amps)
1
Minimum
Circuity
Ampacity
2
Rated Load
Amps (RLA)
Locked Ro
tor Amps
(LRA)
Motor HP
Nominal
RPM
Full Load
Amps (FLA)
Locked Ro
tor Amps
(LRA)
ML14XC1-018
ML14XC1S018
20 11.9 9.0 48.0 1/10 1075 0.7 1.3
ML14XC1-024
ML14XC1S024
25 14.6 10.9 59.3 1/6 825 1.0 1.9
ML14XC1-030
ML14XC1S030
25 17.0 12.8 67.8 1/6 825 1.0 1.9
ML14XC1-036
ML14XC1S036
30 18.0 13.6 79.0 1/6 825 1.0 1.9
ML14XC1-041 30 19.3 14.7 75.0 1/6 825 1.0 1.9
ML14XC1-042
ML14XC1S042
40 23.4 17.9 112.0 1/6 825 1.0 1.9
ML14XC1-047 35 21.9 16.1 105.5 1/3 825 1.8 2.9
ML14XC1-048 40 24.2 18.0 117.0 1/4 825 1.7 3.2
ML14XC1-059 45 28.8 20.8 127.1 1/3 820 2.8 - - -
ML14XC1-060 50 29.6 22.2 127.9 1/3 825 1.8 2.9
1
HACR type circuit breaker or fuse.
2
Refer to National or Canadian Electrical Code manual to determine wire, fuse and disconnect size requirements.
Unit Dimensions - Inches (mm)
SUCTION AND LIQUID
LINE CONNECTION
DISCHARGE AIR
SIDE VIEW
OUTDOOR
COIL FAN
COMPRESSOR
A
B
A
OPTIONAL UNIT STANDOFF KIT (4)
(FIELD INSTALLED)
SIDE VIEW
Model A B
-018 24-1/4 (616) 29-1/4 (743)
-024 28-1/4 (724) 29-1/4 (743)
-030 28-1/4 (724) 37-1/4 (946)
-036 28-1/4 (724) 37-1/4 (946)
-041 28-1/4 (724) 37-1/4 (946)
-042 28-1/4 (724) 33-1/4 (845)
-047 32-1/4 (819) 33-1/4 (845)
-048 28-1/4 (724) 37-1/4 (946)
-059 32-1/4 (819) 37-1/4 (946)
-060 32-1/4 (819) 33-1/4 (845)
