Lennox Mini-Split Service Manual / Page 245
IPM Check

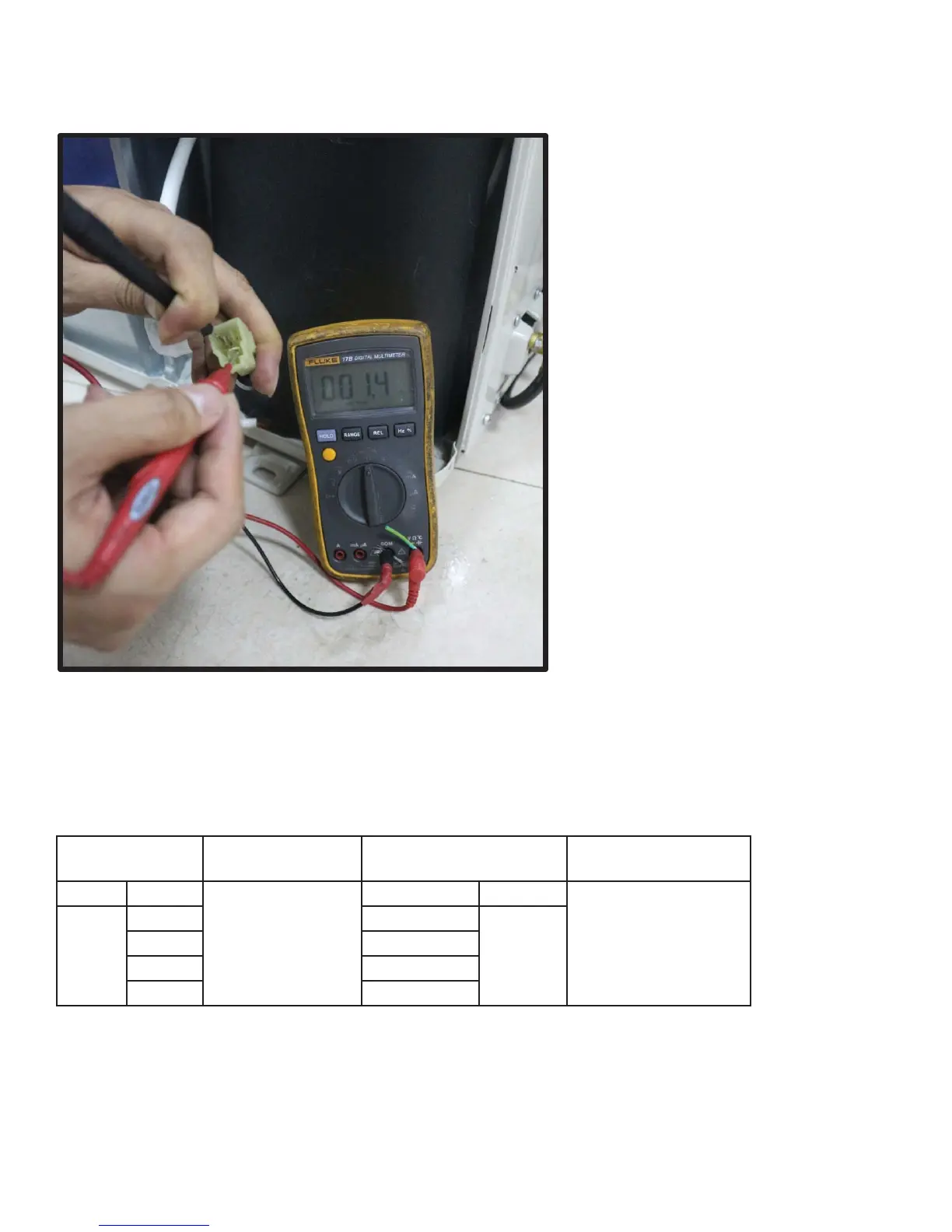

Measure the resistance value of each winding by using the tester.
Turn off the power, let the large capacity electrolytic capacitors discharge completely, and dismount the IPM.
Use a digital tester to measure the resistance between P and UVWN; UVW and N.
Digital Tester
Normal
Resistance Value
Digital Tester
Normal Resistance
Value
(+)Red (-)Black
∞
(Several MΩ)
(+)Red (-)Black
∞
(Several MΩ)
P
NU
N
UV
VW
W (+)Red
