Lennox MPA009S4S-1P Installation Instructions

9
System Clearances
Outdoor Unit
24 (610)
Air Outlet
Air Inlet
24
(610)
12
(305)
79
(2007)
1
12
(305)
1
Minimum rear clearance can be 6 inches (152 mm) when mounted on brackets
and with no obstructions on the other three sides.

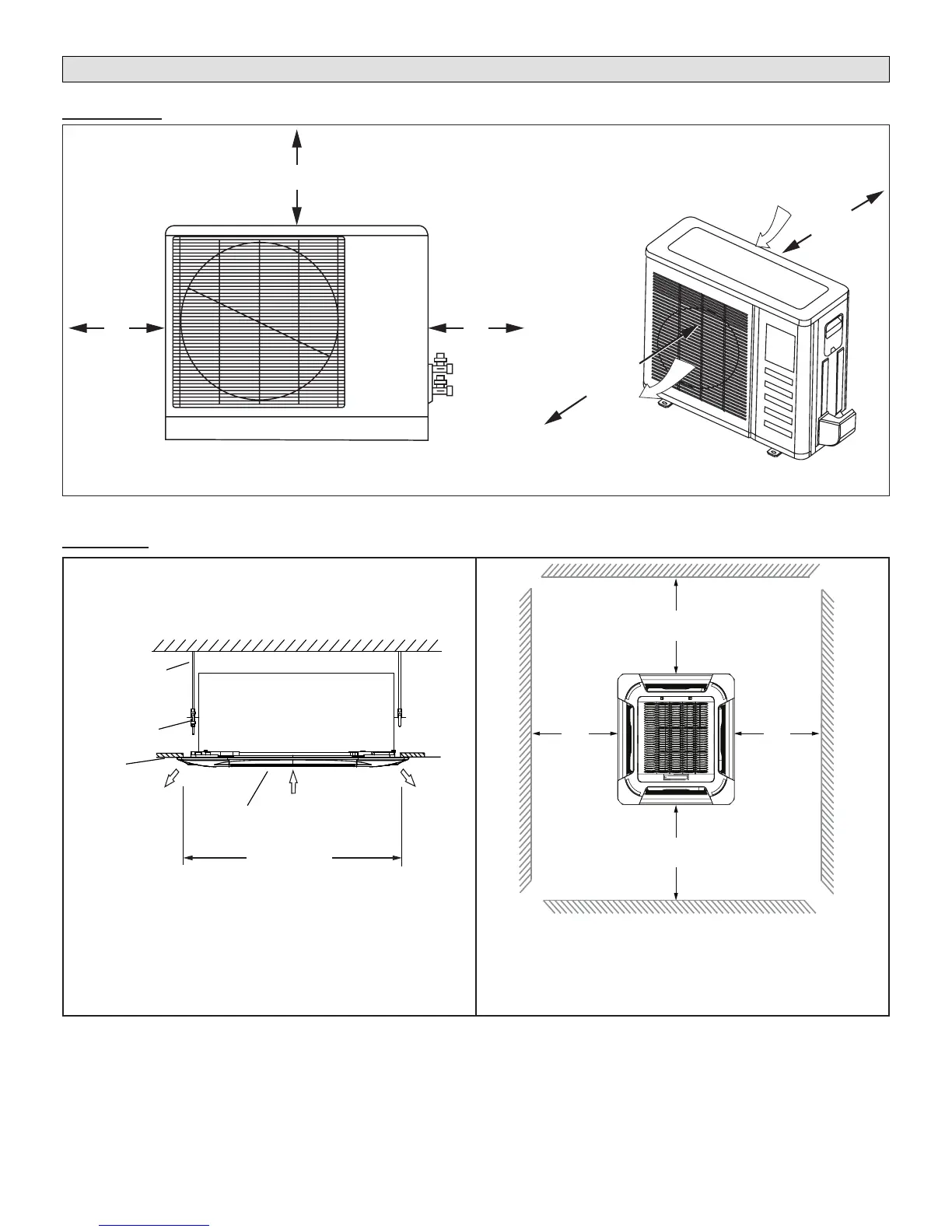

Figure 4. Outdoor Unit Clearances - inches (mm)
Indoor Unit
23-5/8 (600)
(Ceiling Opening)
INSTALLATION
HANGERS
LEVELING
ADJUSTMENT
NUT (4)
CEILING
DIFFUSER
PANEL
AIR
OUTLET
AIR
OUTLET
AIR
INLET
36”
(914 mm)
36”
(914 mm)
36”
(914 mm)
36”
(914 mm)
Minimum Clearance from Structural Ceiling to Drop Ceiling:
M22A009, M22A012, M22A018, M33A024 -- 10-1/4” (260 mm)
M33A036, M33A048, M33B048 -- 13” (330 mm)
Minimum Clearance to Floor - 98-1/2” (2500 mm)
Figure 5. Indoor Unit Clearances - inches (mm)
