Lennox MPDP35IN User Manual

8
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
LENNOX HEARTH PRODUCTS • MERIT PLUS
®
DIRECT VENT GAS FIREPLACES (MPDP35/40) • CARE AND OPERATION INSTRUCTIONS
Gas Controls/Control Compartment Access
The gas control valve can be found in the control compartment. See Figure 2.
Accessing Control Compartment:
To remove the lower access panel, slide the hinge pin on the left side of the panel to the RIGHT
until it disengages from the left corner post hole. Pull the panel diagonally to the LEFT, away
from the fireplace.
To ease panel replacement, press the spring-loaded magnet catch to temporarily lock it in the
retracted position, and then close the panel.
OPERATION AND CARE OF YOUR APPLIANCE
WARNING
Young children should be carefully supervised when they are in the
same room as the appliance. Toddlers, young children and others
may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict
access to a fireplace or stove, install an adjustable safety gate to keep
toddlers, young children and other at risk individuals out of the room
and away from hot surfaces.
AVERTISSEMENT
Les jeunes enfants devraient être surveillés étroitement lorsqu’ils se trou-
vent dans la même pièce que l’appareil. Les tout petits, les jeunes enfants
ou les adultes peuvent subir des brûlures s’ils viennent en contact avec
la surface chaude. Il est recommandé d’installer une barrière physique
si des personnes à risques habitent la maison. Pour empêcher l’accès
à un foyer ou à un poêle, installez une barrière de sécurité; cette mesure
empêchera les tout petits, les jeunes enfants et toute autre personne à
risque d’avoir accès à la pièce et aux surfaces chaudes.

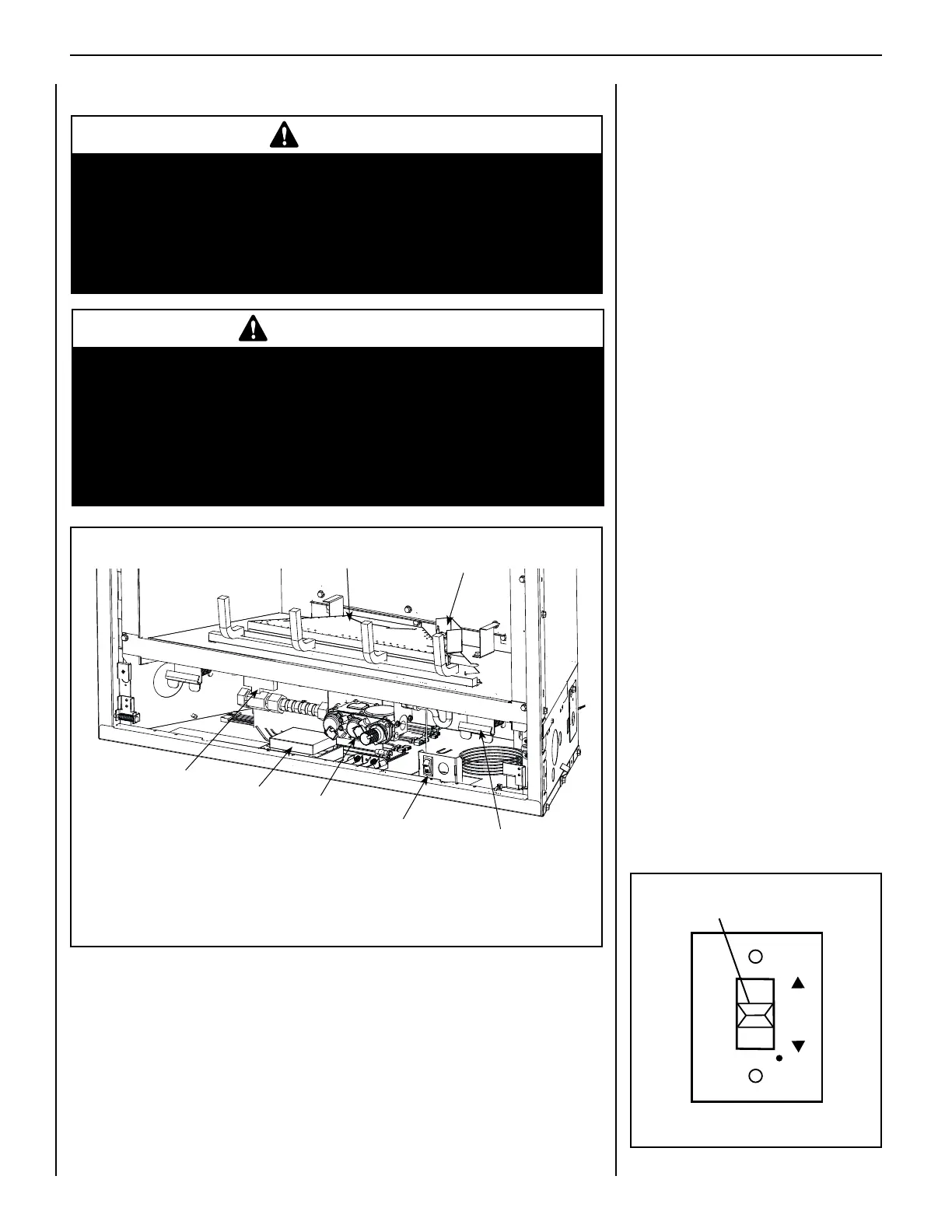

Figure 2
Remote Control System
The Remote and Receiver allows you to com-
mand the functions of your fireplace from the
comfort of your chair. It is configured to control
the On/Off primary burner operation, its flame
levels (through six levels) and provides On/Off
and Smart thermostatic control of this appliance.
The system controls fan speed through six (6)
levels and has a constantly powered 120V/60Hz
power outlet.
The Receiver connects directly to the gas valve,
stepper motor and the Fan Control Module with
and umbilical cord wiring harness (see Wire
Diagram on Page 18).
The Receiver is powered by 4 AA type batteries,
located within.
The Receiver accepts commands via radio
frequency from the Transmitter and does not
require line-of-sight operation.
The Receiver three position slider switch can
be set to one of three positions: ON (Manual
Override), REMOTE (Remote Control) or OFF.
Initializing The System For The First Time
Install the 4 AA batteries into the receiver battery
bay (behind the wall switch plate).
Note: Install the batteries into the battery bay
as indicated on the battery cover. Ensure that
batteries are installed with proper polarity (+/-).
Place the three position slider switch in the
"Remote" position (see Figure 3). Using the end
of a paper clip, or other similar object, insert the
end of the paper clip into the hole marked "PRG"
on the Receiver front cover. The Receiver will
"beep" three (3) times to indicate that it is ready
to synchronize with a Transmitter.
Figure 3
Remote
Off
On
PRG
Slider Switch In
Remote Position
Pilot Assembly
Burner Assembly
CPI Switch*
Door Latch
Main Gas
Shut-Off Valve
*CPI Switch - Switches from an intermittent pilot mode to a standing pilot mode (a standing pilot stays
lit when the fireplace is off).
Gas Valve
DFC Board
*CPI Switch Positions
(o) = Intermittent Pilot Mode
(-) = Standing Pilot Mode
