TOP VIEW
FRONT VIEW
SIDE VIEW
37-1/4 (946)
26-1/2 (673)
40-1/2 (1029)
GAS VALVE
LIQUID VALVE
2-3/8 (60)
4-1/4
(108)
3-5/8 (92)
18-1/8 (460)
18
(457)
15-7/8
(403)
DRAIN HOLE
(Bottom of Unit)
31-7/8
(810)
15-1/4
(387)
16-1/8 (410)
2-7/8 (73)
1 (25)

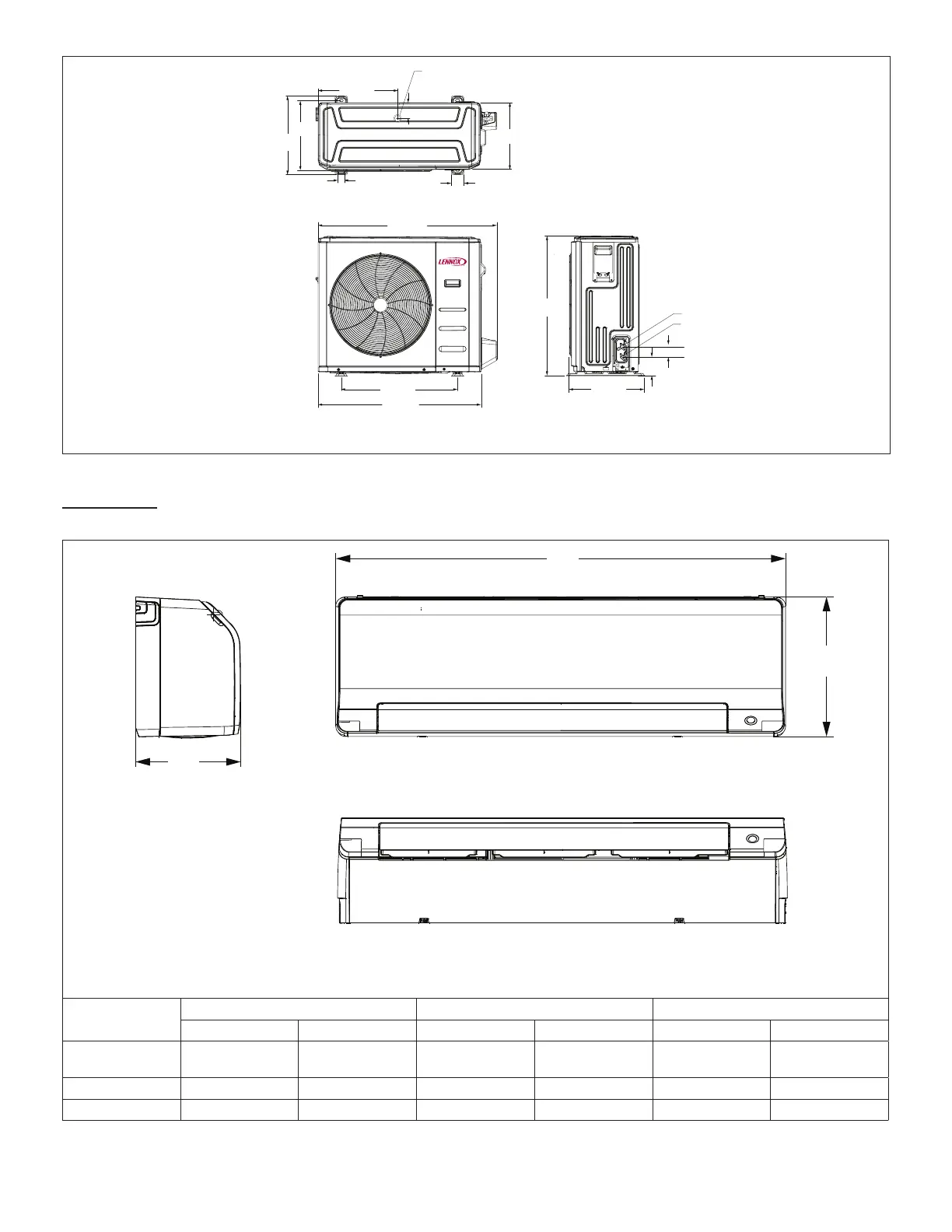

Figure 7. MLB024S4S Outdoor Unit Dimensions - Inches (mm)
Indoor Units
Table 2. Indoor Unit Dimensions - Inches (mm)
BOTTOM VIEW
SIDE VIEW
FRONT VIEW
B
A
C
Size
A B C
in. mm in. mm in. mm
MWMC006, 009,
012
33-3/8 848 11-3/4 298 9 229
MWMC018 40 1016 12-1/2 316 9-1/2 241
MWMC024, 030 46-7/8 1191 14-5/8 371 11 279
