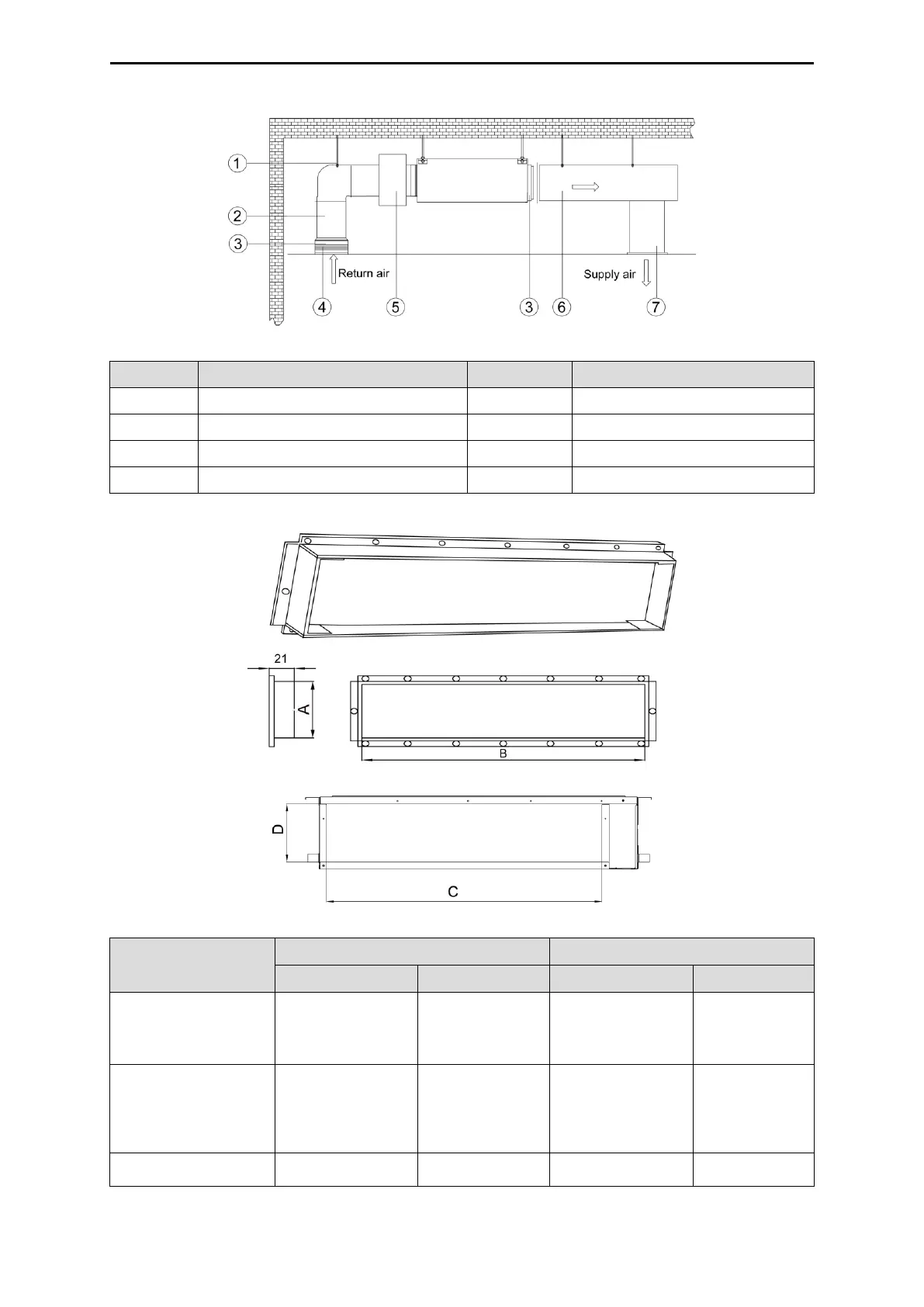

(1) Installation of the Rectangular Duct
Fig 4.4.1
No. Name No. Name
1 Hanger Rod 5 Static Pressure Box
2 Return Air Duct 6 Main Supply Air Duct
3 Canvas Duct 7 Supply Air Outlet
4 Return Air Inlet
4.4.2 Shape and Size of Air Outlet and Air-return Opening
Fig 4.4.2 Air Outlet
Fig 4.4.3 Air-return Opening
Model
Size of Air Outlet Size of Air –returen Opening
A B C D
VEHD019N432U
VEHD021N432U
VEHD024N432U
VEHD027N432U
VEHD031N432U
VEHD034N432U
VEHD038N432U
VEHD043N432U
VEHD048N432U
158
(6-1/4)
818
(32-1/4)
994
(39-1/8)
195
(7-5/8)
158
(6-1/4)
818
(32-1/4)
100
(3-7/8)
206
(8-1/8)
190
(7-1/2)
850
(33-1/2)
940
(37)
286
(11-1/4)
VEHD055N432U
