High ESP Fan Coil Indoor Unit
4
Note!
①
√: included, X: not included
②
Please refer to the user manual of Wired Controller or Remote Controller for function
details
3 Preparations for Installation
Note: Product graphics are only for reference. Please refer to actual products. Unspecified
measure unit is mm/inch.

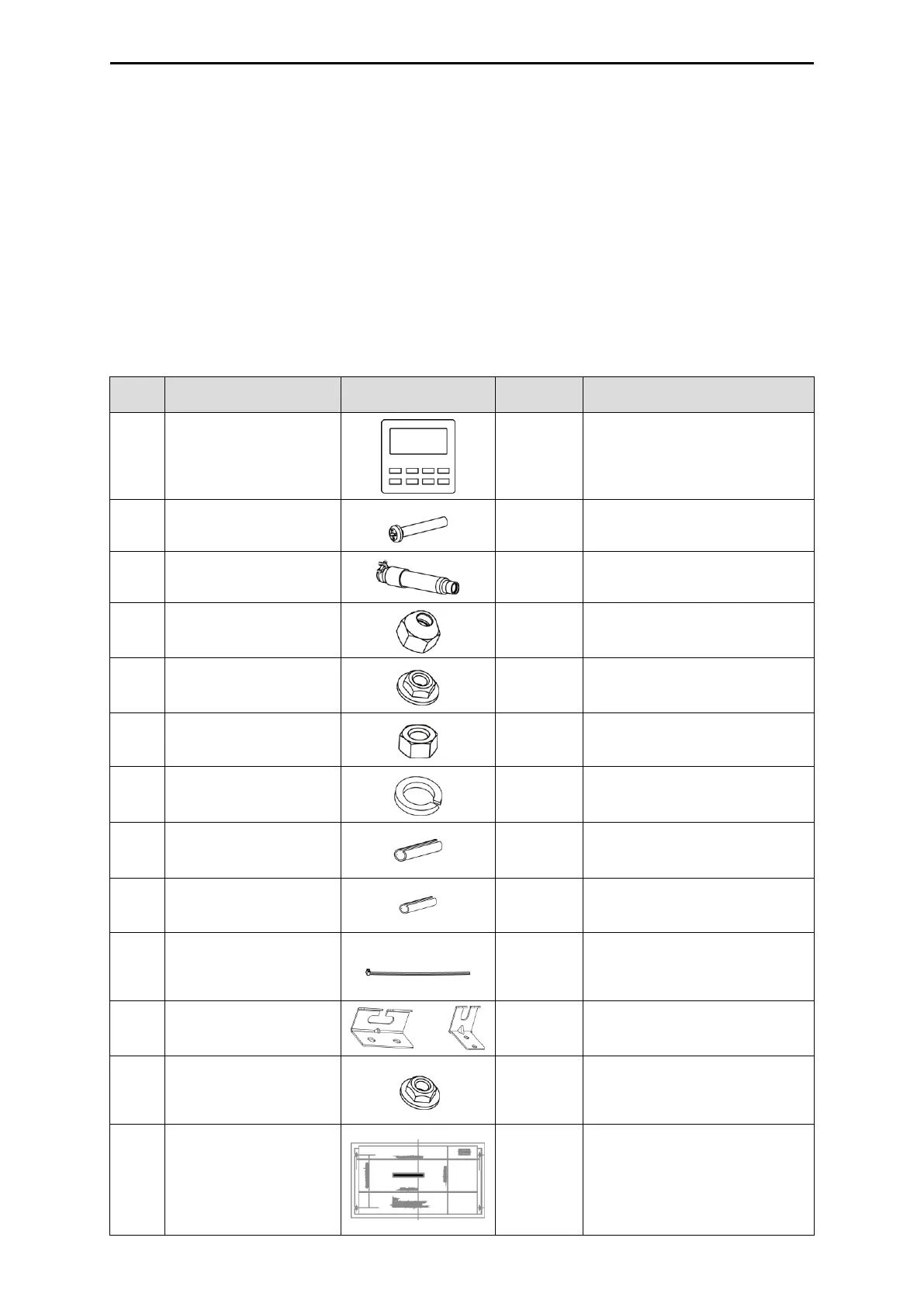

3.1 Standard Fittings
Please use the supplied standard fittings listed below as instructed.
No. Name Appearance Q'ty Usage
1 Wired Controller 1 To control the indoor unit
2
M4X25 Screw
(Cross recessed small
pan head screw)
3 To fix the wired controller
3 Drain Hose Assembly 1
To connect with the hard PVC
drain pipe
4 Special Nut 1
To be used for connecting the
refrigerant pipe
5 M10X8 Nut with Washer 4
To be used together with the
hanger bolt for installing the unit.
6 M10 Nut (M10X8.4 Nut) 4
To be used together with the
hanger bolt for installing the unit.
7
M10 Washer (Spring
Washer M10X2.6)
4
To be used together with the
hanger bolt for installing the unit.
8 Insulation 1 To insulate the gas pipe
9 Insulation 1 To insulate the liquid pipe
10 Fastener 8 To fasten the sponge
11 Hanger
or
4 To fix the indoor unit
12 Nut with Washer 8
To fix the hook on the cabinet of
the unit.
13
paper pattern for
installation
1 Locate the drill hole on ceiling
To Next Page
