Lennox VRF VEHD038N432U User Manual

High ESP Fan Coil Indoor Unit
15

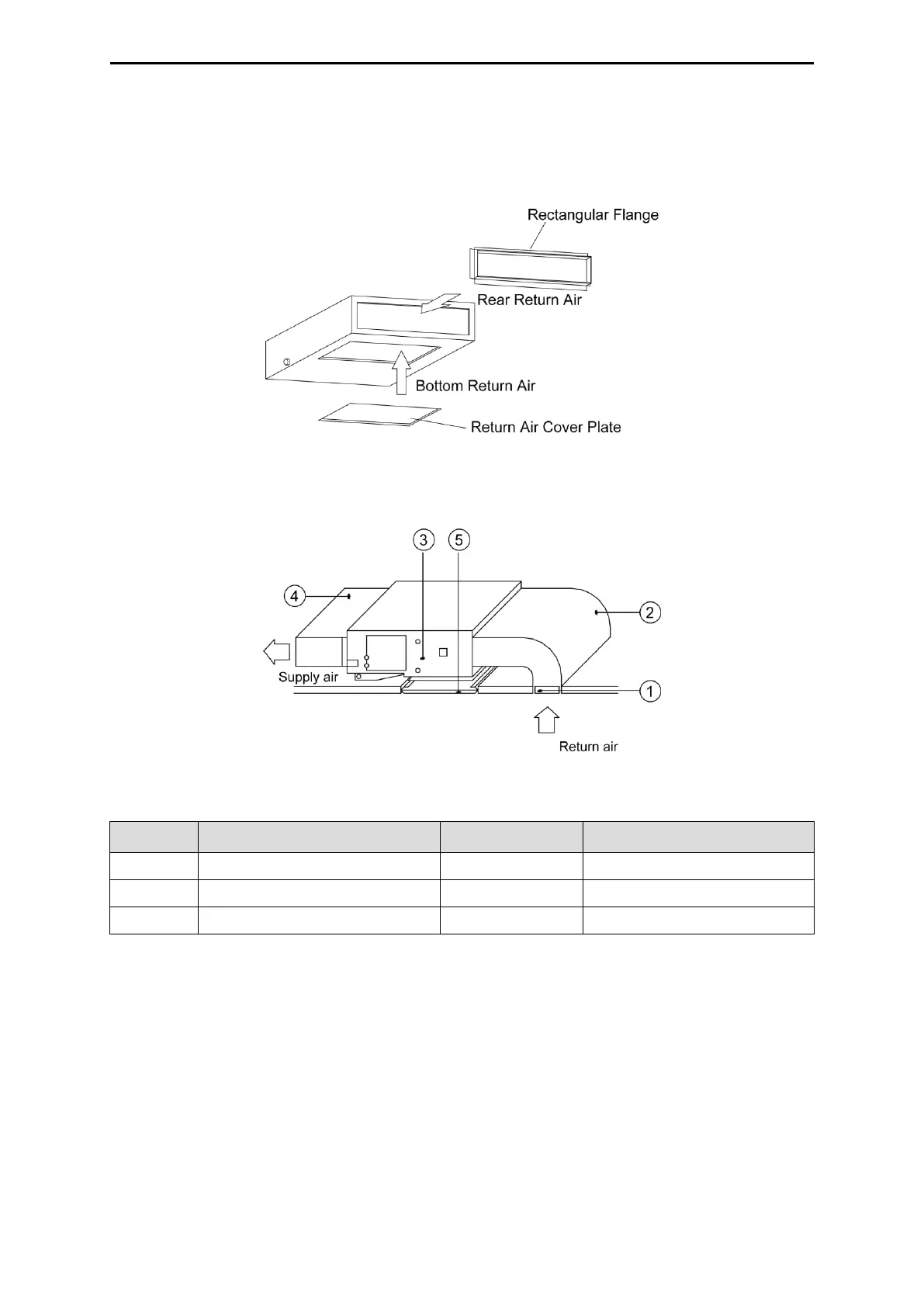

4.4.3 Installation of the Return Air Duct
(1) The default installation location of the rectangular flange is at the back and the return air
cover plate is at the bottom, as shown in Fig 4.4.4.
Fig 4.4.4
(2) The installation method can be choosen with considering the conditions of the building
and maintenance etc., as shown in Fig 4.4.5.
Fig 4.4.5
Table 5 Installation of the return air duct
No.
Name
No.
Name
1
Return Air Inlet (with filter)
4
Supply Air Duct
2
Return Air Duct
5
Grille
3
Indoor unit
4.5 Installation of Wired Controller
Please refer to User Manual of Wired Controller for the installation details.
NOTICE
!
When installation is finished, the unit must be tested and debugged before
operation. Please refer to Instruction Manual of ODU for auto addressing and debugging
details.
