XP17
Unit Wiring Diagrams
The following wiring diagrams were used during various stages of unit production. Service technician will need to visually
inspect the unit being service to determine which wiring diagram is applicable. Quick verification can usually be made by
comparing the wiring diagram located on the unit access panel to the following diagrams.

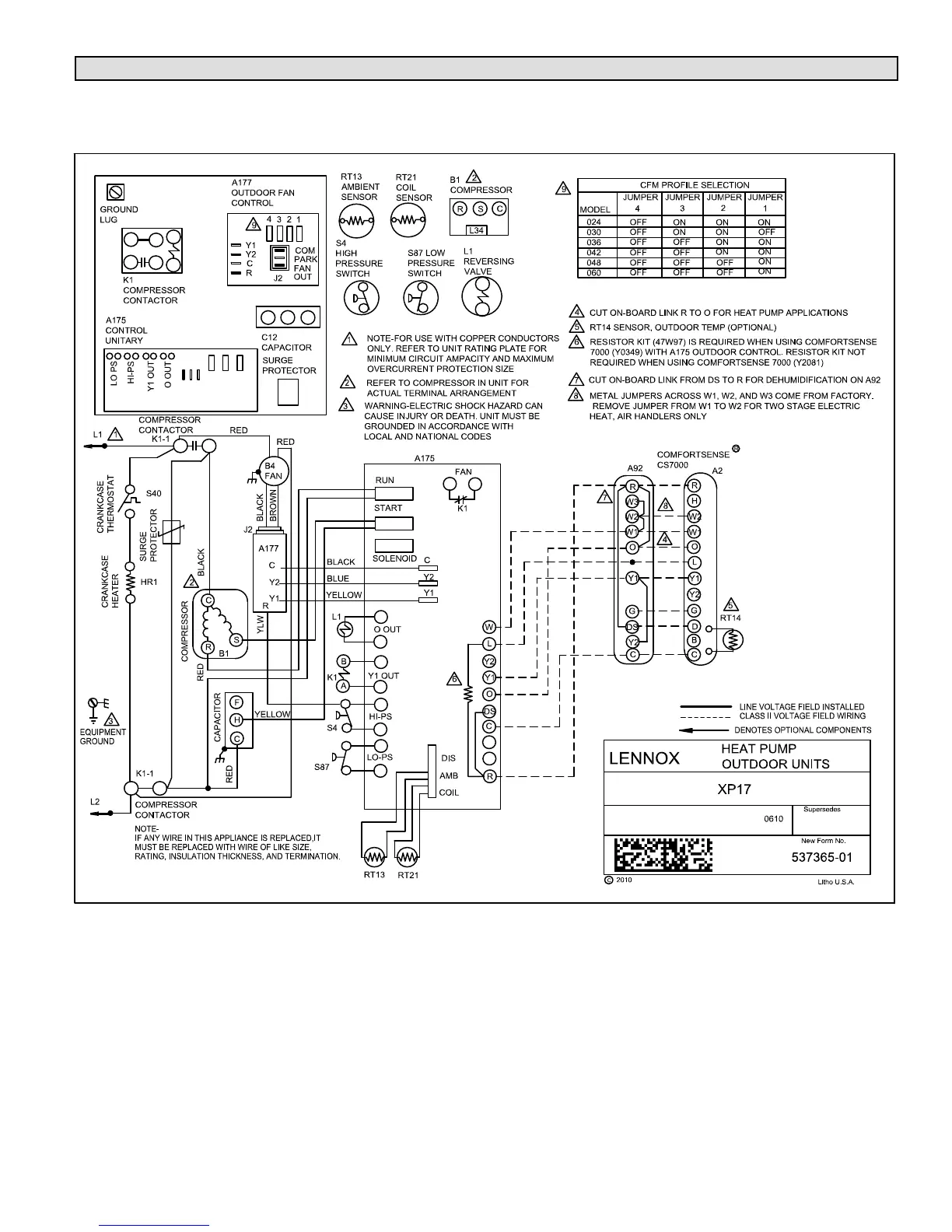

Figure 18. Typical XP17 Wiring Non-Communicating with Fan Motor Surge Protection) (XP17-XXX-230-01)
