1030 3G card (on select models)
For access, remove these FRU:
• “1010 LCD cover” on page 31
• “1020 Battery pack” on page 32

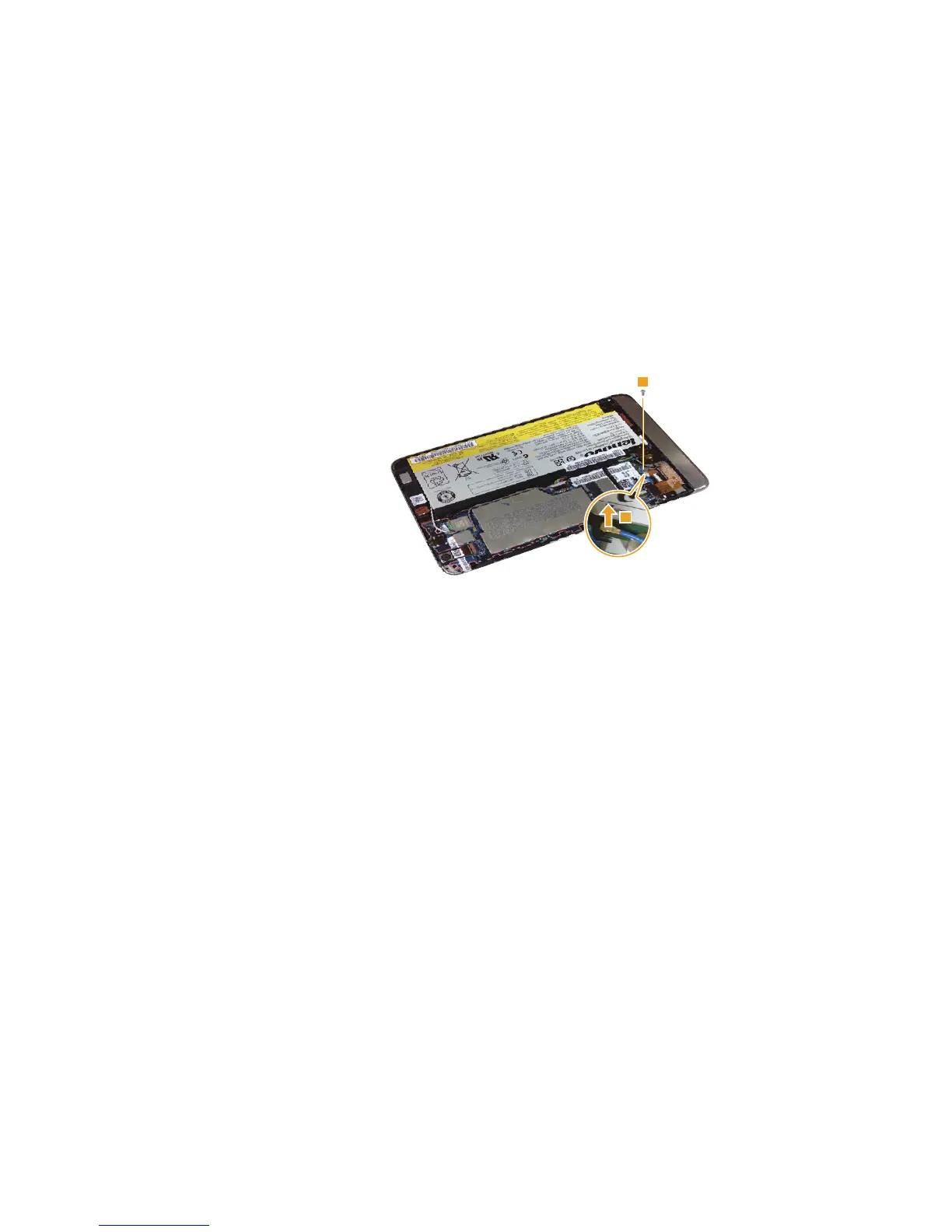

Figure 3. Removal steps of 3G card
Disconnect the 3G card cable (blue)
1
. Then remove the one screw
2
.
2
1
In step
1
, unplug the jacks by using the removal tool antenna RF connector (P/N:
51078891), or pick up the connectors with your ngers and gently unplug them
in the direction shown by the arrows.
When installing:
• In models with a 3G card that has two antenna connectors, plug the blue
cable (1st) (MAIN) into the jack labeled 1, and the red cable (2nd) (AUX) into
the jack labeled 2 on the card.
