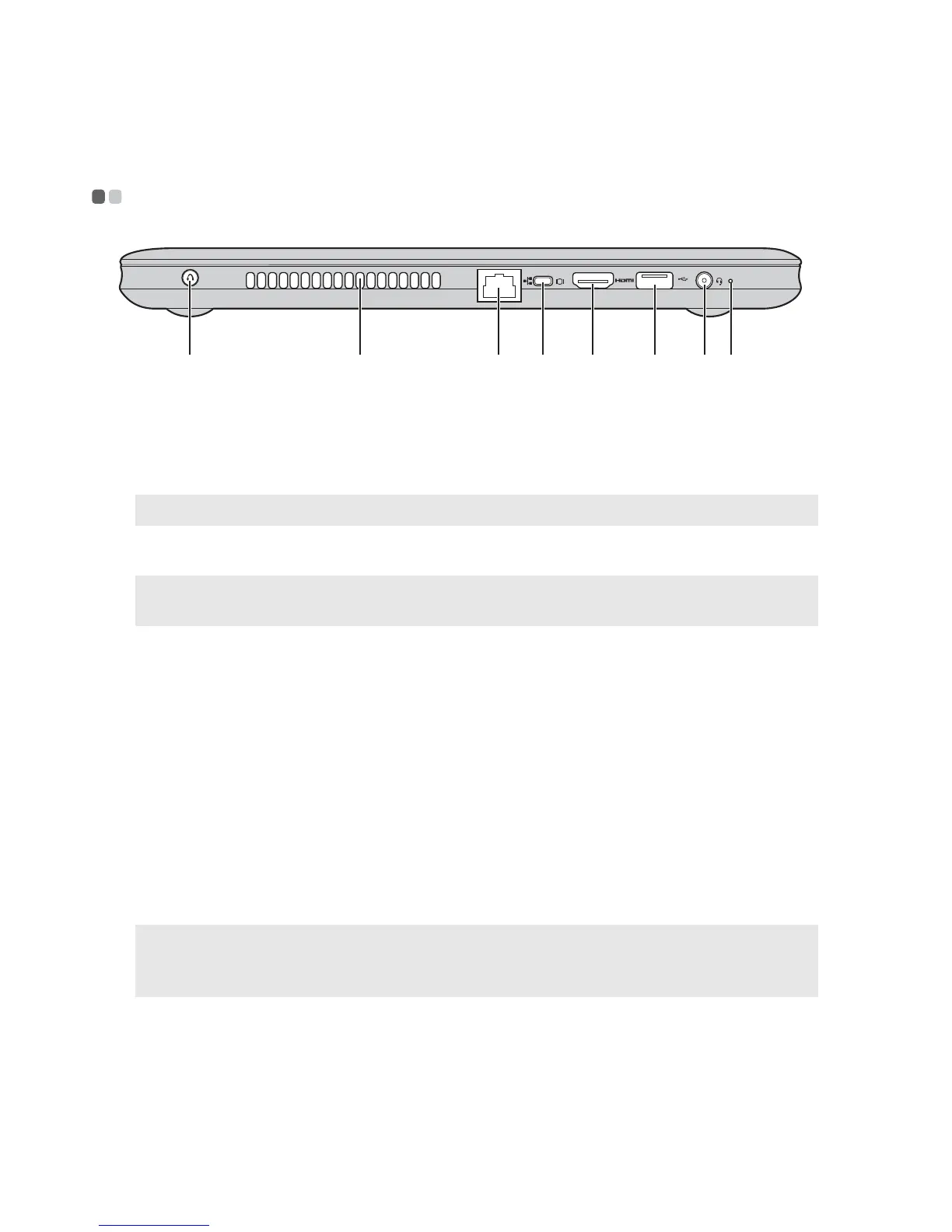

Chapter 1. Getting to know your computer
Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Novo button
When the computer is off, press this button to open Novo
button menu. From the Novo button menu, start the
Lenovo OneKey Recovery system or the BIOS setup
utility, or enter the boot menu.
Note: For details, see “Chapter 3. Lenovo OneKey Recovery system” on page 20.
Ventilation slots
Dissipate internal heat.
Note: Make sure that none of the ventilation slots are blocked or else overheating of the
computer may occur.
RJ-45 port
Connects the computer to an Ethernet network.
MINI VGA
Connects to external display devices.
HDMI port
Connects to devices with HDMI input such as a TV or a
display.
USB 3.0 port
Connects to USB devices.
In BIOS Setup Utility, if Always on USB is set to
Enabled, when your computer is powered off, the port
can charge most currently sold external USB devices. You
can set USB discharge until the remaining battery level
to 30%, 40% or 50%.
Note:
• For details, see “Connecting USB devices” on page 8.
• When this setting is enabled, battery usage time of the computer will become shorter.
Combo audio
jack
Connects to headphones or headsets.
a b
c d
e f g
h
a
b
c
d
e
f
g

Lenovo IdeaPad U510 Specifications

General

Bus type	DMI
Stepping	L1
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3200 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	1.8 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	17 W
CPU multiplier (bus/core ratio)	18
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel HM77 Express
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
HDD speed	5400 RPM
HDD capacity	500 GB
SSD capacity	24 GB
HDD interface	SATA
Storage media	HDD+SSD
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	524 GB
Compatible memory cards	MMC, SD
Number of HDDs installed	1
Touchscreen	-
Display diagonal	15.6 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
Audio system	Dolby Home Theater v4
Speaker power	2 W
Data network	Not supported
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 2.0 ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 8
Form factor	Clamshell
Product type	Laptop
Product color	Black, Grey
Processor code	SR0N9
Processor ARK ID	65697
Processor package size	31 x 24 mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
Battery life (max)	6 h

Weight and Dimensions

Depth	250 mm
Width	382 mm
Height	21 mm
Weight	2200 g
