8 Lenovo System x3850 X6 and x3950 X6 Quick Start Guide

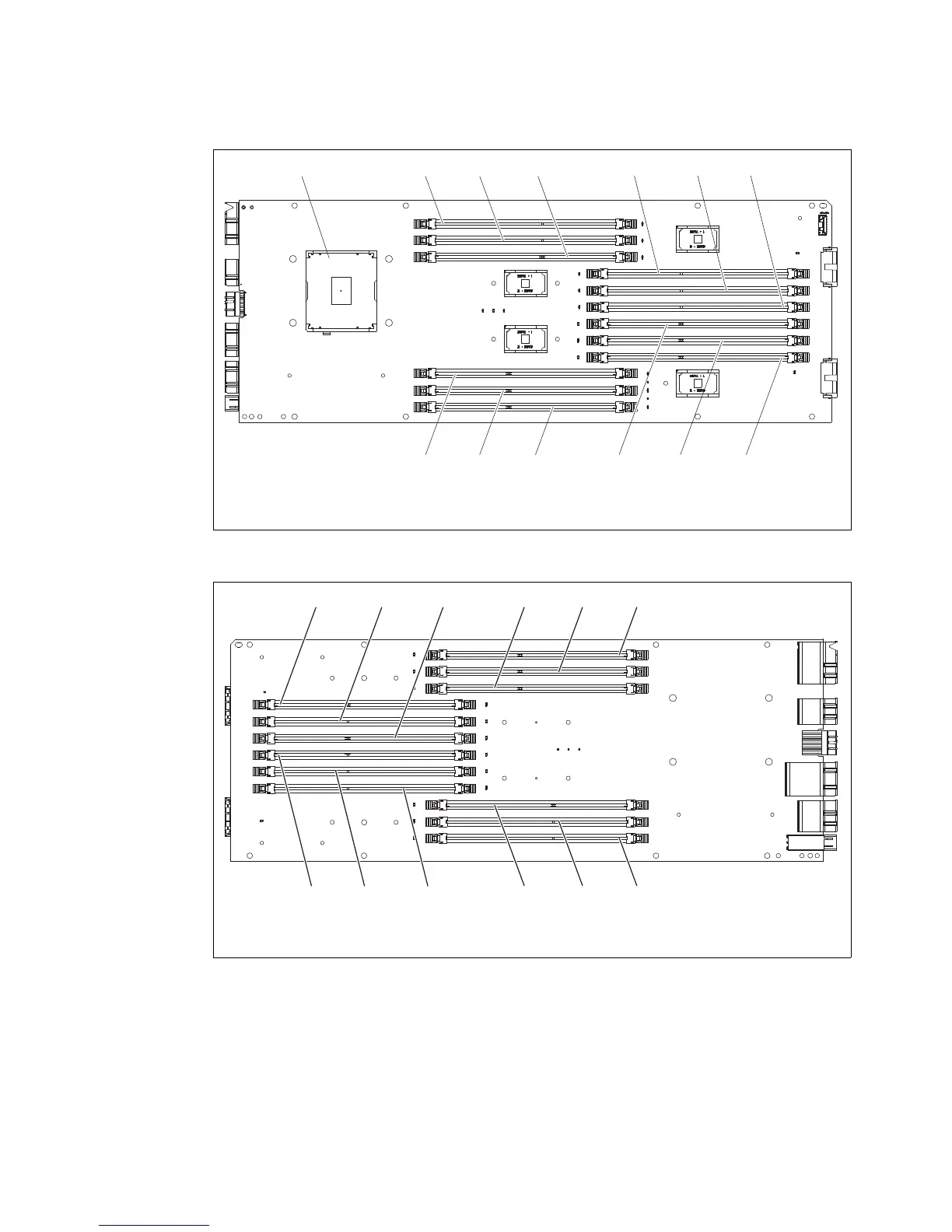

Figure 6 and Figure 7 show the central processing unit (CPU) board layout.
Figure 6 CPU layout (left side of board)
Figure 7 CPU layout (right side of board)
DIMM 1 DIMM 2 DIMM 3
DIMM 4 DIMM 5 DIMM 6 DIMM 10 DIMM 11 DIMM 12
DIMM 7 DIMM 8 DIMM 9Microprocessor
(Left side of board)
DIMM 24
DIMM 23
DIMM 22
DIMM 19DIMM 20
DIMM 21
DIMM 15
DIMM 14
DIMM 13
DIMM 18
DIMM 17
DIMM 16
(Right side of board)
