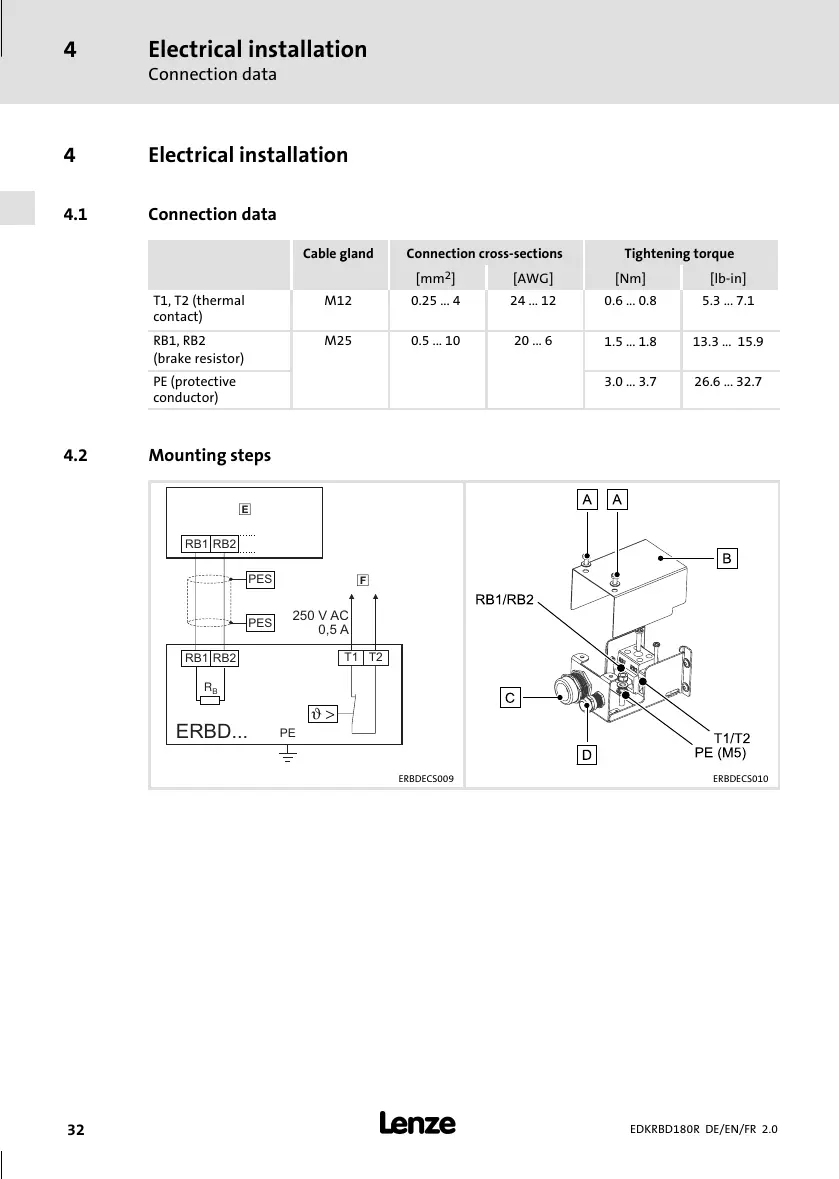

4 Electrical installation
4.1 Connection data
Cable gland
Connection cross-sections Tightening torque
C
a
b
l
e
g
l
a
n
d
[mm
2
] [AWG] [Nm] [lb-in]
T1, T2 (t hermal
contact)
M12 0.25 ... 4 24 ... 12 0.6 ... 0.8 5.3 ... 7.1
RB1, RB2
(brake resistor)
M25 0.5 ... 10 20 ... 6
1.5 ... 1.8 13.3 ... 15.9
PE (protective
conductor)
3.0 ... 3.7 26.6 ... 32.7
4.2 Mounting steps
R
B
PE
RB1
RB1
RB2
RB2
PES
PES
5
4
T1 T2
ERBD...
ϑ >
250 V AC
0,5 A
ERBDECS009 ERBDECS010
