8 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES

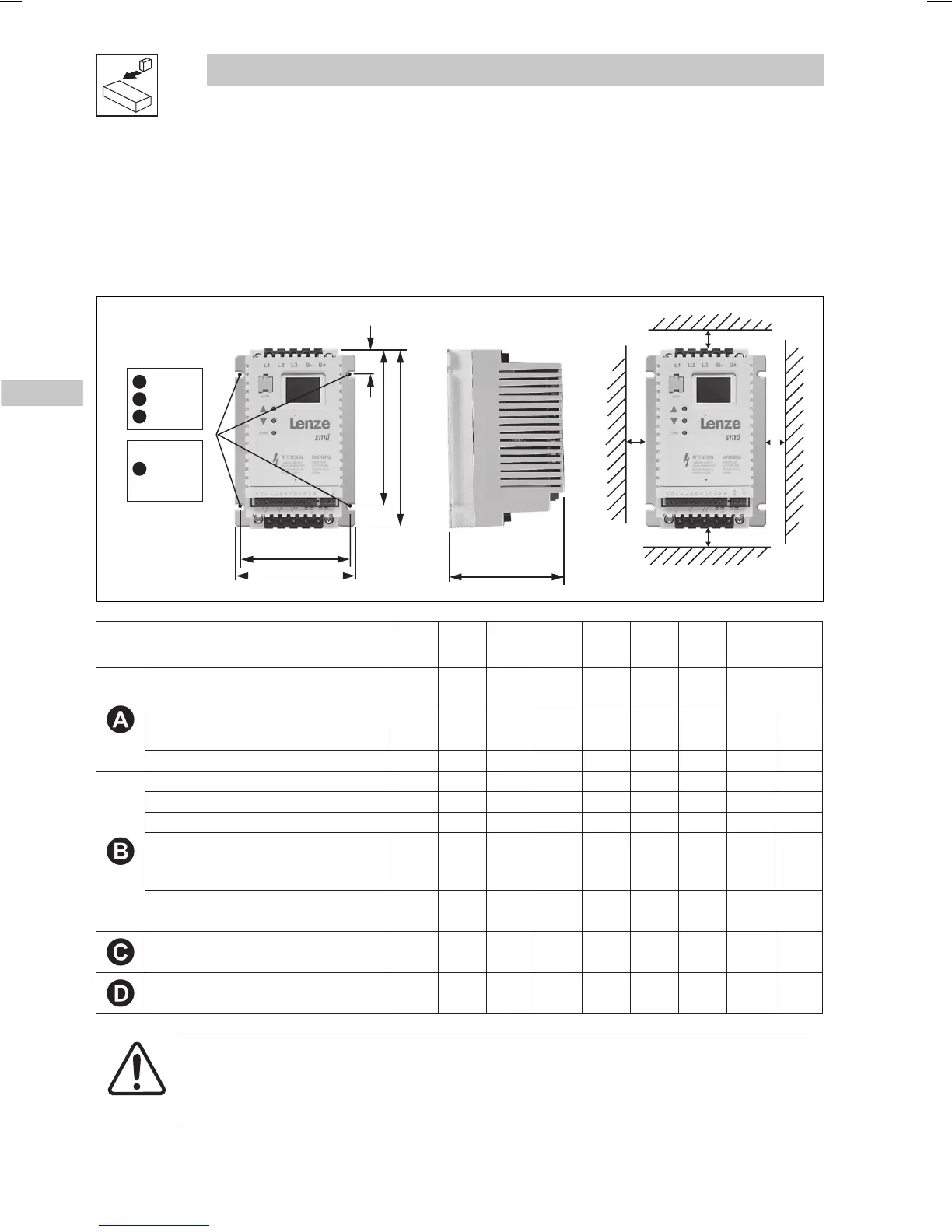

Installation
a
4 x M4
1.2 Nm
10 lb-in
4 x M6
2.8 Nm
24 lb-in
c
a1
b1
b2
s2s2
s1 s1
b
A
B
C
D
smd402
Type
a
[mm]
a1
[mm]
b
[mm]
b1
[mm]
b2
[mm]
c
[mm]
s1
[mm]
s2
[mm]
m
[kg]
ESMD371L2YXA
ESMD371L4TXA
93 84 146 128 17 100 15 50 0.6
ESMD751L2YXA
ESMD751L4TXA
93 84 146 128 17 120 15 50 0.9
ESMD112L4TXA 93 84 146 128 17 146 15 50 1.0
ESMD112L2YXA 114 105 146 128 17 133 15 50 1.4
ESMD152L4TXA 114 105 146 128 17 122 15 50 1.4
ESMD222L4TXA 114 105 146 128 17 139 15 50 1.4
ESMD152L2YXA, ESMD222L2YXA
ESMD302L2TXA
ESMD302L4TXA
114 105 146 128 17 171 15 50 2.0
ESMD402L2TXA
ESMD402L4TXA, ESMD552L4TXA
114 105 146 100 17 171 15 50 2.0
ESMD552L2TXA, ESMD752L2TXA
ESMD752L4TXA, ESMD113L4TXA
146 137 197 140 17 182 30 100 3.2
ESMD113L2TXA, ESMD153L2TXA
ESMD153L4TXA... ESMD223L4TXA
195 183 248 183 23 203 30 100 6.4
WARNING!
Drives must not be installed where subjected to adverse environmental conditions
such as: combustible, oily, or hazardous vapors or dust; excessive moisture;
excessive vibration or excessive temperatures. Contact Lenze for more information.
3 Installation
3.1 Mechanical installation
3.1.1 Dimensions and mounting
