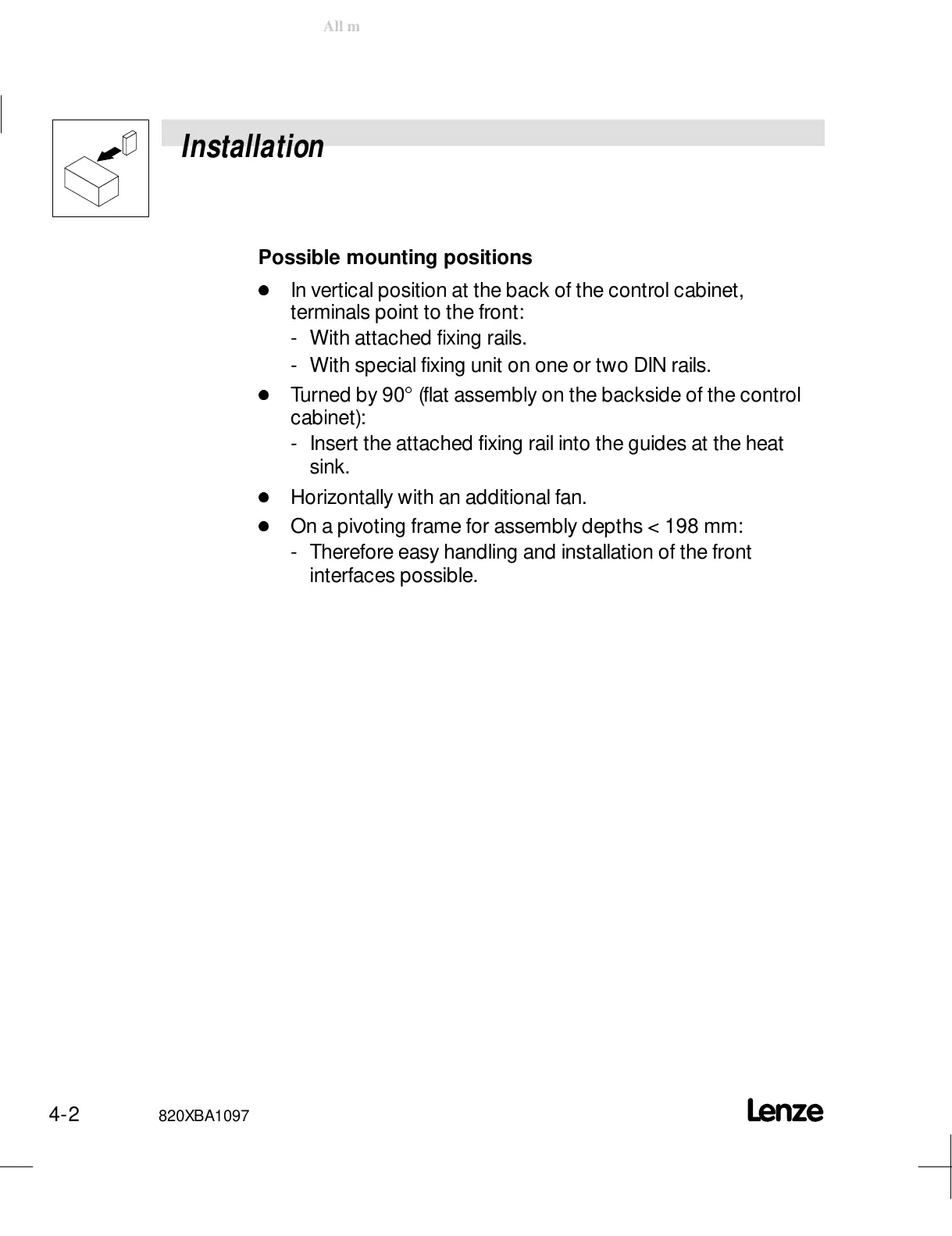

Installation
4-2 820XBA1097
Possible mounting positions
-
In vertical position at the back of the control cabinet,
terminals point to the front:
- With attached fixing rails.
- With special fixing unit on one or two DIN rails.
-
Turned by 90
(flat assembly on the backside of the control
cabinet):
- Insert the attached fixing rail into the guides at the heat
sink.
-
Horizontally with an additional fan.
-
On a pivoting frame for assembly depths < 198 mm:
- Therefore easy handling and installation of the front
interfaces possible.
