Mechanical installation
Preparation
Mounting of motors to gearboxes with an adapter
4
28
Lenze ¯ MA 12.0014 ¯ 5.1

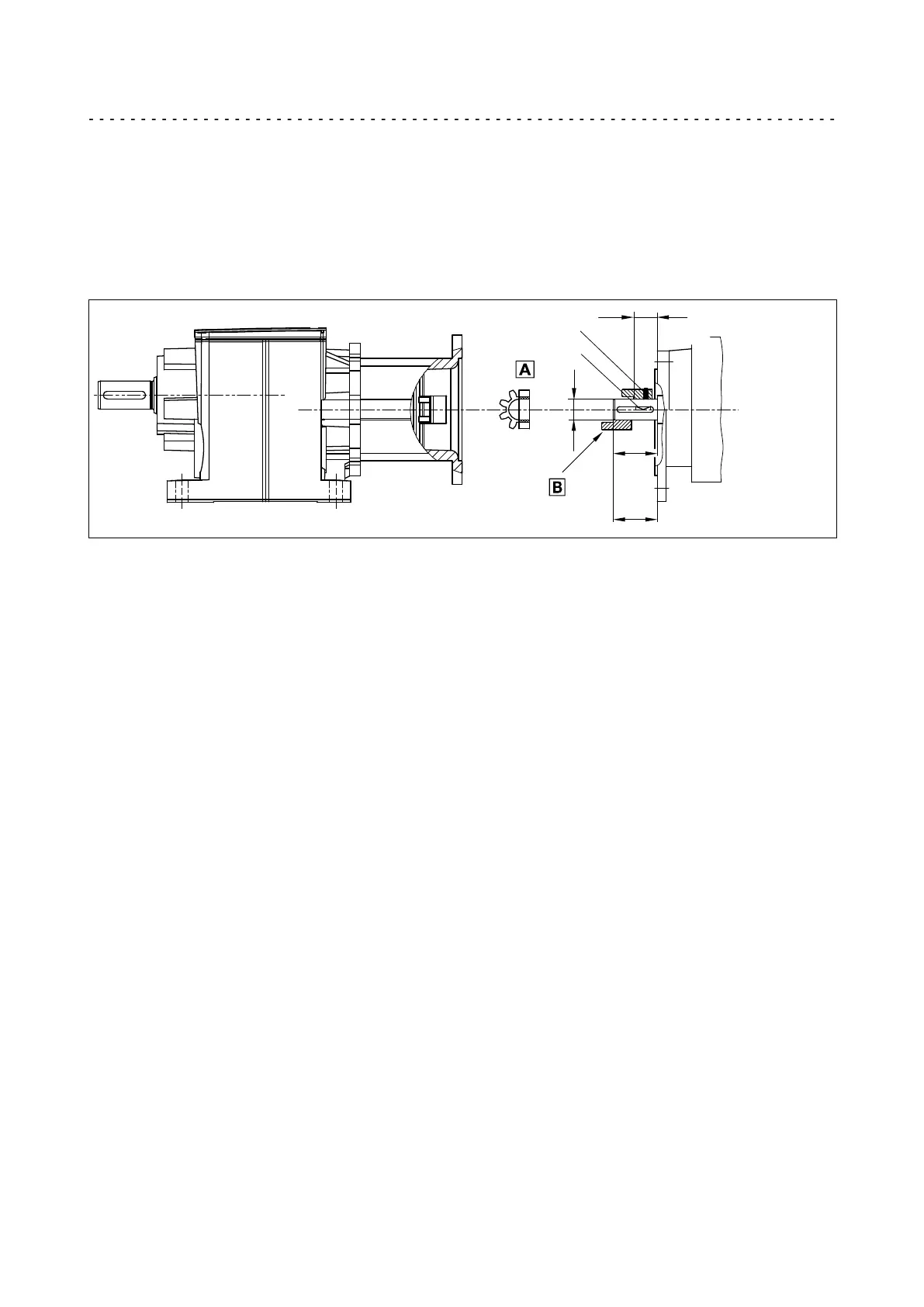

4.3.6 Mounting of motors to gearboxes with an adapter and a flexible coupling
When mounting a motor to an adapter, be sure to observe a fully circumferential
contact of the flange faces, thus ensuring that there is no aperture to the interior of the
adapter.
With higher degrees of protection or when there is a risk of dirt or humidity entering,
additionally seal the contact surfaces with a suitable sealant.
B14/ FT
B5/FF
m
l
1
d
ø
2
m
g500−H_X−002.iso
0
Spider / gear rim 1 Locking screw
1
Coupling hub 2 Keyway
