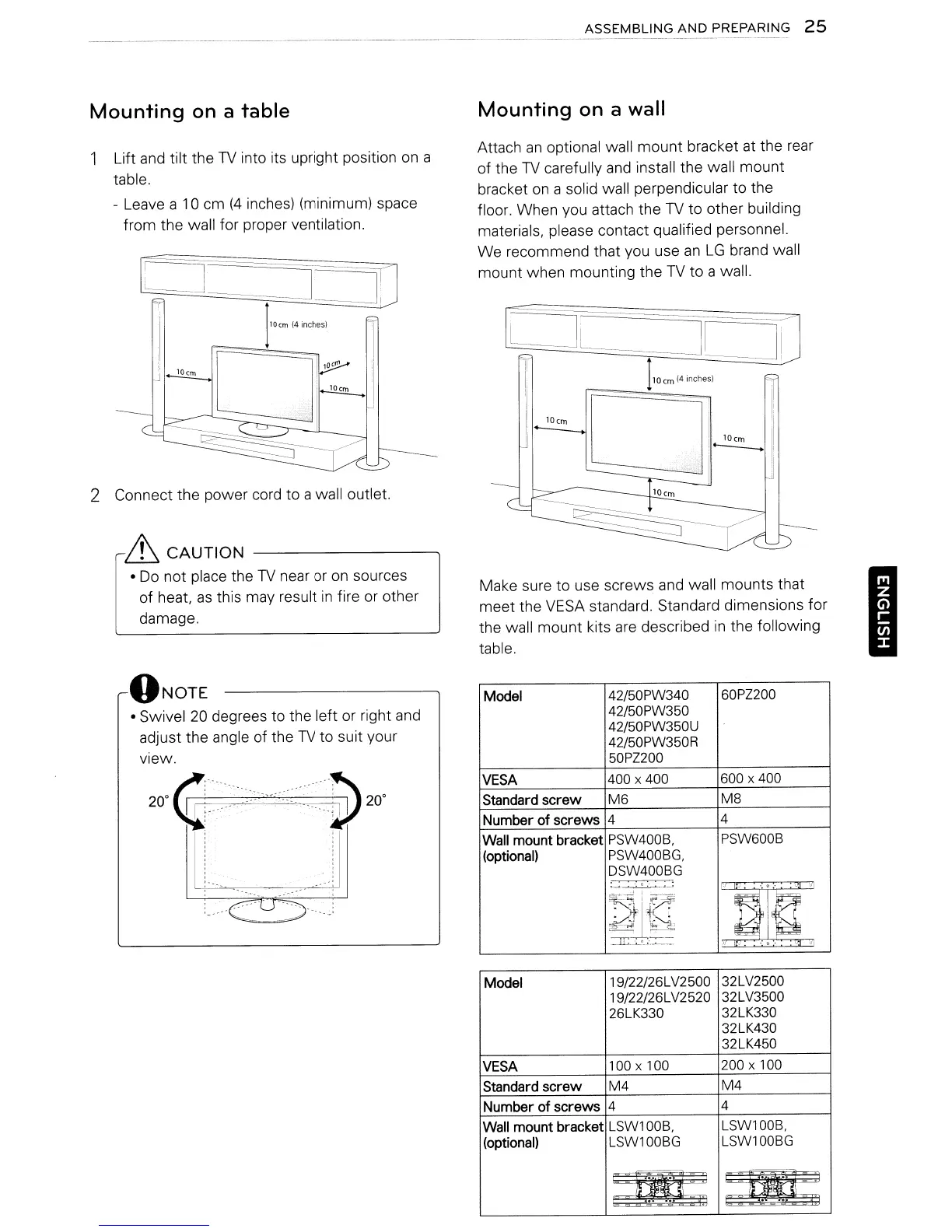

Mounting
on
a
table
Lift and tilt the
TV
into its upright position
on
a
table.
- Leave a 10 cm
(4
inches) (minimum) space
from the wall for proper ventilation.
CJ:
.J
lOcm
2 Connect the power cord to a wall outlet.
&
CAUTION
•
Do
not place the
TV
near or
on
sources
of heat,
as
this may result
in
fire or other
damage.
.---0
NOTE
• Swivel
20
degrees to the left or right and
adjust the angle of the
TV
to suit your
view.
20°
~I
:····>::;·
..
<::··/~I
20°
~<.-c.
__
...
~
I
iii
~.
'.... ---
_.'
......
····u··;)
.....
ASSEMBLING
AND
PREPARING
25
Mounting
on
a wall
Attach
an
optional wall mount bracket at the rear
of the
TV
carefully
and
install the wall mount
bracket
on
a solid wall perpendicular to the
floor. When you attach the
TV
to other building
materials, please contact qualified personnel.
We recommend that you use
an
LG
brand wall
mount when mounting the
TV
to a wall.
Make sure to use screws and wall mounts that
meet the
VESA
standard. Standard dimensions for
the wall mount kits are described
in
the following
table.
Model 42/50PW340
60PZ200
42/50PW350
42/50PW350U
42/50PW350R
50PZ200
VESA
400 x 400 600 x 400
Standard
screw
M6 M8
Number
of
screws
4 4
Wall mount bracket
PSW400B,
PSW600B
(optional) PSW400BG,
DSW400BG
..
'.0;
JJllt
~I~
J
'"
=rr:=
...
_;.~._
•
:0'
Model 19/22/26LV2500 32LV2500
19/22/26LV2520 32LV3500
26LK330 32LK330
32LK430
32LK450
VESA 100 x 100 200 x 100
Standard
screw
M4
M4
Number
of
screws
4 4
Wall mount bracket LSW100B, LSW100B,
(optional)
LSW100BG LSW100BG
~
~
I
