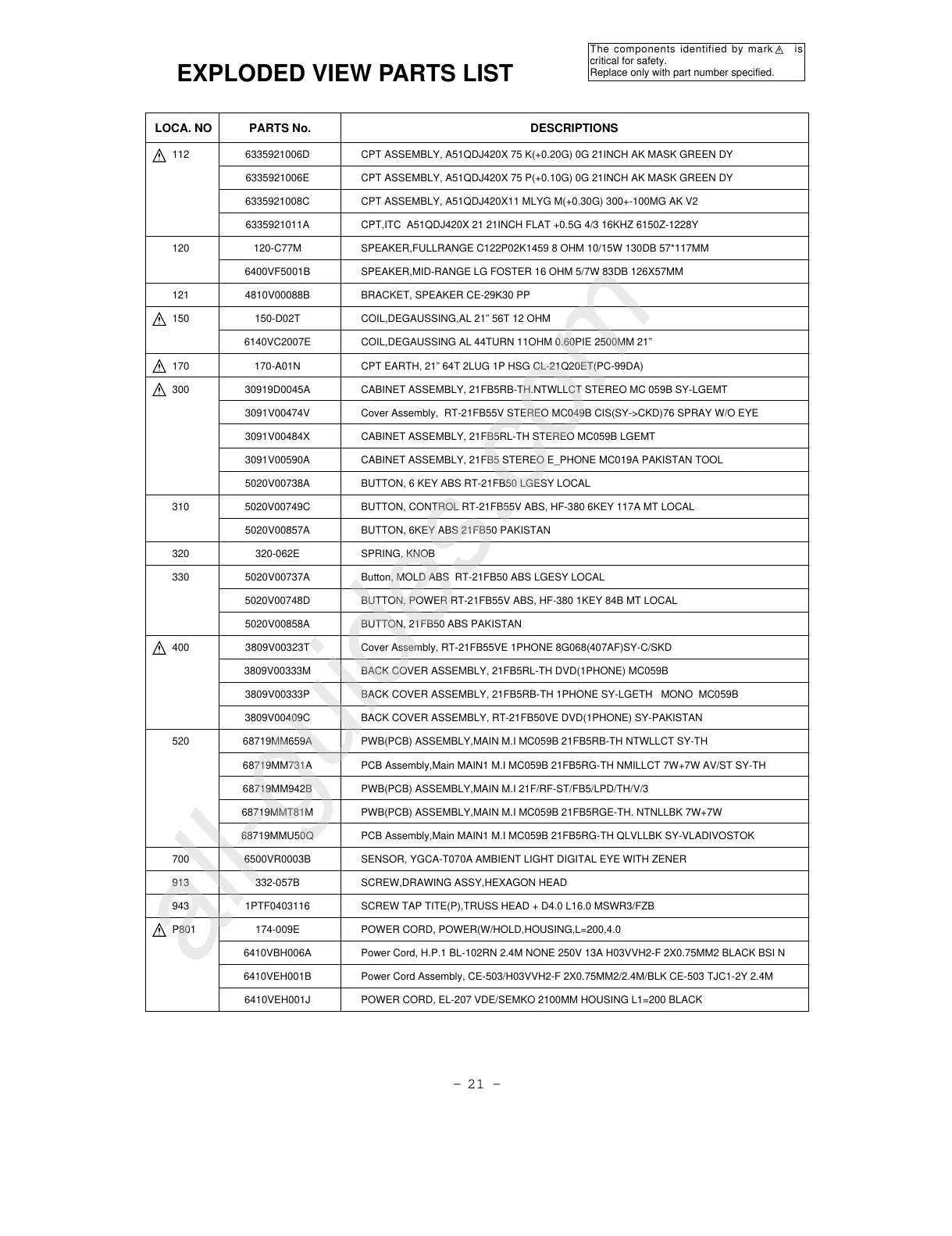

EXPLODED VIEW PARTS LIST
LOCA. NO PARTS No. DESCRIPTIONS
112 6335921006D CPT ASSEMBLY, A51QDJ420X 75 K(+0.20G) 0G 21INCH AK MASK GREEN DY
6335921006E CPT ASSEMBLY, A51QDJ420X 75 P(+0.10G) 0G 21INCH AK MASK GREEN DY
6335921008C CPT ASSEMBLY, A51QDJ420X11 MLYG M(+0.30G) 300+-100MG AK V2
6335921011A CPT,ITC A51QDJ420X 21 21INCH FLAT +0.5G 4/3 16KHZ 6150Z-1228Y
120 120-C77M SPEAKER,FULLRANGE C122P02K1459 8 OHM 10/15W 130DB 57*117MM
6400VF5001B SPEAKER,MID-RANGE LG FOSTER 16 OHM 5/7W 83DB 126X57MM
121 4810V00088B BRACKET, SPEAKER CE-29K30 PP
150 150-D02T COIL,DEGAUSSING,AL 21” 56T 12 OHM
6140VC2007E COIL,DEGAUSSING AL 44TURN 11OHM 0.60PIE 2500MM 21”
170 170-A01N CPT EARTH, 21” 64T 2LUG 1P HSG CL-21Q20ET(PC-99DA)
300 30919D0045A CABINET ASSEMBLY, 21FB5RB-TH.NTWLLCT STEREO MC 059B SY-LGEMT
3091V00474V Cover Assembly, RT-21FB55V STEREO MC049B CIS(SY->CKD)76 SPRAY W/O EYE
3091V00484X CABINET ASSEMBLY, 21FB5RL-TH STEREO MC059B LGEMT
3091V00590A CABINET ASSEMBLY, 21FB5 STEREO E_PHONE MC019A PAKISTAN TOOL
5020V00738A BUTTON, 6 KEY ABS RT-21FB50 LGESY LOCAL
310 5020V00749C BUTTON, CONTROL RT-21FB55V ABS, HF-380 6KEY 117A MT LOCAL
5020V00857A BUTTON, 6KEY ABS 21FB50 PAKISTAN
320 320-062E SPRING, KNOB
330 5020V00737A Button, MOLD ABS RT-21FB50 ABS LGESY LOCAL
5020V00748D BUTTON, POWER RT-21FB55V ABS, HF-380 1KEY 84B MT LOCAL
5020V00858A BUTTON, 21FB50 ABS PAKISTAN
400 3809V00323T Cover Assembly, RT-21FB55VE 1PHONE 8G068(407AF)SY-C/SKD
3809V00333M BACK COVER ASSEMBLY, 21FB5RL-TH DVD(1PHONE) MC059B
3809V00333P BACK COVER ASSEMBLY, 21FB5RB-TH 1PHONE SY-LGETH MONO MC059B
3809V00409C BACK COVER ASSEMBLY, RT-21FB50VE DVD(1PHONE) SY-PAKISTAN
520 68719MM659A PWB(PCB) ASSEMBLY,MAIN M.I MC059B 21FB5RB-TH NTWLLCT SY-TH
68719MM731A PCB Assembly,Main MAIN1 M.I MC059B 21FB5RG-TH NMILLCT 7W+7W AV/ST SY-TH
68719MM942B PWB(PCB) ASSEMBLY,MAIN M.I 21F/RF-ST/FB5/LPD/TH/V/3
68719MMT81M PWB(PCB) ASSEMBLY,MAIN M.I MC059B 21FB5RGE-TH. NTNLLBK 7W+7W
68719MMU50Q PCB Assembly,Main MAIN1 M.I MC059B 21FB5RG-TH QLVLLBK SY-VLADIVOSTOK
700 6500VR0003B SENSOR, YGCA-T070A AMBIENT LIGHT DIGITAL EYE WITH ZENER
913 332-057B SCREW,DRAWING ASSY,HEXAGON HEAD
943 1PTF0403116 SCREW TAP TITE(P),TRUSS HEAD + D4.0 L16.0 MSWR3/FZB
P801 174-009E POWER CORD, POWER(W/HOLD,HOUSING,L=200,4.0
6410VBH006A Power Cord, H.P.1 BL-102RN 2.4M NONE 250V 13A H03VVH2-F 2X0.75MM2 BLACK BSI N
6410VEH001B Power Cord Assembly, CE-503/H03VVH2-F 2X0.75MM2/2.4M/BLK CE-503 TJC1-2Y 2.4M
6410VEH001J POWER CORD, EL-207 VDE/SEMKO 2100MM HOUSING L1=200 BLACK
The components identified by mark is
critical for safety.
Replace only with part number specified.
