- 21 -

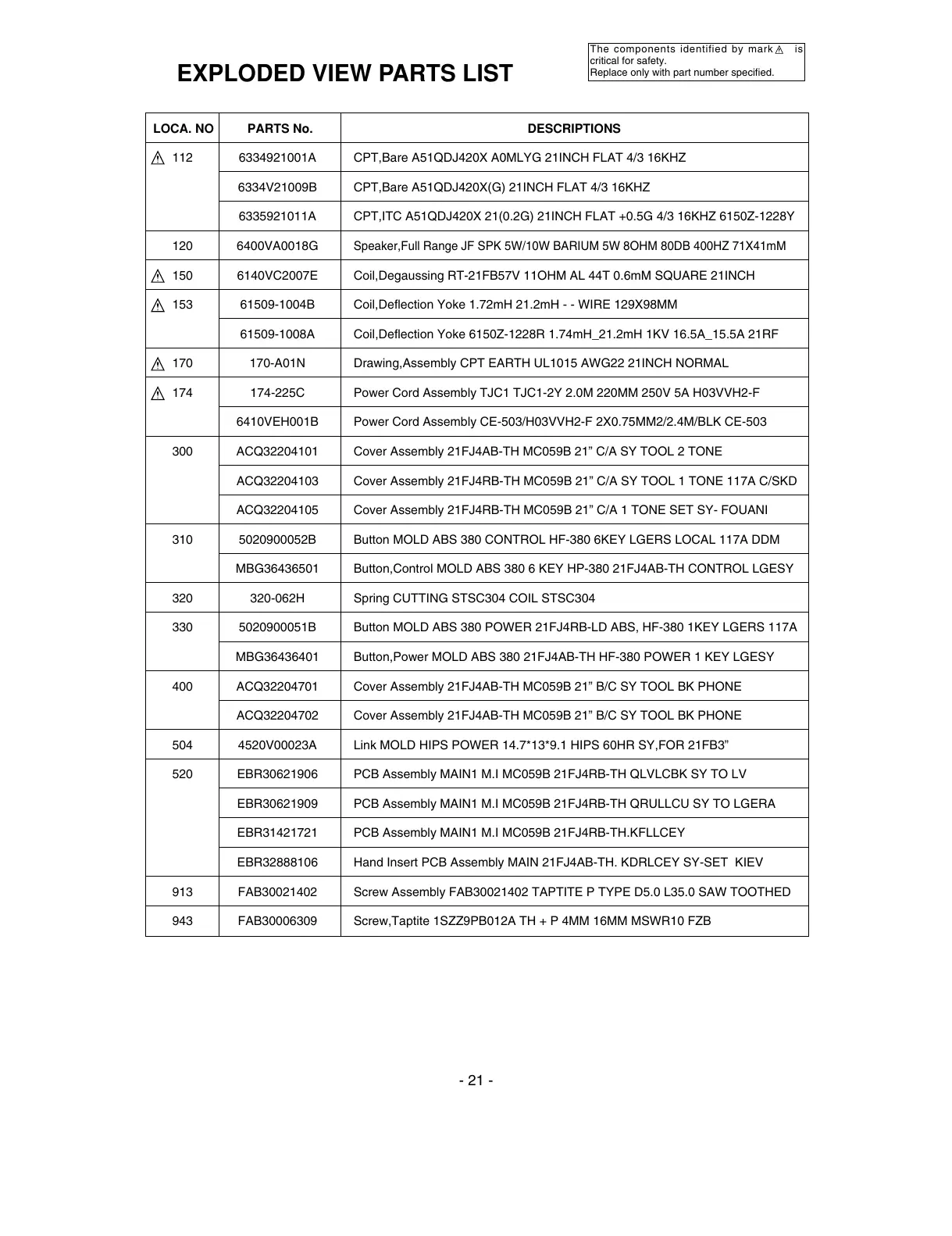

EXPLODED VIEW PARTS LIST
LOCA. NO PARTS No. DESCRIPTIONS
112 6334921001A CPT,Bare A51QDJ420X A0MLYG 21INCH FLAT 4/3 16KHZ
6334V21009B CPT,Bare A51QDJ420X(G) 21INCH FLAT 4/3 16KHZ
6335921011A CPT,ITC A51QDJ420X 21(0.2G) 21INCH FLAT +0.5G 4/3 16KHZ 6150Z-1228Y
120 6400VA0018G
Speaker,Full Range JF SPK 5W/10W BARIUM 5W 8OHM 80DB 400HZ 71X41mM
150 6140VC2007E Coil,Degaussing RT-21FB57V 11OHM AL 44T 0.6mM SQUARE 21INCH
153 61509-1004B Coil,Deflection Yoke 1.72mH 21.2mH - - WIRE 129X98MM
61509-1008A Coil,Deflection Yoke 6150Z-1228R 1.74mH_21.2mH 1KV 16.5A_15.5A 21RF
170 170-A01N Drawing,Assembly CPT EARTH UL1015 AWG22 21INCH NORMAL
174 174-225C Power Cord Assembly TJC1 TJC1-2Y 2.0M 220MM 250V 5A H03VVH2-F
6410VEH001B Power Cord Assembly CE-503/H03VVH2-F 2X0.75MM2/2.4M/BLK CE-503
300 ACQ32204101 Cover Assembly 21FJ4AB-TH MC059B 21” C/A SY TOOL 2 TONE
ACQ32204103 Cover Assembly 21FJ4RB-TH MC059B 21” C/A SY TOOL 1 TONE 117A C/SKD
ACQ32204105 Cover Assembly 21FJ4RB-TH MC059B 21” C/A 1 TONE SET SY- FOUANI
310 5020900052B Button MOLD ABS 380 CONTROL HF-380 6KEY LGERS LOCAL 117A DDM
MBG36436501 Button,Control MOLD ABS 380 6 KEY HP-380 21FJ4AB-TH CONTROL LGESY
320 320-062H Spring CUTTING STSC304 COIL STSC304
330 5020900051B Button MOLD ABS 380 POWER 21FJ4RB-LD ABS, HF-380 1KEY LGERS 117A
MBG36436401 Button,Power MOLD ABS 380 21FJ4AB-TH HF-380 POWER 1 KEY LGESY
400 ACQ32204701 Cover Assembly 21FJ4AB-TH MC059B 21” B/C SY TOOL BK PHONE
ACQ32204702 Cover Assembly 21FJ4AB-TH MC059B 21” B/C SY TOOL BK PHONE
504 4520V00023A Link MOLD HIPS POWER 14.7*13*9.1 HIPS 60HR SY,FOR 21FB3”
520 EBR30621906 PCB Assembly MAIN1 M.I MC059B 21FJ4RB-TH QLVLCBK SY TO LV
EBR30621909 PCB Assembly MAIN1 M.I MC059B 21FJ4RB-TH QRULLCU SY TO LGERA
EBR31421721 PCB Assembly MAIN1 M.I MC059B 21FJ4RB-TH.KFLLCEY
EBR32888106 Hand Insert PCB Assembly MAIN 21FJ4AB-TH. KDRLCEY SY-SET KIEV
913 FAB30021402 Screw Assembly FAB30021402 TAPTITE P TYPE D5.0 L35.0 SAW TOOTHED
943 FAB30006309 Screw,Taptite 1SZZ9PB012A TH + P 4MM 16MM MSWR10 FZB
The components identified by mark is
critical for safety.
Replace only with part number specified.
