MAKING CONNECTIONS
MAKING
CONNECTIONS
y
This section on MAKING CONNECTIONS
mainly uses diagrams for the LS35** models.
Connect various external devices to the TV
and switch input modes to select an external
device. For more information of external device’s
connection, refer to the manual provided with each
device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB storage
devices, PC, gaming devices, and other external
devices.
NOTE
y
The external device connection may differ
from the model.
y
Connect external devices to the TV
regardless of the order of the TV port.
y
If you record a TV programme on a DVD
recorder or VCR, make sure to connect the
TV signal input cable to the TV through a
DVD recorder or VCR. For more information
of recording, refer to the manual provided
with the connected device.
y
Refer to the external equipment’s manual for
operating instructions.
y
If you connect a gaming device to the TV,
use the cable supplied with the gaming
device.
y
In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast
or brightness. If noise is present, change
the PC output to another resolution, change
the refresh rate to another rate or adjust the
brightness and contrast on the PICTURE
menu until the picture is clear.
y
In PC mode, some resolution settings may
not work properly depending on the graphics
card.

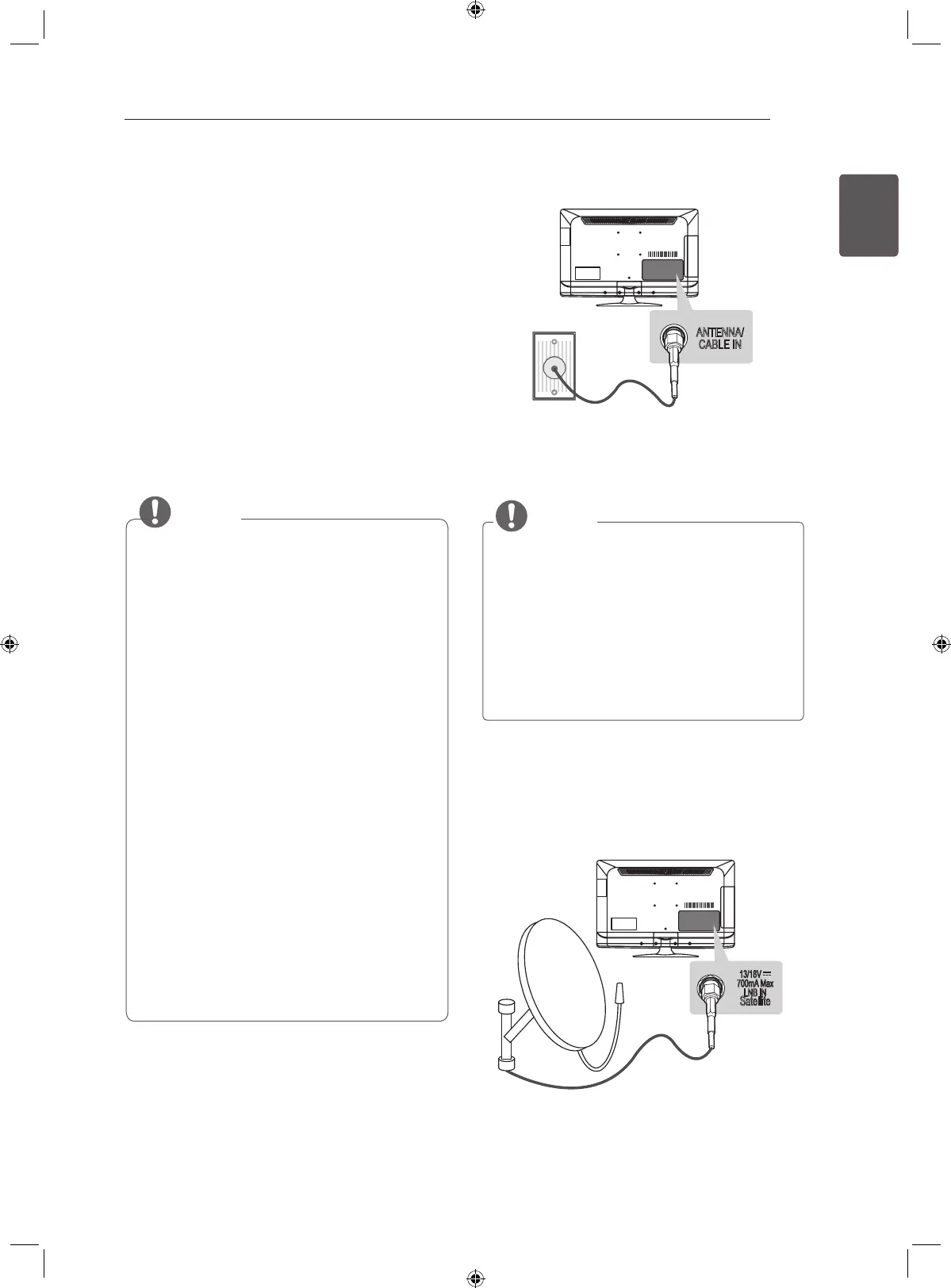

Connecting an antenna
ANTENNA/
CABLE IN
13/18V
700mA Max
LNB IN
Satellite
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
NOTE
y
Use a signal splitter to use more than 2 TVs.
y
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
y
If the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
y
An antenna cable and converter are not
supplied.
Connecting with a satellite
dish
(Only satellite models)
ANTENNA/
CABLE IN
13/18V
700mA Max
LNB IN
Satellite
Connect the TV to a satellite dish to a satellite
socket with a satellite RF cable (75 Ω).

LG 26LS3500 Specifications

General

Display diagonal	26 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Native refresh rate	50 Hz
LED backlighting type	Edge-LED
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Supported graphics resolutions	1366 x 768
Motion interpolation technology	MCI (Motion Clarity Index) 100
3D	No
Annual energy consumption	42 kWh
Product color	Black
Panel mounting interface	100 x 100 mm
Analog signal format system	-
Digital signal format system	DVB-C, DVB-T
Audio system	Dolby Digital MS10
RMS rated power	5 W
Number of speakers	2
Equalizer bands quantity	5
HDMI version	1.4
USB 2.0 ports quantity	1
Audio formats supported	AAC, AC3, LPCM, MP3
Image formats supported	JPG
Video formats supported	DIVX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	29 W
Certification	RoHS

Weight and Dimensions

Depth (with stand)	162 mm
Height (with stand)	442 mm
Weight (with stand)	5000 g
Depth (without stand)	30.1 mm
Width (without stand)	627 mm
Height (without stand)	402 mm
Weight (without stand)	4700 g
