LG 32LB550B User Manual

4
ENG
ENGLISH
4
EXTERNAL CONTROL DEVICE SETUP

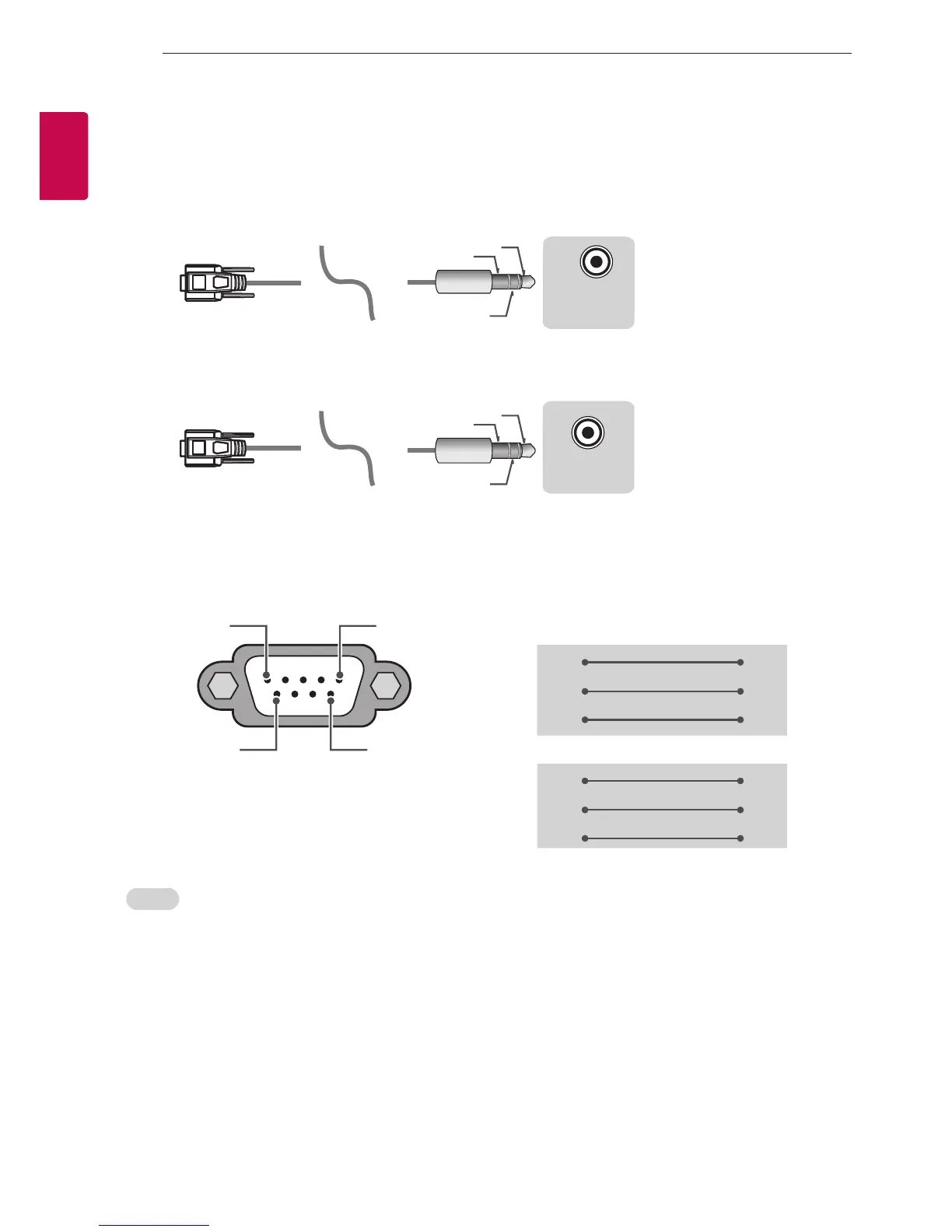

RS-232C with RS-232C Cable (Legacy)
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 55/47/39LN5450-UA,
55/50/47/42LN5400-UA, 42/39/32LN5300-UA, and 37/32LN530B-UA.
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 42/50PN4500-UA, 50/60PN5300-UF,
50/60PN6500-UA, and 60PN6550-UA.
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to OPTION and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.

LG 32LB550B Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	31.5 \
Display brightness	- cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
LED backlighting type	-
Supported video modes	1080i, 1080p, 720p
Motion interpolation technology	MCI (Motion Clarity Index) 120
3D	No
Annual energy consumption	54 kWh
Digital signal format system	DVB-C, DVB-T
Audio system	Virtual Surround
Audio decoders	Dolby Digital
RMS rated power	10 W
Number of speakers	2
HDMI version	1.4
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	DIVX HD
Product color	Black
Panel mounting interface	200 x 200 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	37 W
Sustainability certificates	ENERGY STAR
Package depth	152 mm
Package width	816 mm
Package height	530 mm
Package weight	7400 g

Weight and Dimensions

Depth (with stand)	208 mm
Height (with stand)	480 mm
Weight (with stand)	5900 g
Depth (without stand)	56.5 mm
Width (without stand)	731 mm
Height (without stand)	437 mm
Weight (without stand)	5700 g
