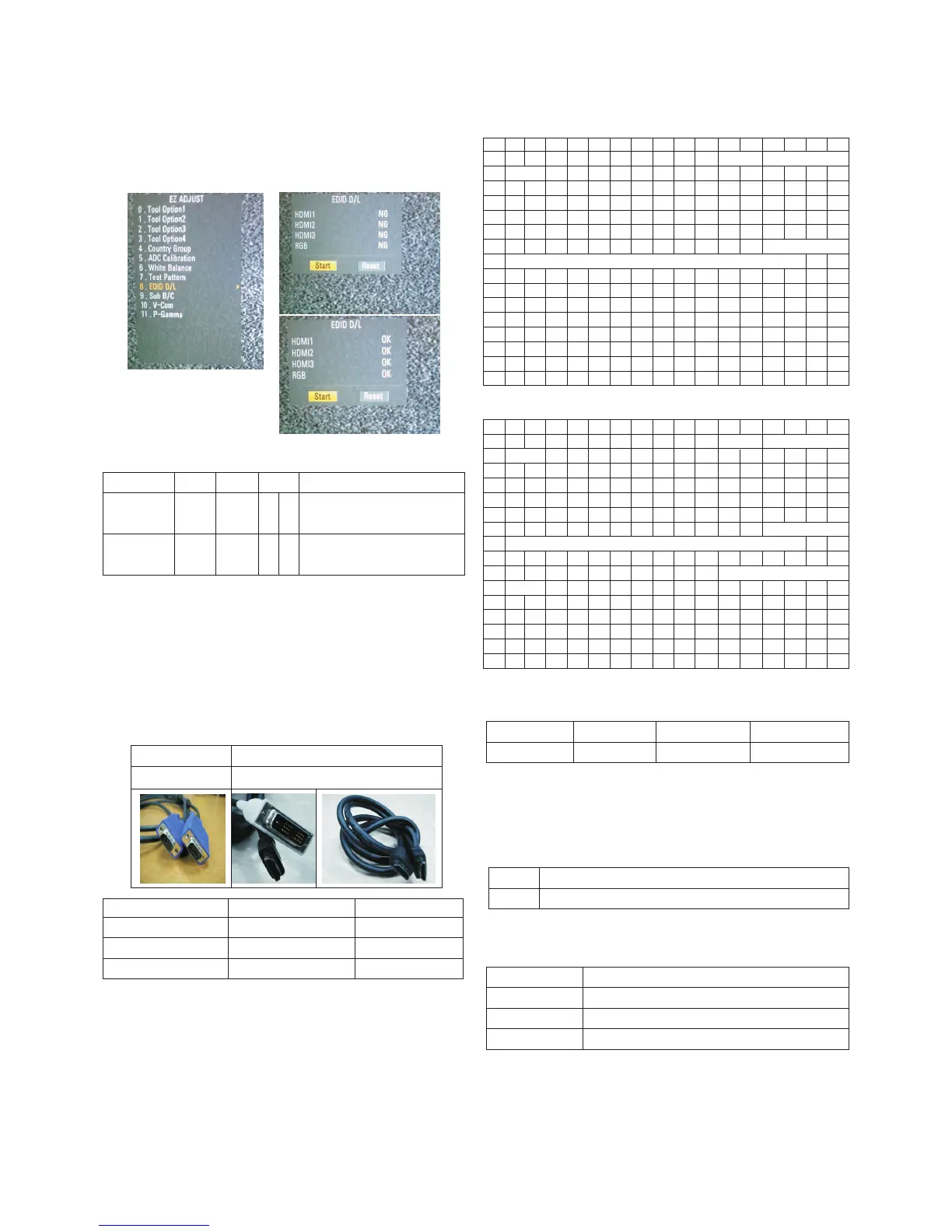

LG 32LE5300 Service Manual

- Auto Download
• After enter Service Mode by pushing “ADJ” key,
• Enter EDID D/L mode.
• Enter “START” by pushing “OK” key.
* Edid data and Model option download (RS232)
- Manual Download
* Caution
1) Use the proper signal cable for EDID Download
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
2) Never connect HDMI & D-sub Cable at the same time.
3) Use the proper cables below for EDID Writing
4) Download HDMI1, HDMI2, separately because HDMI1 is
different from HDMI2
1) FHD RGB EDID data
2) FHD HDMI EDID data
* Detail EDID Options are below
ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘02’ -> ‘02’
Year : ‘2009’ -> ‘13’
ⓓ Model Name(Hex):
ⓔ Checksum: Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)
Model Name HEX EDID Table DDC Function
FHD Model 0001 01 00 Analog/Digital
LGE Internal Use OnlyCopyright ©2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 12 -
MODEL MODEL NAME(HEX)
all 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
Item CMD1 CMD2 Data0
Download A A 0 0 When transfer the ‘Mode In’,
‘Mode In’ Carry the command.
Download A E 00 10 Automatically Download
(The use of a internal pattern)
Item
Manufacturer ID
Version
Revision
Condition
GSM
Digital : 1
Digital : 3
Data(Hex)
1E6D
01
03
D-sub to D-sub DVI-D to HDMI or HDMI to HDMI
For HDMI EDID
For Analog EDID
INPUT MODEL NAME(HEX)
HDMI1 67030C001000B82D
HDMI2 67030C002000B82D
HDMI3 67030C003000B82D
012 34 5 67 8 9 A BCD EF
00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ 01 03 68 73 41 78 0A CF 74 A3 57 4C B0 23
20 09 48 4C A1 08 00 81 80 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ 00 ⓔ
80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
E0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
012 34 5 67 8 9 A BCD EF
00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ 01 03 80 73 41 78 0A CF 74 A3 57 4C B0 23
20 09 48 4C A1 08 00 81 80 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ 01 ⓔ
80 02 03 26 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 ⓕ
A0 ⓕ E3 05 03 01 01 1D 80 18 71 1C 16 20 58 2C
B0 25 00 7E 8A 42 00 00 9E 01 1D 00 80 51 D0 0C 20
C0 40 80 35 00 7E 8A 42 00 00 1E 02 3A 80 18 71 38
D0 2D 40 58 2C 45 00 7E 8A 42 00 00 1E 66 21 50 B0
E0 51 00 1B 30 40 70 36 00 7E 8A 42 00 00 1E 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F9

LG 32LE5300 Specifications

General

Display diagonal	32 \
Display brightness	500 cd/m²
Native aspect ratio	16:9
Native refresh rate	60 Hz
Contrast ratio (dynamic)	3000000:1
Screen format adjustments	4:3, 14:9
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Annual energy consumption	109.50 kWh
Product color	Black
Tuner type	Digital
Analog signal format system	-
Digital signal format system	DVB-C, DVB-T
Audio system	Infinite Sound
RMS rated power	20 W
Number of speakers	2
HDMI version	1.3
HDMI ports quantity	4
USB 2.0 ports quantity	1
Consumer Electronics Control (CEC)	Anynet+
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	DIVX
Power consumption (standby)	0.2 W
Power consumption (typical)	140 W
Certification	RoHS

Weight and Dimensions

Depth (with stand)	221 mm
Height (with stand)	558 mm
Weight (with stand)	12700 g
Depth (without stand)	39.9 mm
Width (without stand)	785 mm
Height (without stand)	500 mm
Weight (without stand)	10500 g
