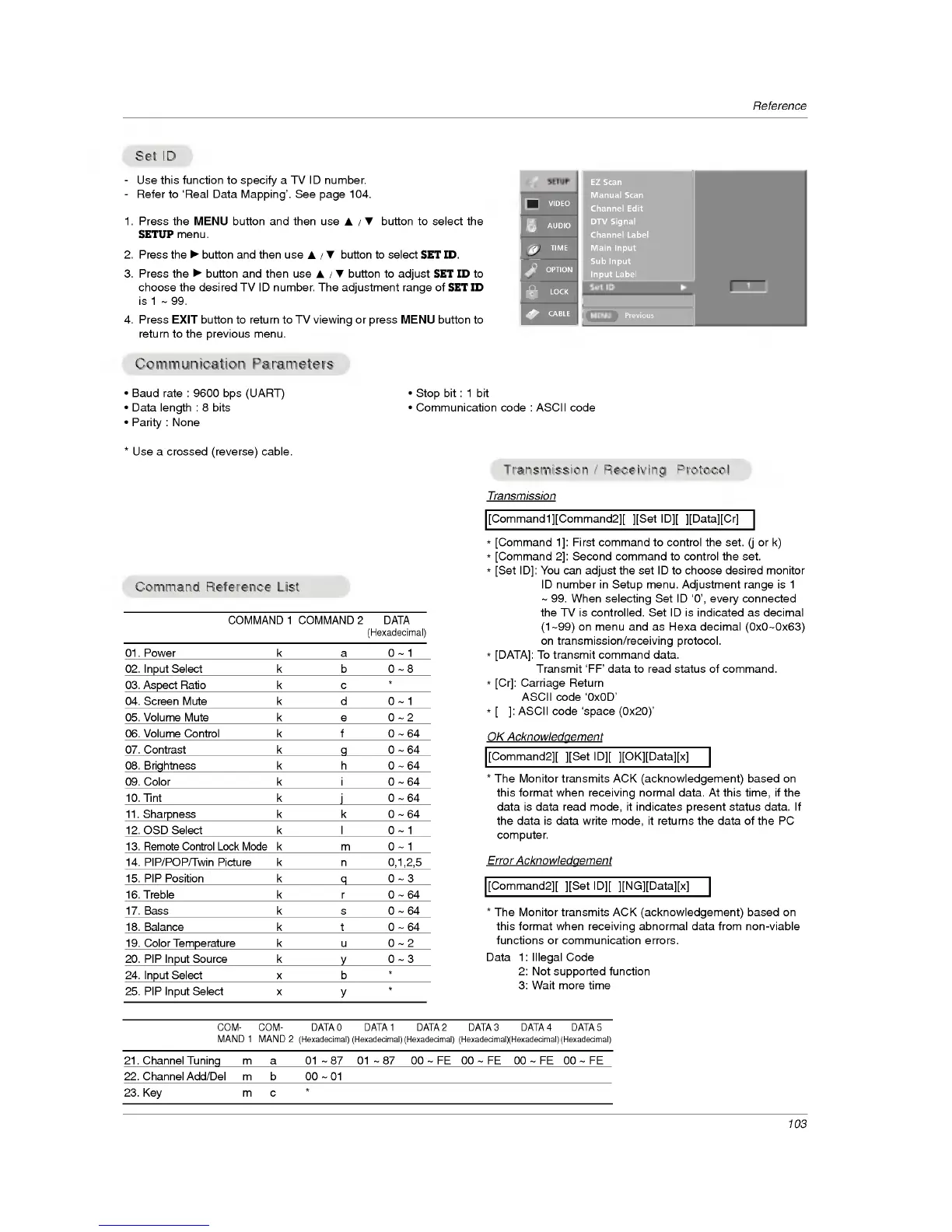

LG 37LP1D User Manual

103
Reference
Set ID
Set ID
-
Use this function to
specify
a TV ID number.
-
Refer to 'Real Data
Mapping'.
See
page
104.
?
Baud rate : 9600
bps (UART)
?
Data
length
: 8 bits
?
Parity
: None
*
Use a crossed
(reverse)
cable.
?Stopbit:1bit
?
Communication code : ASCII code
Communication Parameters
Communication Parameters
1. Press the MENU button and then use D
/
E
button to select the
SETUP
menu.
2. Press the
G
button and then use D
/
E
button to select
SET
ID.
3. Press the
G
button and then use D
/
E
button to
adjust
SET
ID to
choose the desired TV ID number. The
adjustment range
of
SET
ID
is1~99.
4. Press EXIT button to return to TV
viewing
or
press
MENU button to
return to the
previous
menu.
Transmission
*
[Command 1]:
First command to control the set.
(j
or
k)
*
[Command 2]:
Second command to control the set.
*
[Set ID]:
You can
adjust
the set ID to choose desired monitor
ID number in
Setup
menu.
Adjustment range
is 1
~
99. When
selecting
Set ID
'0',
every
connected
the TV is controlled. Set ID is indicated as decimal
(1~99)
on menu and as Hexa decimal
(0x0~0x63)
on
transmission/receiving protocol.
*
[DATA]:
To transmit command data.
Transmit 'FF' data to read status of command.
*
[Cr]: Carriage
Return
ASCII code '0x0D'
*
[ ]:
ASCII code
'space (0x20)'
[Command1][Command2][ ][Set ID][ ][Data][Cr]
T
T
ransmission /
Receiving
Protocol
ransmission /
Receiving
Protocol
OK
Acknowledgement
*
The Monitor transmits ACK
(acknowledgement)
based on
this format when
receiving
normal data. At this
time,
if the
data is data read
mode,
it indicates
present
status data. If
the data is data write
mode,
it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error
Acknowledgement
*
The Monitor transmits ACK
(acknowledgement)
based on
this format when
receiving
abnormal data from non-viable
functions or communication errors.
[Command2][ ][Set ID][ ][NG][Data][x]
Data 1:
Illegal
Code
2: Not
supported
function
3: Wait more time
01. Power k a 0~1
02.
Input
Select k b 0~8
03.
Aspect
Ratio k c
*
04. Screen Mute k d 0~1
05. Volume Mute k e 0~2
06. Volume Control k f 0~64
07. Contrast k
g
0~64
08.
Brightness
k h 0~64
09. Color k i 0~64
10. Tint k
j
0~64
11.
Sharpness
k k 0~64
12. OSD Select k l 0~1
13. Remote Control Lock Mode k m 0~1
14. PIP/POP/Twin Picture k n
0,1,2,5
15. PIP Position k
q
0~3
16. Treble k r 0~64
17. Bass k s 0~64
18. Balance k t 0~64
19. Color
Temperature
k u 0~2
20. PIP
Input
Source k
y
0~3
24.
Input
Select x b
*
25. PIP
Input
Select x
y
*
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
21.ChannelTuning
m a 01~87 01~87 00~FE00~FE 00~FE 00~FE
22. Channel Add/Del m b 00
~
01
23.
Key
mc
*
COM-
MAND 2
COM-
MAND 1
DATA 0
(Hexadecimal)
DATA 1
(Hexadecimal)
DATA 2
(Hexadecimal)
DATA 3
(Hexadecimal)
DATA 4
(Hexadecimal)
DATA 5
(Hexadecimal)
Command Reference List
Command Reference List
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
CABLE
Previous
MENU
EZ Scan
Manual Scan
Channel Edit
DTV
Signal
Channel Label
Main
Input
Sub
Input
Input
Label
Set ID
G
1
