EXTERNAL CONTROL DEVICE SETUP
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC
)
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2

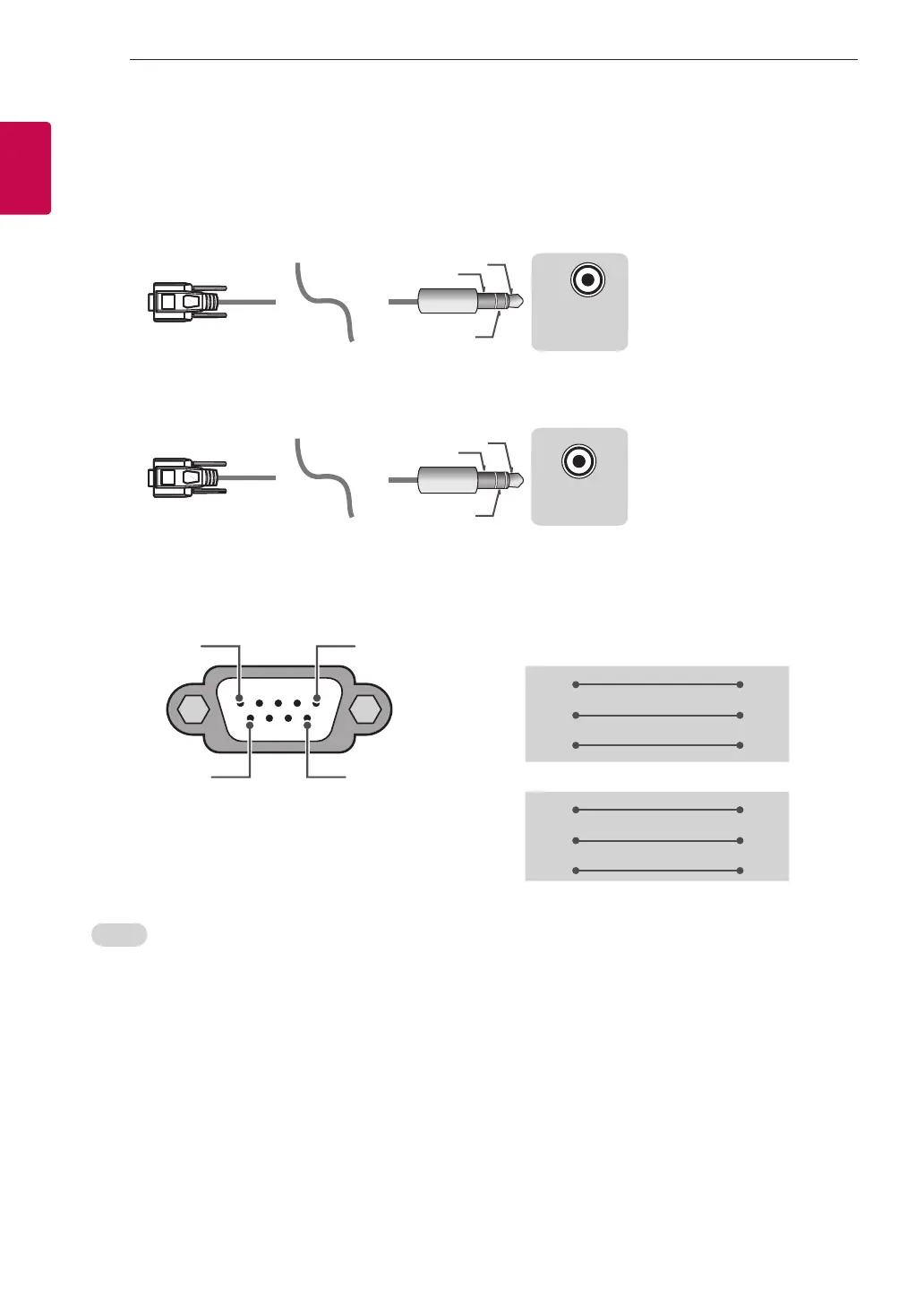

Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)

LG 42LF5800 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	42 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Supported video modes	1080p
Display diagonal (metric)	107 cm
Screen format adjustments	4:3, 14:9, Zoom
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Annual energy consumption	76 kWh
Tuner type	Analog & digital
Analog signal format system	-
Digital signal format system	DVB-C, DVB-T
Smart modes	Game, Movie, Sports, Standard, Vivid
Operating system installed	NetCast OS
Sound modes	Movie, Music, Sports, Standard
Audio system	Virtual Surround Plus
Audio decoders	Dolby Digital, DTS
RMS rated power	20 W
Number of speakers	2
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	SimpLink
Audio formats supported	AAC, AC3, EAC3, HE-AAC, MP2, MP3, PCM, WMA
Image formats supported	JPG
Video formats supported	DIVX HD
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.3 W
Power consumption (typical)	52 W

Weight and Dimensions

Depth (with stand)	218 mm
Height (with stand)	610 mm
Weight (with stand)	9500 g
Depth (without stand)	55.5 mm
Width (without stand)	961 mm
Height (without stand)	567 mm
Weight (without stand)	9200 g
