29
ENG
ENGLISH

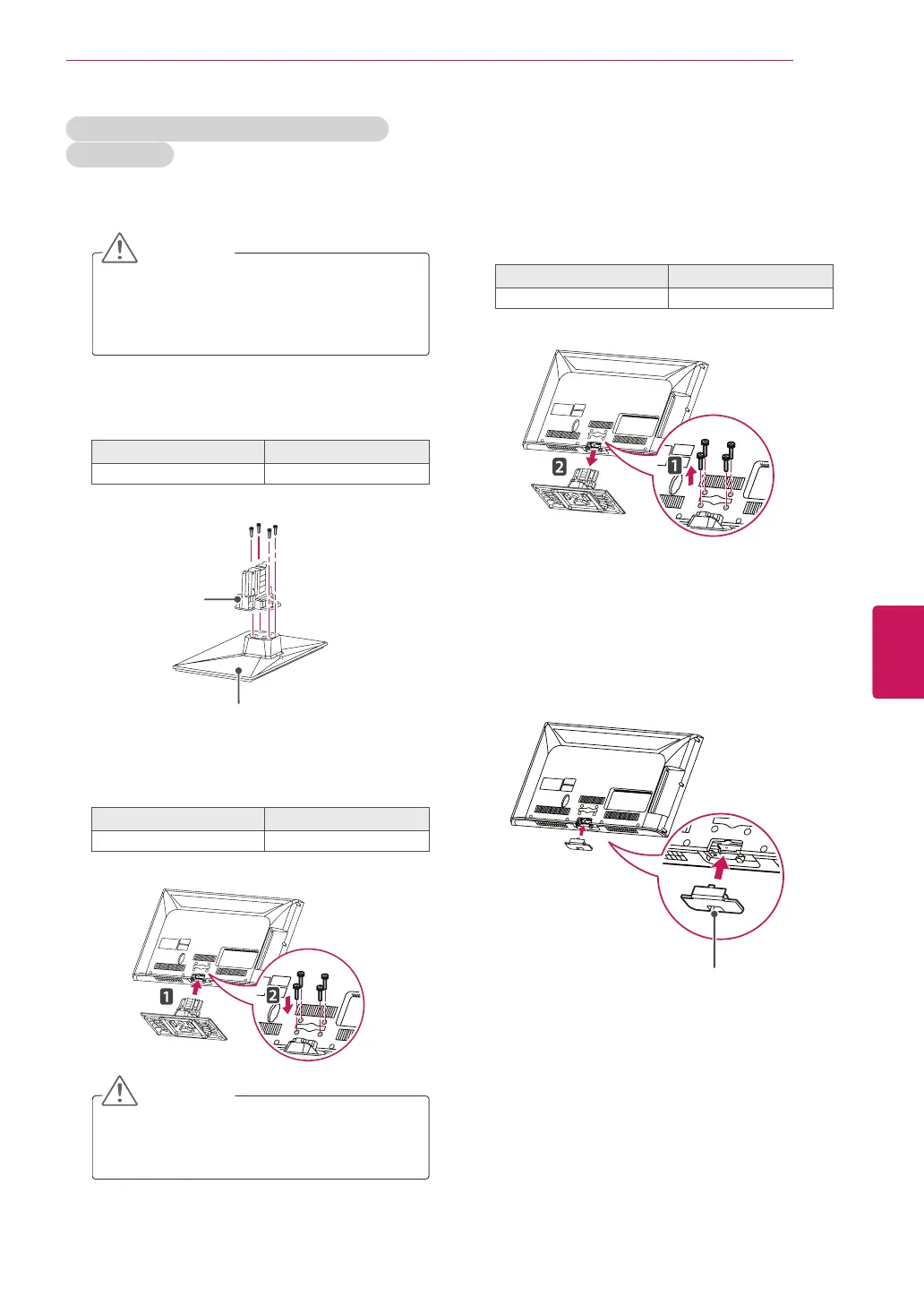

ASSEMBLING AND PREPARING
LK330, LK430, LK450, LK451C, LK453C,
LK520 series
1
Lay the TV with the screen side down on a flat
surface.
CAUTION
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
2
Assemble the parts of the STAND BODY with
the STAND BASE of the TV.
Screw for assembly Number of screws
M4 x 20 4
3
Secure the TV and the stand with the 4
screws.
Screw for assembly Number of screws
M4 x 20 4
CAUTION
Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
To detach the stand,
1
Lay the TV with the screen side down on a flat
surface.
2
Remove the 4 screws and pull the stand away
from the TV.
Screw for assembly Number of screws
M4 x 20 4
3
Push the supplied protection cover into the
opening at the bottom of the TV until it locks in
place.
This will protect the opening from accumulating
dust and dirt.
When installing the wall mounting bracket, use
the Protection cover.
Protection cover
Stand Body
Stand Base
To Next Page
