LG 42LN5700 User Manual

4
ENG
ENGLISH
4

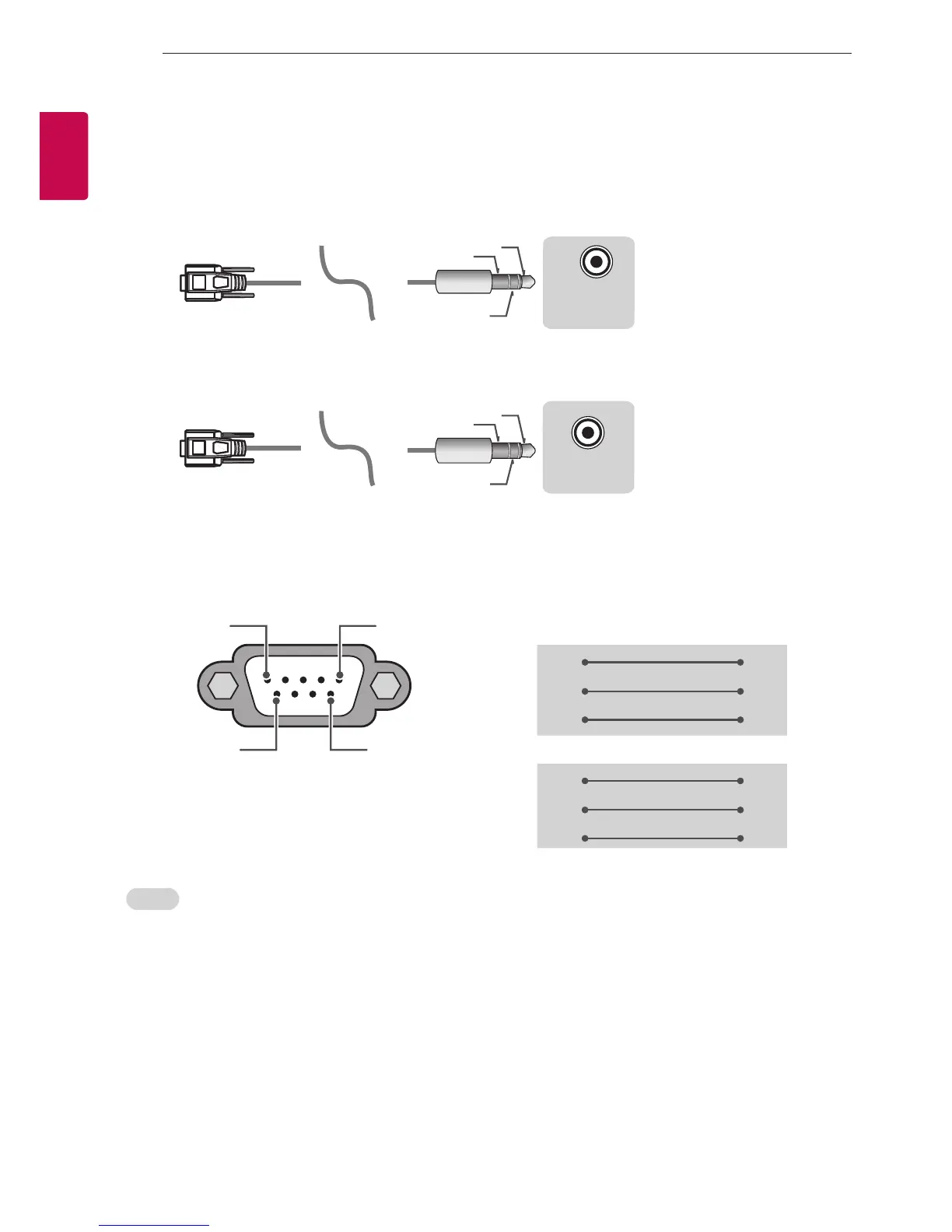

EXTERNAL CONTROL DEVICE SETUP
RS-232C with RS-232C Cable (Legacy)
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 55/47/39LN5450-UA,
55/50/47/42LN5400-UA, 42/39/32LN5300-UA, and 37/32LN530B-UA.
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 42/50PN4500-UA, 50/60PN5300-UF,
50/60PN6500-UA, and 60PN6550-UA.
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to OPTION and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.

LG 42LN5700 Specifications

General

Display diagonal	42 \
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Supported video modes	1080i, 1080p, 720p
Screen format adjustments	4:3
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	TruMotion 120 Hz
3D	No
Photo effects	Cinema, Vivid
Playback modes	Zoom
Volume control	Digital
Audio decoders	Dolby Digital, Dolby Digital DTS
RMS rated power	20 W
Number of speakers	2
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	SimpLink
Smart modes	Cinema, Game
Lifestyle apps	Skype
Audio formats supported	AAC, AC3, MP3, PCM
Video formats supported	DIVX, DIVX HD, MPEG
Control type	Buttons
Product color	Black
Panel mounting interface	200 x 200 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	41.4 W
Sustainability certificates	ENERGY STAR
Package depth	175 mm
Package width	1150 mm
Package height	659.8 mm
Package weight	14197 g

Weight and Dimensions

Depth (with stand)	234.9 mm
Height (with stand)	627.8 mm
Weight (with stand)	10704 g
Depth (without stand)	78.9 mm
Width (without stand)	967.9 mm
Height (without stand)	565.9 mm
Weight (without stand)	9616 g
