MAKING CONNECTIONS
Euro Scart connection

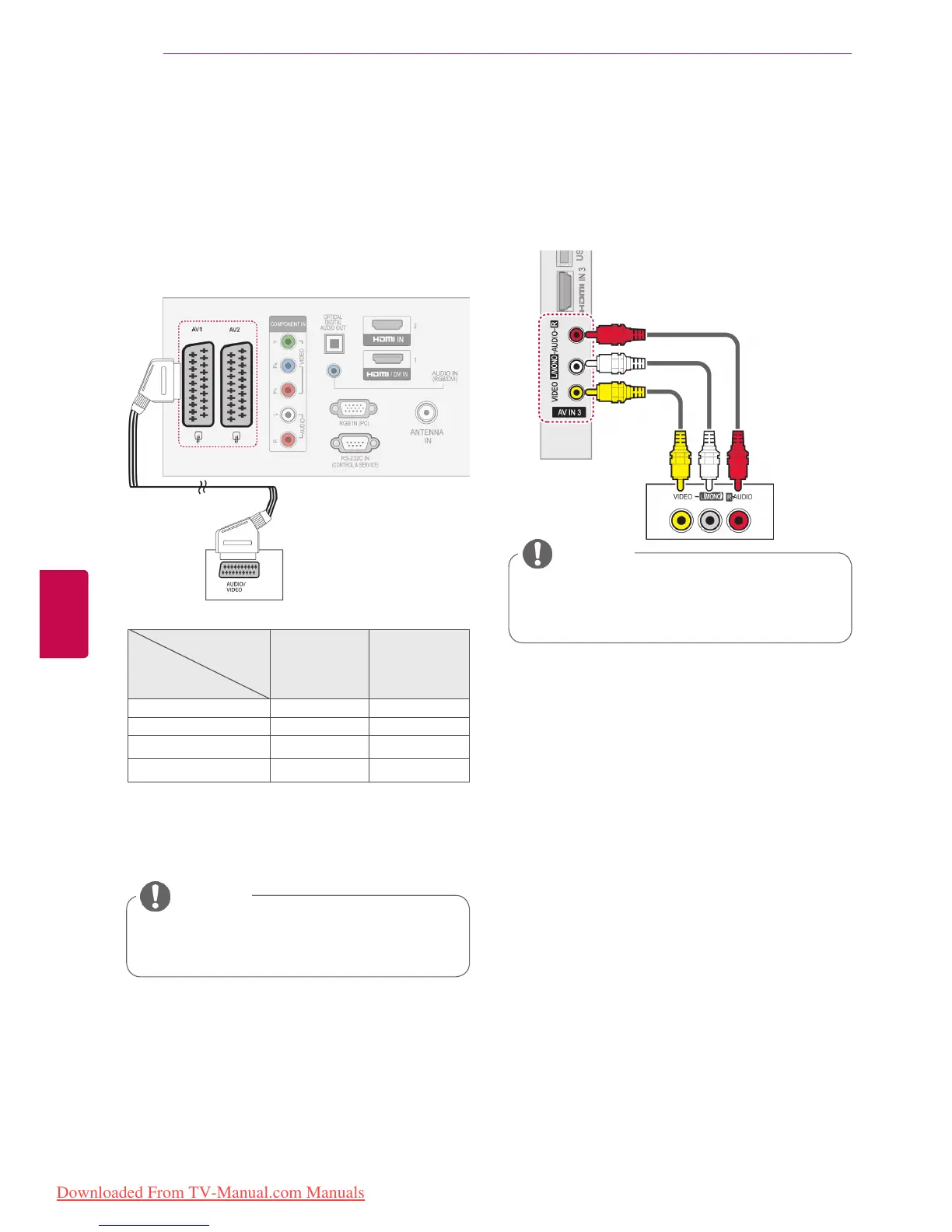

Transmits the video and audio signals from an
external device to the TV set. Connect the external
device and the TV set with the Euro Scart cable as
shown on the following illustration. To display im-
ages by using progressive scan, make sure to use
the Euro Scart cable.
y
Any Euro scart cable used must be signal
shielded.
NOTE
Output
Type
Current
input model
AV1
(TV Out
1
)
AV2
(Monitor Out
2
)
Digital TV X O
Analogue TV, AV Analogue TV O
Component / RGB Analogue TV X
HDMI Analogue TV X
1 TV Out : Outputs analogue TV signals.
2 Monitor Out: Outputs the current screen image.
Composite connection
Transmits the analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
cable as shown in the following illustration.
y
If you have a mono VCR, connect the
audio cable from the VCR to the AUDIO L/
MONO jack of the TV.
NOTE
