ENGENGLISH
15
MAKING CONNECTIONS
ANTENNA/
CABLE IN
PB PRYRL
VIDEO AUDIO
OPTICAL AUDIO IN
VIDEO
MONO
( )
AUDIOLR
LAN
SERVICE
ONLY
P
B
P
R
VIDE
O
/Y
PC-AUDIO IN
L/MONO
AUDIO R
COMPONENT IN
/AV IN
Other connections
y
Image shown may differ from your TV.

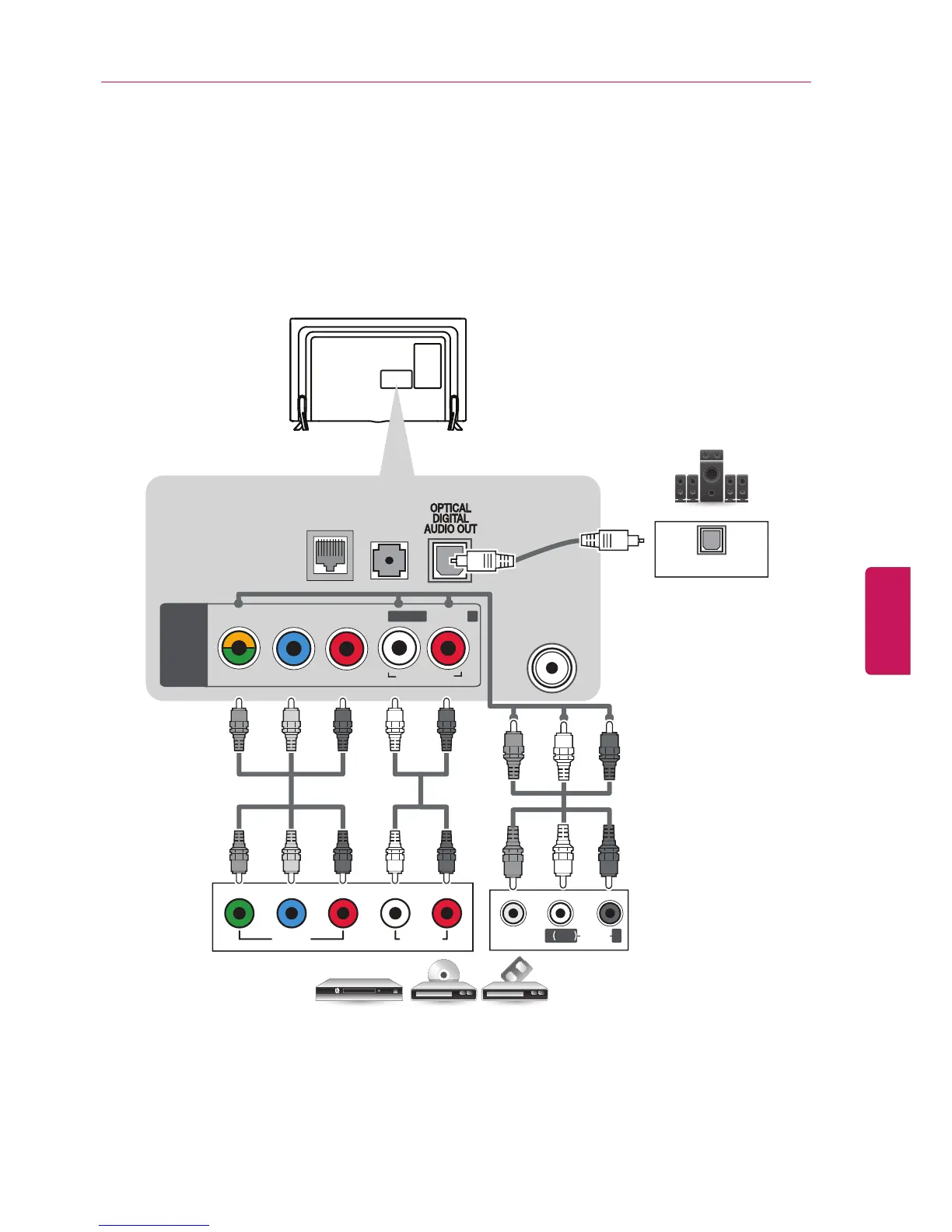

Connect your TV to external devices. For the best picture and audio quality, connect the external
device and the TV with the HDMI cable as shown. Depending upon the model, a cable may not be
provided.
Digital Audio
System
GREEN
GREEN
BLUE
BLUE
RED
RED
YELLOW
YELLOW
WHITE
WHITE
WHITE
WHITE
RED
RED
RED RED
VCR / DVD / Blu-Ray /
HD Cable Box
