LG 49UB85 Series User Manual

A-16

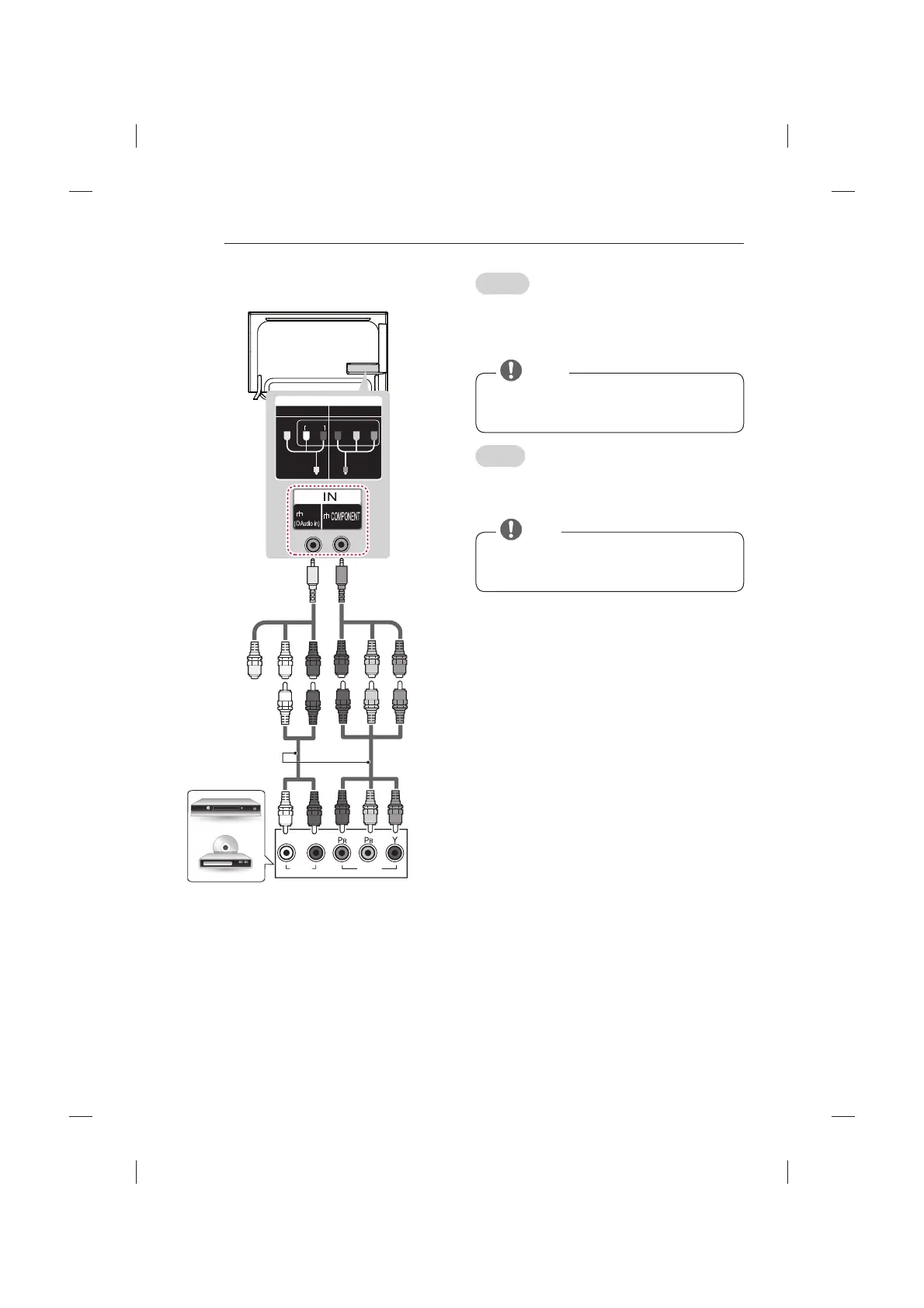

MAKING CONNECTIONS
Component Connection
VIDEO
AUDIO
L R
IN
COMPONENT
YP B AUDIO
AV2
P R VIDEO
AV2
DVD / Blu-Ray
/ HD Cable Box
GREEN
GREEN
GREEN
BLUE BLUE
BLUE
RED RED
RED
RED RED
RED
WHITE WHITE
WHITE
YELLOW
(Use the composite
gender cable provided.)
(*Not Provided)
GREEN
YELLOW
(Use the component
gender cable provided.)
English
Transmits analogue video and audio signals from an
external device to the TV. Connect the external device
and the TV with a component cable(or component
gender cable) as shown.
y
If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
NOTE
Türkçe
+DULFLFLKD]GDQ79¶\HDQDORJYLGHRYHVHVVLQ\DOOHUL
J|QGHULU+DULFLD\JÕWLOH79\LJ|VWHULOGL÷LJLELNRPSR-
QHQWNDEORVX\ODED÷OD\ÕQ
y
.DEORODUÕQ\DQOÕúWDNÕOPDVÕJ|UQWQQVL\DK
EH\D]YH\DER]XNUHQNOHUOHJ|VWHULOPHVLQHQHGHQ
olabilir.
NOT
