20
ENG
ENGLISH

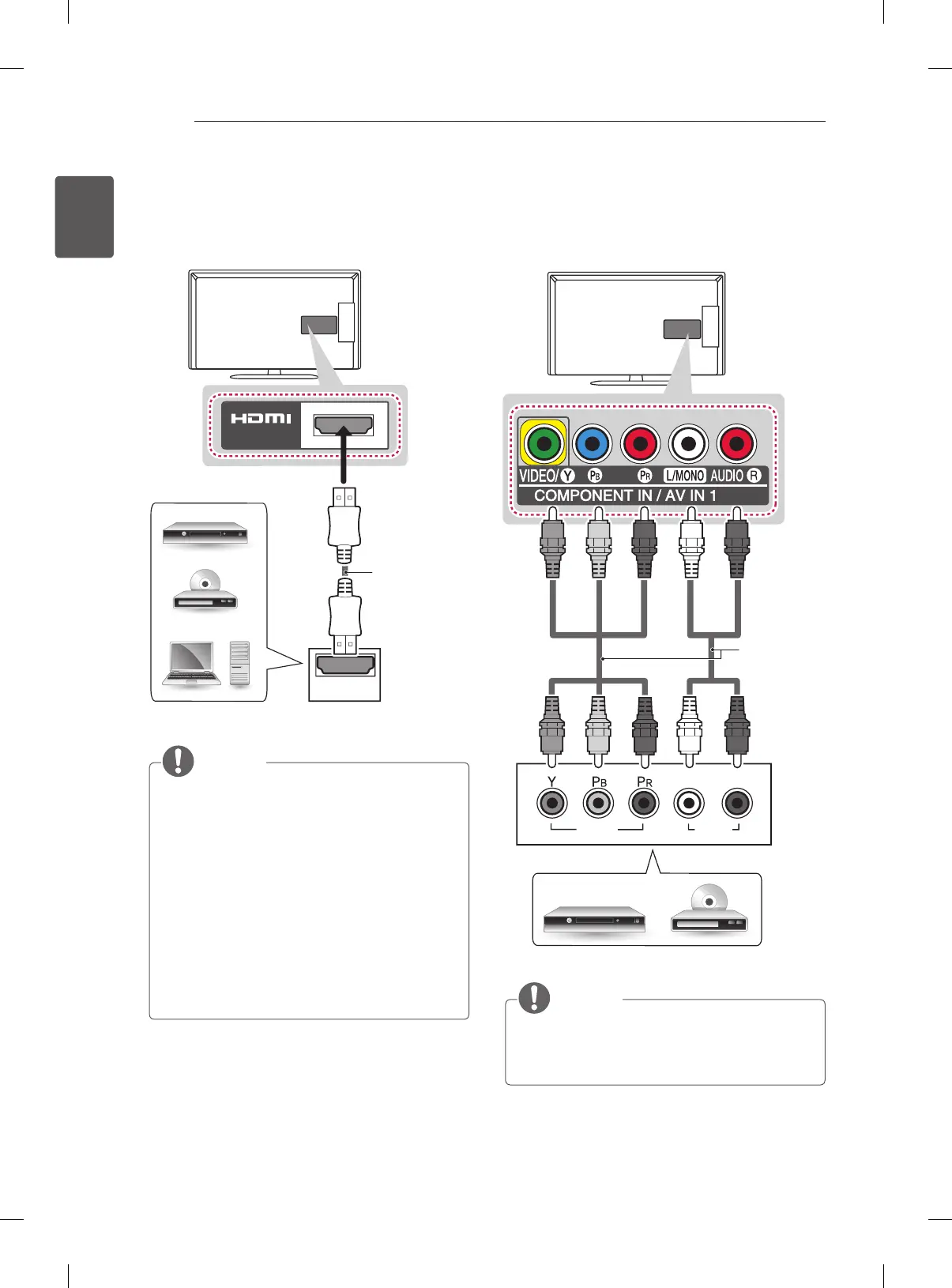

MAKING CONNECTIONS
HDMI connection
Transmits the digital video and audio signals from an
external device to the TV. Connect the external device
and the TV with the HDMI cable as shown.
(*Not Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
NOTE
It is recommended to use the TV with the HDMI
connection for the best image quality.
Use the latest High Speed HDMI™ Cable with
CEC (Customer Electronics Control) function.
High Speed HDMI™ Cables are tested to carry
an HD signal up to 1080p and higher.
Supported HDMI Audio format : Dolby
Digital, DTS, PCM (Up to 192 kHz,
32k/44.1k/48k/88k/96k/176k/192k)(Only LA61**,
LN565*)
Supported HDMI Audio format : Dolby Digital,
PCM (Up to 192 kHz, 32k/44.1k/48k/88k/96k/17
6k/192k) *DTS Not Supported. (Only LN54**)
If you use DVI to HDMI cable for PC, you have
to use external speaker for PC audio sound.
Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with a component cable as shown.
DVD/ Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE
BLUE
RED
RED
RED
RED
WHITE
WHITE
(*Not Provided)
NOTE
If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
