LG 50PC51 User Manual

- 7 -

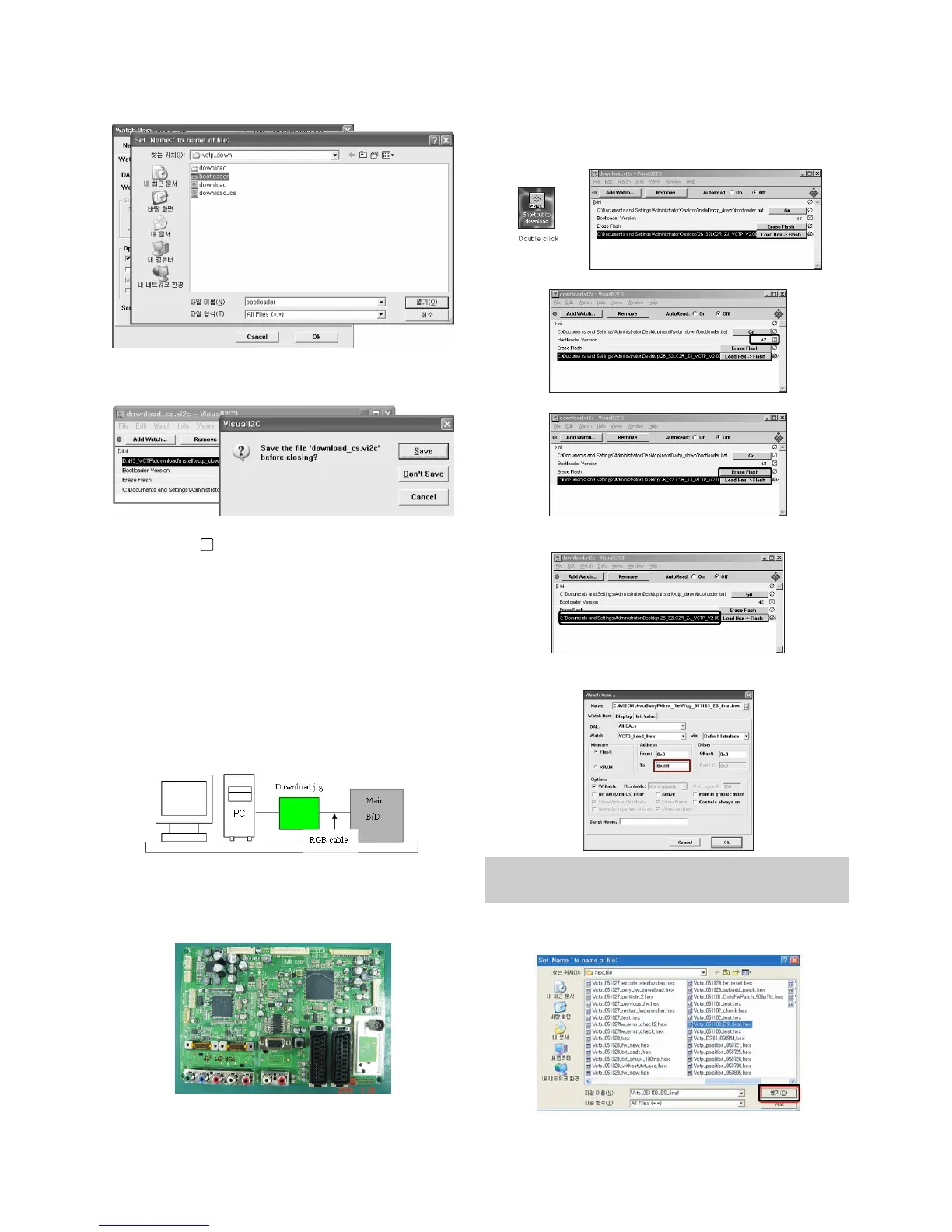

=> Select the "Bootloader.bat" file.
(install > VCTP_download > Bootloader)
=> Push "OK".
=>
Finish the program, after saving the file "download_cs.vi2c".
(if you click , the massage appears automatically)
5. S/W program download
5-1. Profile
: This is for downloading the s/w to the flash memory of the
vctp(IC500)
5-2. Required Test Equipment
(1) PC.
(2) Visual IIC program.
(3) Download jig.
5-3. Connection structure
6. Download method
6-1. Download method 1 (PCB Ass’y)
(1) Connect the download jig to D-sub jack.
(2) Execute ‘Download.vi2c’ program in PC, then a main
window will be opened.
(3)
Double click the blue box and confirm "Bootloader Version" as 42.
(4) Click the "Erase Flash" button.
(5) Double click the download file low, then "edit" window will
be opened.
(6) Click the choice button in the “edit window”, then “file
choice window” will be opened.
(7) Choose the Hex file in folder and execute downloading
with click " open" button.
x
You must verify the words of “0xfffff” in the black box of figure.
(In case of H3 Service it is 0x7ffff : If you make H4 service after
the H3 service, there could be some problem)

LG 50PC51 Specifications

General

3D	No
Depth	88 mm
Height	827.2 mm
Equalizer	Yes
Pixel pitch	- mm
Product color	Black
RMS rated power	- W
Display diagonal	50 \
Depth (with stand)	370 mm
Display brightness	1500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	Plasma
Power requirements	100-240V, 50/60Hz
Width (with stand)	1242 mm
Height (with stand)	887.6 mm
Weight (with stand)	39300 g
SCART ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Contrast ratio (typical)	-
Equalizer bands quantity	5
Digital vertical frequency	100 Hz
Display viewable area (HxV)	1106 x 622 mm
Power consumption (standby)	1 W
Power consumption (typical)	450 W
