MAKING CONNECTIONS
Component Connection

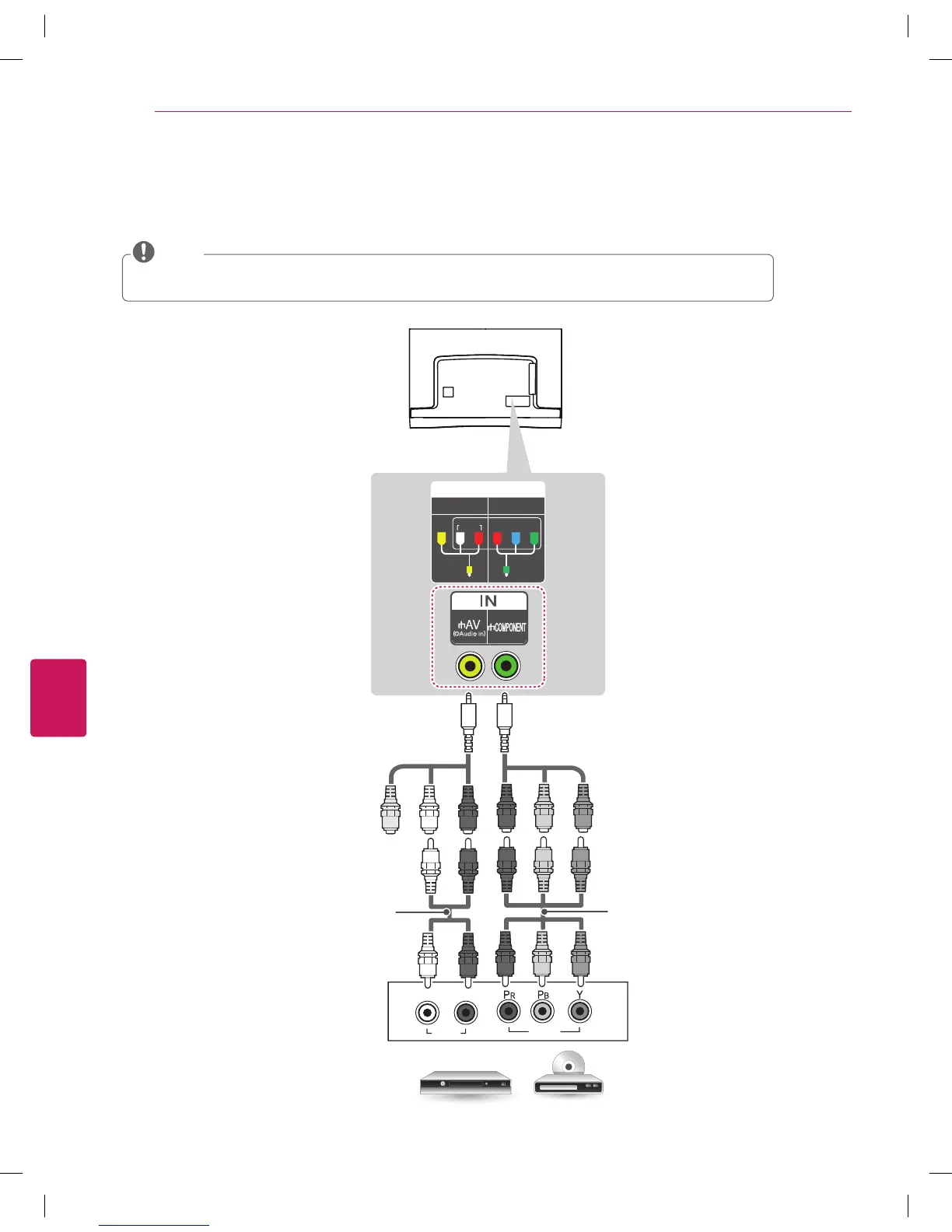

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component
cable as shown in the following illustration.
y
If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.
y
Check to ensure the cables are matched with the corresponding color connection.
NOTE
VIDEO
AUDIO
L R
IN
COMPONENT AV
VIDEO AUDIO Y P B P R
DVD / Blu-Ray / HD Cable Box
GREEN BLUE RED RED
WHITE
GREEN
YELLOW
YELLOW
WHITE
RED
GREEN
BLUE RED
WHITE RED GREEN BLUE RED
(Use the composite video cable provided.) (Use the component video cable provided.)
(*Not Provided)
(*Not Provided)
