LG 55LB6300 User Manual

ENGENGLISH
25
MAKING CONNECTIONS
Component Connection

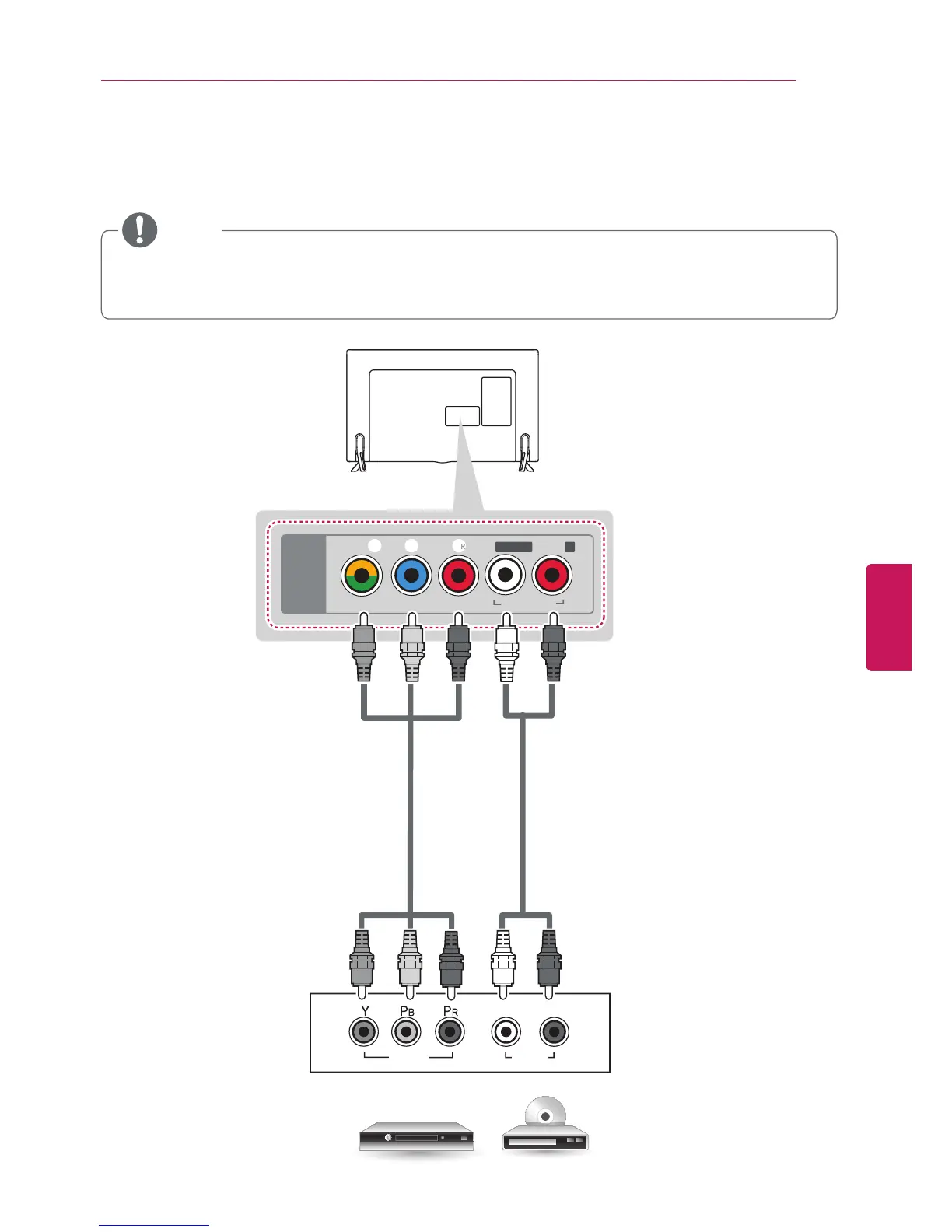

Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with a component cable as shown in the following illustration.
y
If cables are installed incorrectly, it could cause the image to display in black and white or with
distorted color.
y
Check to ensure the cables are matched with the corresponding color connection.
NOTE
AUDIO
VIDEO
LR
P
C
-AUDI
O
I
N
L/MONO
AU
DI
O
R
COMPONENT IN
/AV IN
VIDE
O
/
Y
P
P
B
B
P
P
R
R
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE
BLUE
RED
RED
RED
RED
WHITE
WHITE

LG 55LB6300 Specifications

General

Screen Type	led
Wall Mount	400mm x 400mm
Screen Size	54.63 inches, 55 inches
Refresh Rate	120hz
Speakers Output	20 watts
Number Of Speakers	2
USB Ports	1
Headphones Output	yes
Digital Optical Audio Outputs	1
Analog Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
Remote Control	magic
3D	no
Power Consumption	81 kilowatt hours
Depth with Stand	8.88 inches
Height with Stand	30.5 inches
Width with Stand	48.88 inches
Net Weight with Stand	41 pounds
Depth without Stand	2.25 inches
Height without Stand	28.5 inches
Net Weight without Stand	40.3 pounds
