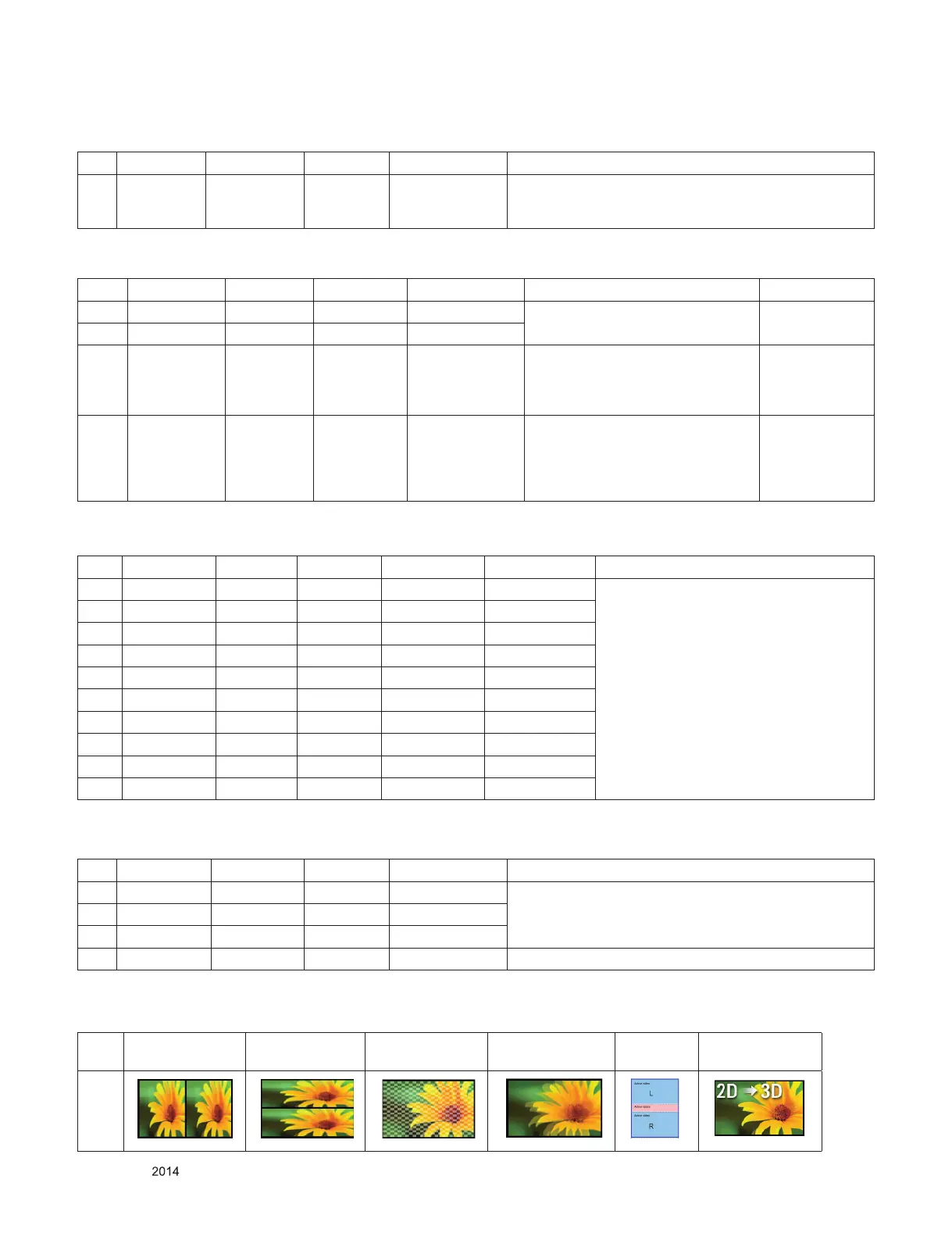

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock Proposed 3D input proposed mode
1 1280*720 45.00 60.00 74.25 HDTV 720P
2D to 3D, Side by Side(Half), Top & Bottom
2 1280*720 37.500 50 74.25 HDTV 720P
3 1920*1080 33.75 60.00 74.25 HDTV 1080I
4 1920*1080 28.125 50.00 74.25 HDTV 1080I
5 1920*1080 27.00 24.00 74.25 HDTV 1080P
6 1920*1080 28.12 25 74.25 HDTV 1080P
7 1920*1080 33.75 30.00 74.25 HDTV 1080P
8 1920*1080 67.50 60.00 148.5 HDTV 1080P
9 1920*1080 56.250 50 148.5 HDTV 1080P
10 Others - - - SDTV
7.8. Component Input(3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1024*768 48.36 60 65
2D to 3D, Side by Side(half)
Top & Bottom
HDTV 768P
2 1360*768 47.71 60 85.5
3 1920*1080 67.500 60 148.50
2D to 3D, Side by Side(half), Top
& Bottom, Checker Board, Single
Frame Sequential, Row Interleaving,
Column Interleaving
HDTV 1080P
4 Others - - -
2D to 3D,
Side by Side(half)
Top & Bottom
640*350
720*400
640*480
800*600
1152*864
7.7. HDMI-PC Input (3D supported mode manually)
* USB, DNLA Input (3D supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1080P 33.75 30 -
2D to 3D, Side by Side(Half)*,Top & Bottom*,Checker
Board*, Row Interleaving, Column Interleaving(Photo : Side
by Side(Half), Top&Bottom)
7.10. 3D Input mode
No. Side by Side Top & Bottom Checker board
Single Frame
Sequential
Frame
Packing
2D to 3D
1
ii.
iii.
iv.
v.
vi.
7.9. Miracast, Widi (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1024X768p - 30 / 60 -
2D to 3D, Side by Side(Half), Top & Bottom2. 1280x720p - 30 / 60 -
3 1920X1080p 30 / 60
4 Others - 2D to 3D
