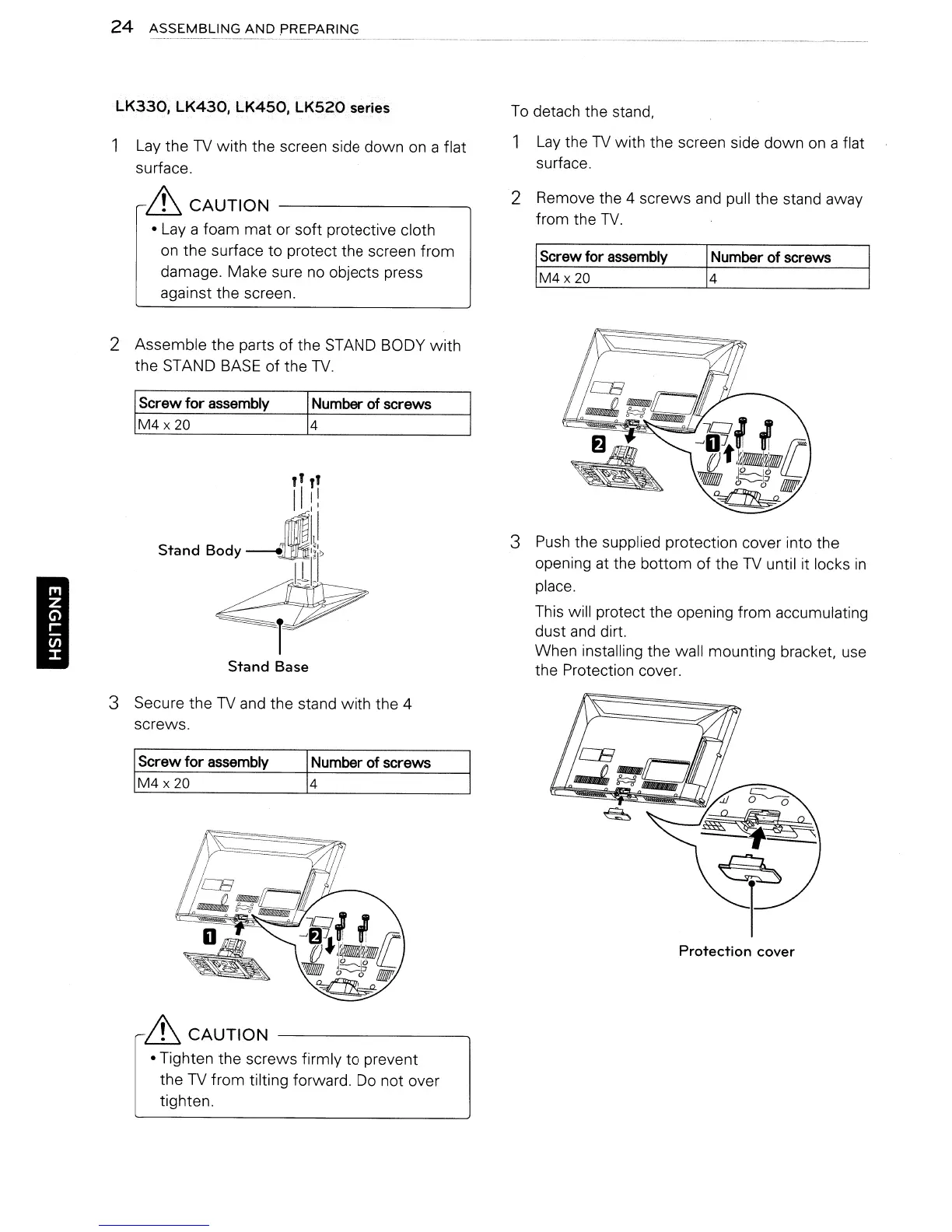

ASSEMBLING
AND
PREPARING
-------
---
----
---
2 Remove the 4 screws and pull the stand away
from the
TV.
To
detach the stand,
1
Lay
the
TV
with the screen side down
on
a flat
surface.
LK330,
LK430, LK450,
LK520
series
1
Lay
the
TV
with the screen side down
on
a flat
surface.
&
CAUTION
•
Lay
a foam mat or soft protective cloth
on
the surface to protect the screen from
damage. Make sure no objects press
against the screen.
Screw
for
assembly
M4
x
20
Number
of
screws
4
2 Assemble the parts of the STAND BODY
with
the STAND
BASE
of the
TV.
3 Secure the
TV
and the stand with the 4
screws.
I
Screw for
assembly
M4
x20
Stand
Base
Screw for
assembly
M4
x 20
Number
of
screws
4
Number
of
screws
4
3
Push
the supplied protection cover into the
opening at the bottom of the
TV
until it locks
in
place.
This will protect the opening from accumulating
dust
and
dirt.
When installing the wall mounting bracket, use
the Protection cover.
Protection cover
&
CAUTION
• Tighten the screws firmly to prevent
the
TV
from tilting forward.
Do
not over
tighten.
To Next Page
