ASSEMBLING AND PREPARING

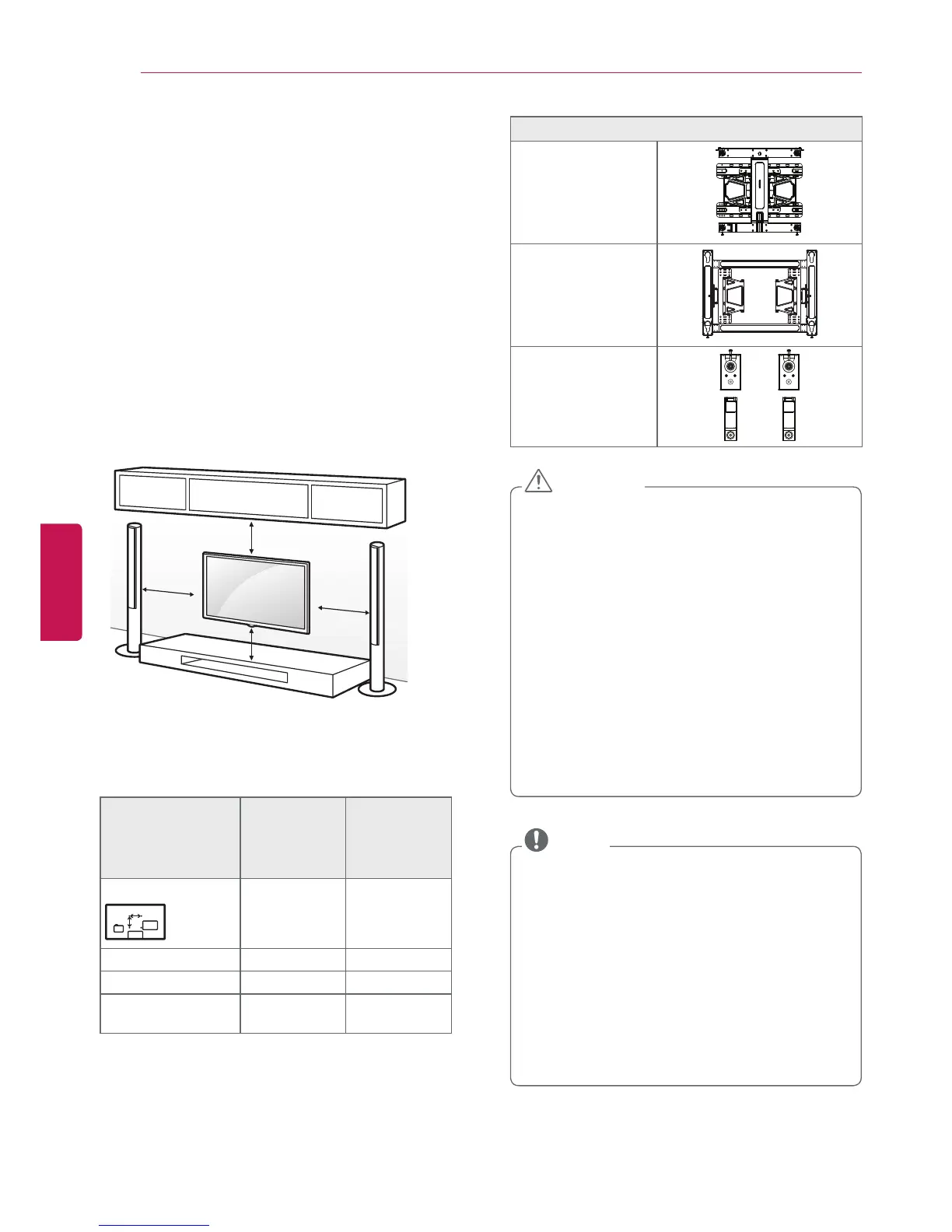

Mounting on a Wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the
wall mount bracket at the rear of the TV.
Install the wall mount bracket on a solid wall
perpendicular to the floor. If you are attaching
the TV to other building materials, please
contact qualified personnel to install the wall
mount. Detailed instructions will be included
with the wall mount. We recommend that you
use an LG brand wall mount. When you do not
use LG’s wall mount bracket, please use a wall
mount bracket where the device is adequately
secured to the wall with enough space to allow
connectivity to external devices.
10 cm
10 cm
10 cm
10 cm
(4 inches)
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions
for the wall mount kits are described in the
following table.
Model
49/55UB8500
55UB9500
60UB8500
65UB9300
65UB9500
65UC9700
VESA (A x B)
A
B
400 x 400 400 x 400
Standard screw M6 M6
Number of screws 44
Wall mount bracket
(optional)
LSW440B
MSW240
LSW440B
Wall mount bracket (optional)
LSW440B
LSW640B
MSW240
f Disconnect the power before moving or
installing the TV. Otherwise electric shock
may occur.
f If you install the TV on a ceiling or slanted
wall, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel. When using a third-party wall
mount, it is not covered by the warranty.
f Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
f Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
CAUTION
f Use the screws that are listed in the VESA
standard screw specifications.
f The wall mount kit includes an installation
manual and necessary parts.
f The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
f The length of screws may differ depending
upon the wall mount. Make sure to use the
proper length.
f For more information, refer to the manual
supplied with the wall mount.
